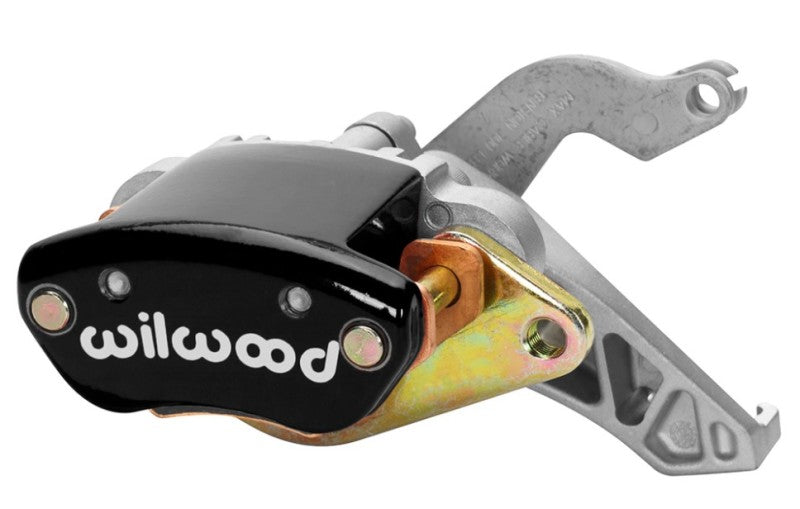

Wilwood’s MC4 Mechanical Parking Brake Caliper is a multi-use, cable operated brake caliper that combines high output performance with simplicity in design and construction, and is the perfect solution for vehicle applications requiring a separate, mechanically actuated parking brake caliper. Built to accept rotors that are .810” thick, with 11.00” - 12.88” diameter range, the MC4 combines an efficient die cast body with a forged billet anvil for superior strength under load, yet is lightweight at only 3.30 (2.95 without pads) pounds. Supplied with each caliper are our Composite Metallic (CM) high-friction, high static-hold brake pads, and are pre-fitted with noise cancelling shields.
The Wilwood MC4 Mechanical Parking Brake Caliper (Part Number: 120-12070-BK) offers a reliable and high-performance solution for vehicles requiring a dedicated mechanically actuated parking brake system. Designed with a durable die-cast body and reinforced with a forged billet anvil, this caliper provides exceptional strength and load-bearing capacity while maintaining a lightweight profile at only 3.30 pounds. It is compatible with rotors measuring approximately 11.00 to 12.88 inches in diameter and accepting rotors that are .810 inches thick, making it suitable for a variety of vehicle setups. Equipped with Wilwood’s high-friction, high-static-hold Composite Metallic (CM) brake pads, the MC4 caliper ensures effective parking brake performance with excellent holding power. The caliper comes pre-fitted with noise-canceling shields, reducing vibration and noise for a smoother operation. Its cable-operated design simplifies installation and maintenance, providing a straightforward solution for applications requiring a mechanically actuated parking brake system. This caliper features a 1.19-inch piston and a sleek black finish with Wilwood’s logo, enhancing both the functionality and aesthetic of your vehicle's braking system. Whether used in custom builds, off-road vehicles, or racing applications, the MC4 caliper delivers dependable performance and durability. It’s an ideal choice for enthusiasts seeking a robust, easy-to-install parking brake caliper that combines performance with simplicity of design.
Features:
Mechanical parking brake caliper: cable-operated for reliable engagement
High-strength construction: die-cast body with forged billet anvil for durability
Lightweight design: weighs only 3.30 pounds, ideal for performance applications
Rotor compatibility: accepts rotors 11.00 to 12.88 inches in diameter and .810 inches thick
High-friction brake pads: supplied with Wilwood’s Composite Metallic high-static-hold pads
Pre-fitted noise-canceling shields: reduces vibration and noise during operation
Piston size: 1.19 inches for effective clamping force
Sleek black finish with Wilwood logo: enhances appearance and corrosion resistance
Air Freight Prohibited: false
Not Carb Approved: false
Ltl Freight Required: false
Prop 65: Unknown
Part Type: automotive
Epa: N/A
Carb Acknowledgement Required: false
Regular Stock: t
Units Per Sku: 1
