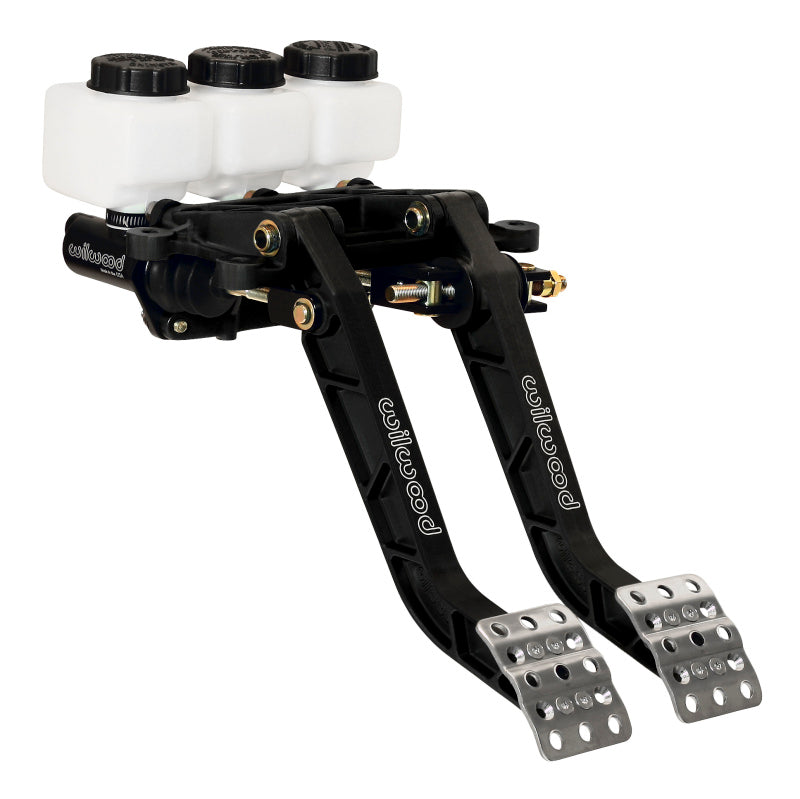

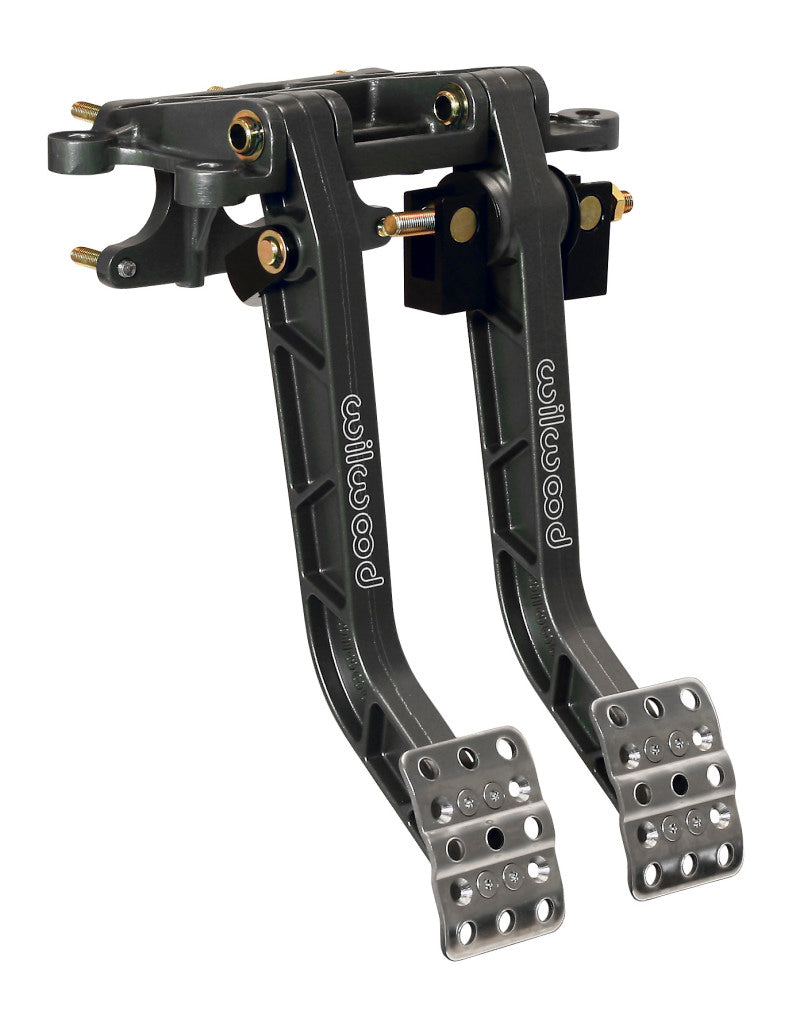

Wilwood Adjustable Dual Pedal Assembly with Forward Swing Mount - Brake and Clutch Combination, Part 340-11295

This swinging mount pedal assembly combines the brake and clutch pedals in one unit with the master cylinders in a forward position outside the firewall. It features a lightweight aluminum frame, with high strength reinforced I-Beam style forged 6.25:1 ratio pedal arms. The non-skid waffled pedal pads can be laterally adjusted for driver preference or clearance as necessary. The balance bar incorporates a positive detent stop every full turn to maintain adjustment position and driver awareness. A pin and clevis pushrod attachment system provides highest possible degree of misalignment angle for bind free operation through the entire range of travel. The balance bar can be locked in place with the included jam nut, or used with an optional remote cable for quick on-track adjustments. This pedal accepts any Wilwood vertical mount flange single outlet master cylinders that are ordered separately by style and bore size.

The Wilwood adjustable dual pedal assembly offers a versatile solution for automotive enthusiasts seeking a reliable and customizable brake and clutch system. Featuring a lightweight aluminum frame, this unit combines both functions into a single, space-efficient design, with master cylinders positioned outside the firewall for ease of access and maintenance. The high-strength reinforced I-beam style pedal arms provide durability and precision, with a 6.25:1 ratio that ensures responsive pedal feel. The non-skid waffled pedal pads are designed for safe operation and can be laterally adjusted to accommodate driver preferences or clearance needs, enhancing comfort and control during driving.
The balance bar incorporates a positive detent stop every full turn, allowing drivers to maintain their preferred adjustment position effortlessly, while the pin and clevis pushrod attachment system offers maximum misalignment angle, ensuring bind-free operation throughout the pedal travel. This feature minimizes stress on components and promotes smooth pedal engagement.
For quick on-track adjustments, the balance bar can be locked with the included jam nut or used with an optional remote cable, providing flexibility for racing applications or spirited driving. This assembly is compatible with any Wilwood vertical mount flange single outlet master cylinders, which are sold separately by style and bore size, allowing for customized setup options. Whether upgrading your vehicle or building a custom system, this pedal assembly delivers performance, adjustability, and durability in a compact package suitable for a variety of automotive projects.

Features:

• Lightweight aluminum frame for strength and reduced weight

• High-strength reinforced I-beam style pedal arms with 6.25:1 ratio for responsive pedal feel

• Non-skid waffled pedal pads for safety and comfort

• Lateral adjustment capability for driver preference and clearance

• Positive detent stops on the balance bar for secure adjustment positioning

• Pin and clevis pushrod attachment system for high misalignment angle and bind-free operation

• Balance bar lockable with included jam nut or adjustable via remote cable

• Compatibility with Wilwood vertical mount flange single outlet master cylinders (sold separately)

Air Freight Prohibited: false
Not Carb Approved: false
Ltl Freight Required: false
Prop 65: Unknown
Part Type: automotive
Epa: N/A
Carb Acknowledgement Required: false
Regular Stock: t
Units Per Sku: 1
