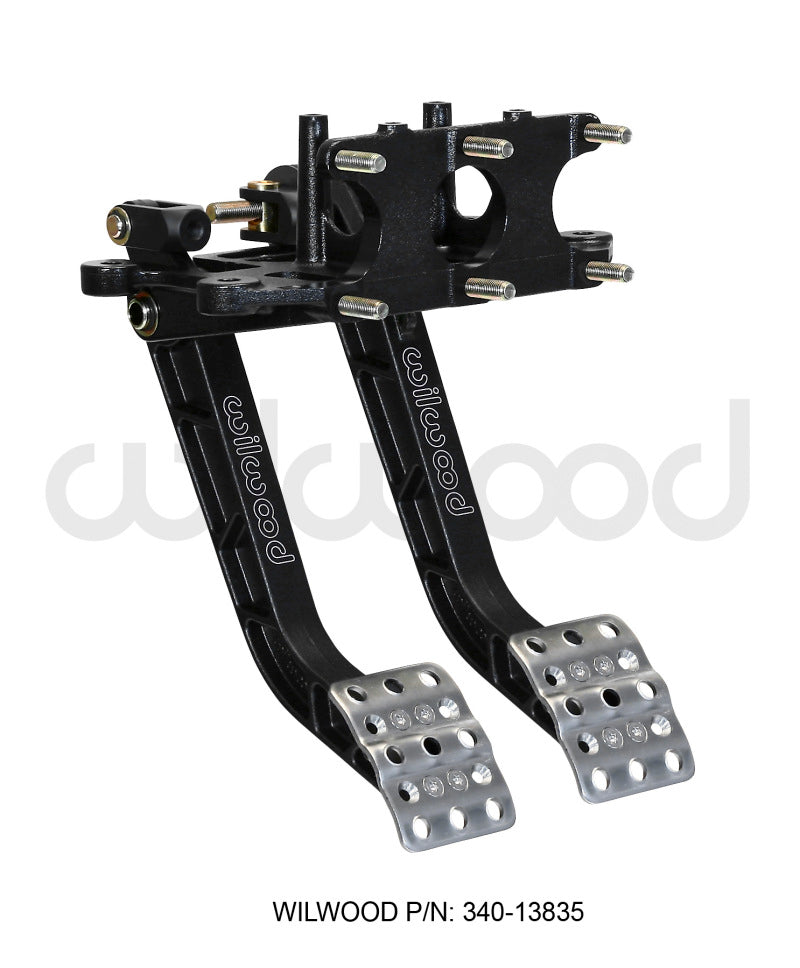

Wilwood Adjustable Dual Pedal Assembly for Brake and Clutch with Swing Mount - Part #340-13835

This swinging mount pedal assembly combines the brake and clutch pedals in one unit with the master cylinders in a reverse position inside the firewall. It features a lightweight aluminum frame, with high strength reinforced I-Beam style forged 5.1:1 ratio pedal arms. The non-skid waffled pedal pads can be laterally adjusted for driver preference or clearance as necessary. The balance bar incorporates a positive detent stop every full turn to maintain adjustment position and driver awareness. A pin and clevis pushrod attachment system provides highest possible degree of misalignment angle for bind free operation through the entire range of travel. The balance bar can be locked in place with the included jam nut, or used with an optional remote cable for quick on-track adjustments. This pedal accepts any Wilwood vertical mount flange single outlet master cylinders that are ordered separately by style and bore size.

The Wilwood Adjustable Dual Pedal Assembly combines the brake and clutch pedals into a single, integrated unit designed for high-performance automotive applications. Featuring a lightweight aluminum frame, this assembly ensures durability and minimal weight addition to your vehicle. The high-strength reinforced I-beam style forged pedal arms, with a 5.1:1 ratio, deliver precise pedal feel and responsiveness essential for both street and track use. The non-skid waffled pedal pads can be laterally adjusted to suit driver preferences or to optimize clearance, providing customizable comfort and control. The master cylinders are mounted in a reverse position inside the firewall, facilitating versatile installation options and streamlined pedal operation. The balance bar incorporates a positive detent stop every full turn, maintaining adjustment positions and enhancing driver awareness during intense driving conditions. The pin and clevis pushrod attachment system offers maximum misalignment angle, ensuring bind-free operation throughout the pedal’s travel range. For quick on-track adjustments, the balance bar can be easily locked with the included jam nut or adjusted remotely via an optional cable system, allowing for rapid tuning without tools. This pedal assembly is compatible with any Wilwood vertical mount flange single outlet master cylinders, which are available separately by style and bore size, providing flexibility for various braking needs. Whether upgrading an existing setup or building a custom performance system, this Wilwood pedal assembly offers precision, durability, and adaptability to meet demanding automotive applications.

Features:

• Lightweight aluminum frame for durability and reduced weight

• High-strength reinforced I-beam style forged pedal arms with a 5.1:1 ratio for optimal pedal feel

• Non-skid waffled pedal pads that can be laterally adjusted for driver comfort and clearance

• Master cylinders mounted in a reverse position inside the firewall for versatile installation

• Balance bar with positive detent stop every full turn for consistent adjustment

• Pin and clevis pushrod system providing maximum misalignment angle for bind-free movement

• Optional remote cable for quick on-track pedal adjustments

• Compatible with Wilwood vertical mount flange single outlet master cylinders

Air Freight Prohibited: false
Not Carb Approved: false
Ltl Freight Required: false
Prop 65: Unknown
Part Type: automotive
Epa: N/A
Carb Acknowledgement Required: false
Regular Stock: t
Units Per Sku: 1
