Wilwood Adjustable Brake Pedal with Dual Master Cylinders - Rev. Swing Mount, 6.25:1 Ratio

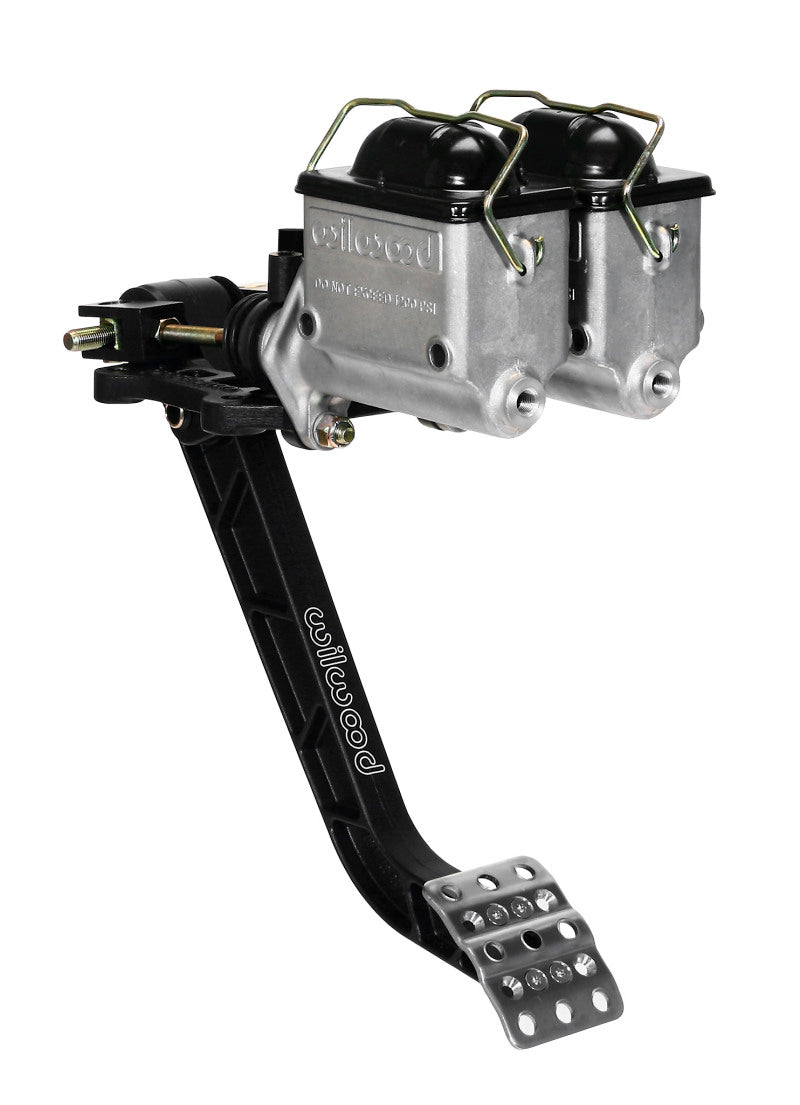

This swinging mount pedal assembly mounts two single outlet brake master cylinders in a reverse position inside the firewall. It features a lightweight aluminum frame, with a high strength reinforced I-Beam style forged 6.25:1 ratio pedal arm. The non-skid waffled pedal pad can be laterally adjusted for driver preference or clearance as necessary. The balance bar incorporates a positive detent stop every full turn to maintain adjustment position and driver awareness. A pin and clevis pushrod attachment system provides highest possible degree of misalignment angle for bind free operation through the entire range of travel. The balance bar can be locked in place with the included jam nut, or used with an optional remote cable for quick on-track adjustments. This pedal accepts any Wilwood vertical mount flange single outlet master cylinders that are ordered separately by style and bore size

The Wilwood Part Number 340-12509 is a versatile and high-performance brake pedal assembly designed for racing and custom automotive applications. Crafted with a lightweight aluminum frame, this pedal assembly is engineered for durability and precise control in demanding environments. Its swing mount design accommodates two single outlet brake master cylinders mounted in a reverse position inside the firewall, providing efficient space utilization and ease of installation. The high-strength forged I-beam style pedal arm offers a 6.25:1 ratio, ensuring optimal leverage and pedal feel for the driver.
The non-skid waffled pedal pad can be laterally adjusted to suit driver preferences or clearance requirements, enhancing comfort and control during operation. An integrated balance bar features a positive detent stop at each full turn, maintaining consistent adjustment positions and improving driver awareness of pedal engagement. The pin and clevis pushrod attachment system allows for a high degree of misalignment, resulting in bind-free operation across the entire range of pedal travel. This design ensures smooth, reliable brake engagement and reduces pedal effort.
The pedal assembly includes a lockable balance bar, which can be secured with the provided jam nut or adapted with an optional remote cable for quick adjustments during on-track events. Compatibility with any Wilwood vertical mount flange single outlet master cylinders makes this assembly adaptable to various brake configurations. Whether for racing, hot rodding, or custom builds, this adjustable pedal provides reliable performance, ease of adjustment, and a robust construction suitable for high-stress applications.

Features:

• Lightweight aluminum frame for durability and reduced weight

• High-strength forged I-beam style pedal arm with 6.25:1 ratio for optimal leverage

• Lateral adjustment of pedal pad for driver preference and clearance

• Balance bar with positive detent stop at each full turn for consistent adjustment

• Pin and clevis pushrod system allowing high misalignment angles for bind-free operation

• Lockable balance bar with optional remote cable for quick on-track adjustments

• Compatible with Wilwood vertical mount flange single outlet master cylinders

Air Freight Prohibited: false
Not Carb Approved: false
Ltl Freight Required: false
Prop 65: Unknown
Part Type: automotive
Epa: N/A
Carb Acknowledgement Required: false
Regular Stock: t
Units Per Sku: 1
