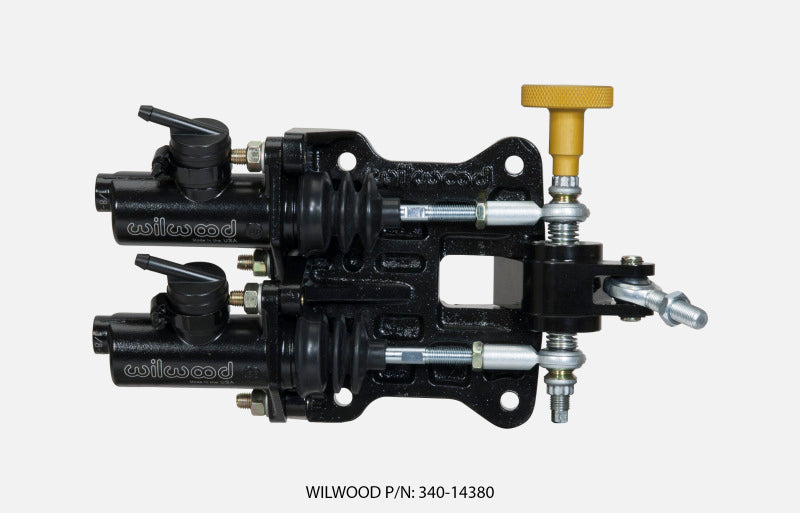

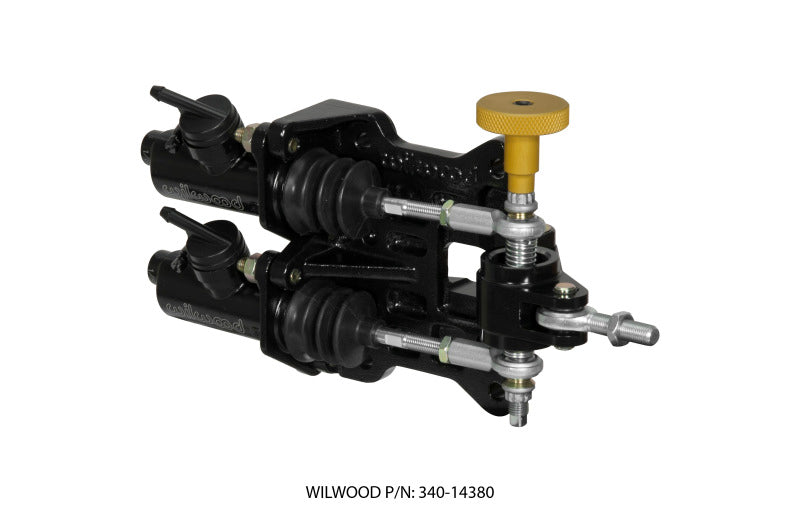

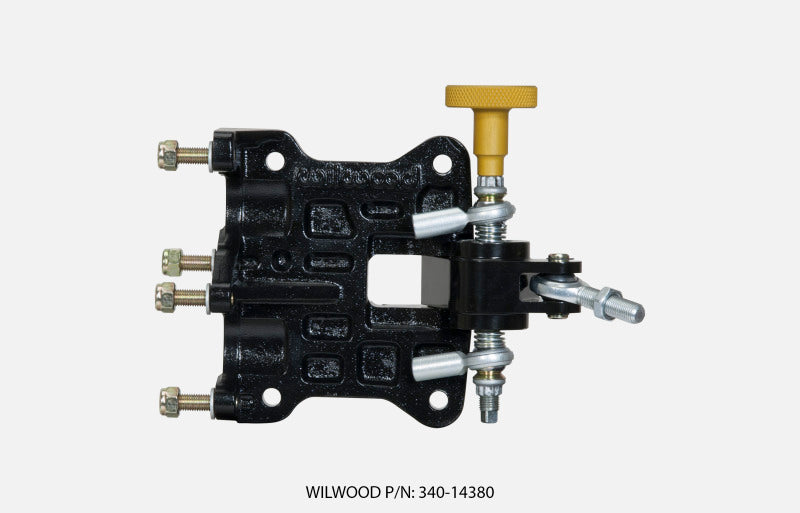

Wilwood 60 Degree Master Cylinder Mount and Tru-Bar Assembly - Part Number 340-14380

This Tru-bar unit is ideal for Dirt Modifieds, Champ Cars, Sprint Cars, Midgets, or any application where the master cylinders must be mounted in a remote location from the pedal. To accommodate fitment in tight space locations, the master cylinders are mounted at 60 degrees from the pedal base for use with remote fill fluid reservoirs. This unit features a high leverage, machined billet pivot arm that multiplies input force at a ratio of 1.48:1 and when mounted within the driver’s reach, the included adjustment knob can be used for quick and easy on-track bias adjustments. Tru-Bar pedals utilize a fixed trunnion bearing in the pedal arm, with spherical rod-end bearing pushrod attachments. They provide ultimate precision, control, and adjustment of the brake bias on race prepped vehicles. A stronger and larger diameter 7/16-20 bar provides quicker adjustment and features a shouldered 3/8” diameter end to attach the standard remote adjuster cable to deliver professional, championship caliber performance. Wilwood’s Tru-Bar balance bar utilizes a fixed trunnion bearing in the pedal arm with spherical rod ends at the pushrod connections. It provides the ultimate in precision bias adjustment, control, and fine tuning on race prepped vehicles equipped with twin brake Master cylinder systems and proportionately sized calipers.

The Wilwood 60 Degree Master Cylinder Mount and Tru-Bar Assembly (Part Number 340-14380) is designed for high-performance racing applications such as Dirt Modifieds, Champ Cars, Sprint Cars, and Midgets where remote master cylinder mounting is essential. This system allows for optimal space utilization by positioning the master cylinders at a 60-degree angle from the pedal base, making it suitable for tight installation environments. The assembly includes a machined billet pivot arm with high leverage, providing a force multiplication ratio of 1.48:1 to enhance braking response and control.
The integrated adjustment knob, when mounted within reach of the driver, enables quick and precise on-track bias adjustments, giving drivers the ability to fine-tune brake balance effortlessly during races. The system’s design incorporates a fixed trunnion bearing in the pedal arm coupled with spherical rod-end bearings at the pushrod connections, ensuring ultimate precision and control for race-prepped vehicles.
A robust 7/16-20 balance bar with a shouldered 3/8-inch end allows for rapid adjustments and reliable remote cable attachment. This professional-grade component delivers excellent performance for vehicles equipped with twin master cylinders and proportionally sized calipers, providing the driver with the ability to achieve the ideal brake bias for different track conditions. The assembly’s durable construction and thoughtful design make it an essential upgrade for serious racers seeking adjustable, reliable brake control. The Wilwood Tru-Bar system is engineered for competitive racing environments where precise brake management is crucial for optimal performance and safety.

Features:

• Remote master cylinder mounting at 60 degrees for tight space applications

• Machined billet pivot arm with a 1.48:1 leverage ratio for increased braking force

• Quick-adjustment knob for on-track brake bias tuning

• Fixed trunnion bearing with spherical rod-end pushrod attachments for precision control

• Heavy-duty 7/16-20 balance bar with shouldered 3/8-inch end for easy remote cable connection

• Ideal for race vehicles with twin master cylinders and proportional calipers

• Durable construction designed for professional racing performance

Air Freight Prohibited: false
Not Carb Approved: false
Ltl Freight Required: false
Prop 65: Unknown
Part Type: automotive
Epa: N/A
Clearance Item: t
Carb Acknowledgement Required: false
Regular Stock: false
Units Per Sku: 1
