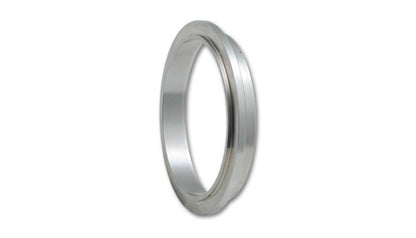

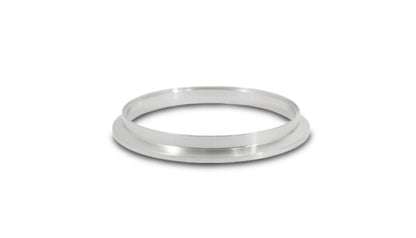

Vibrant Stainless Steel V-Band Turbo Outlet Flange for Garrett GTX5533R Turbo to 4.5-inch OD Tubing

Vibrant Performance stainless steel turbo flanges are constructed entirely from T304 stainless steel and are designed with the turbo fabricator in mind. Vibrant Performance turbo flanges are available for all of the industry leading turbo chargers and are offered for turbo inlet, external Wastegate, and turbo discharge applications. Standard 4-bolt, V-Band, divided, transition, complex multi bolt and block off turbo flanges are all available. Turbo Outlet Flange; 3.9MM Apex W; 14MM Thickness; 131MM Flange OD; 2MM TRD; 111.3MM Port ID; 4 in. Tube Recess ID; For Garret GTX5533R SFI Turbo; 304 Stainless Steel; V-Band; No registration ring

• Works w/GT28/GT30/GT35 Turbine Housing
• 1 Year Limited Warranty
• Stainless Steel

The Vibrant Performance V-Band Turbo Outlet Flange is engineered for high-performance automotive applications, specifically designed to fit Garrett GTX5533R SFI turbos. Crafted from durable T304 stainless steel, this flange offers excellent corrosion resistance and longevity under demanding conditions. Its precise construction ensures a secure and leak-free connection between your turbocharger and the exhaust system, enhancing overall performance and reliability. This flange features a 3.9mm apex wall thickness and a 14mm flange thickness, providing a robust and stable mounting surface. The flange boasts a 131mm outer diameter and an internal port ID of 111.3mm, accommodating a 4-inch tube recess ID for seamless integration into your exhaust setup. The V-Band design allows quick installation and removal, making maintenance and upgrades more straightforward. Compatible with a variety of turbine housings including GT28, GT30, and GT35, this flange is an ideal choice for enthusiasts seeking a high-quality, versatile component for turbocharging systems. The flange’s modular design, available in standard 4-bolt, V-Band, divided, transition, complex multi-bolt, and block-off configurations, offers flexibility for custom exhaust setups. Backed by a one-year limited warranty, this flange provides both performance and peace of mind. It is suitable for applications requiring reliable, high-temperature connections in turbocharged engines, ensuring optimal airflow and performance. Whether upgrading or replacing, this Vibrant stainless steel V-Band turbo outlet flange is a critical component for serious automotive projects aiming for maximum efficiency and durability.

Features:

• Constructed from high-quality T304 stainless steel for corrosion resistance and durability

• V-Band design for quick installation and removal, facilitating maintenance

• Compatible with Garrett GTX5533R SFI turbos and various turbine housings including GT28, GT30, and GT35

• Robust construction with 3.9mm apex wall thickness and 14mm flange thickness for stability

• Designed for 4-inch OD tubing with a 111.3mm port ID and 4-inch tube recess ID

• Available in multiple configurations including standard 4-bolt, V-Band, divided, and transition flanges

• Engineered for high-performance turbo systems, providing a secure, leak-free connection

• Backed by a one-year limited warranty for added peace of mind

Air Freight Prohibited: false
Not Carb Approved: false
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: N/A
Carb Acknowledgement Required: false
Regular Stock: t
Units Per Sku: 1
