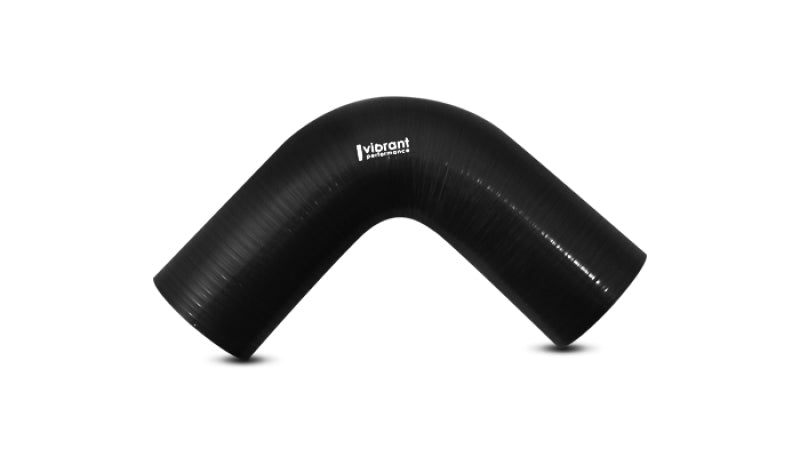

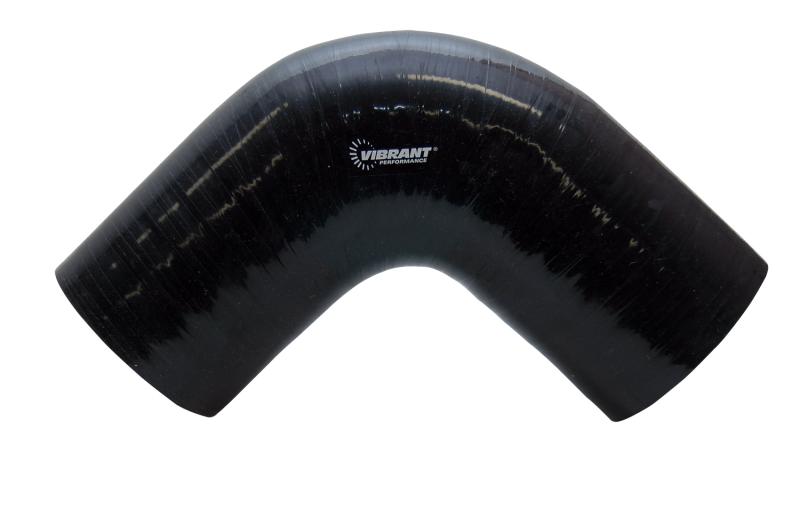

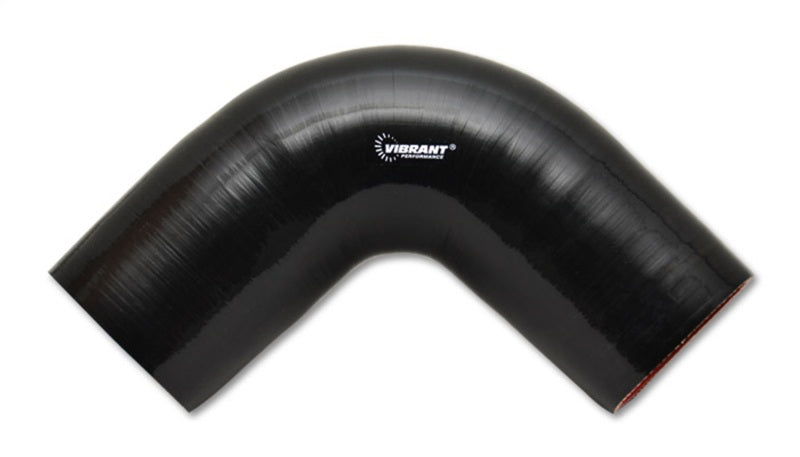

Vibrant 4 Ply Reinforced Silicone Elbow Connector - 2.5 Inch I.D. 90 Degree Black

Vibrant Performance 90 Degrees Aramid Reinforced Silicone Elbows feature tight radius bends, making them ideal for congested engine bays that are typical in late model cars. All Vibrant Performance Silicone Elbows feature High Temperature Resistant Aramid Reinforcement Fabric between each layer of silicone which allows for an impressive Operating Temperature Range of -75 Degrees F to 392 Degrees F (-60 Degrees C to 200 Degrees C). Suitable for Water, Coolant and Air service only. 90 Degree Hose Coupler; 2.5 in. ID; 3.75 in. Leg Length From Tangent; 2.5 in. Centerline Radius; 50 PSI Maximum Operating Pressure; 0.2 in. Wall Thickness; Black; Rated for temperatures ranging from -65°F to 350°F

• Capable of withstanding extreme temperatures and heavy duty pressure conditions without swelling or bursting
• Rated for temperatures ranging from -65 F to 350 F
• Hand wrapped and feature 4-ply reinforcement
• Meets or exceeds SAE J20 specifications
• Suitable for coolant service
• Center Line Radius 1.5 in.
• 4 Ply Reinforced Silicone
• 1 Year Limited Warranty
• UV and Ozone resistant
• Leg Length 5 in.

The Vibrant 4 Ply Reinforced Silicone Elbow Connector is designed for high-performance automotive applications, providing reliable routing in tight engine bays. Featuring a 2.5-inch inner diameter and a 90-degree bend, this hose is ideal for congested spaces where precise alignment is essential. Its black color offers a sleek appearance while maintaining durability in demanding conditions. Constructed with high-temperature resistant silicone and four layers of reinforcement fabric, including a layer of aramid fiber, this elbow withstands extreme heat and pressure without swelling or bursting. The reinforced silicone design ensures longevity and resilience, making it suitable for coolant, water, and air service. Its operating temperature range from -75°F to 392°F (-60°C to 200°C) ensures compatibility with a wide array of engine environments. The centerline radius of 1.5 inches and a leg length of 5 inches facilitate versatile installation options in confined spaces. Rated for a maximum operating pressure of 50 PSI, this elbow maintains performance under heavy-duty conditions, meeting or exceeding SAE J20 specifications. The product is UV and ozone resistant, which helps prevent deterioration over time. Hand-wrapped and four-ply reinforced, the Vibrant silicone elbow provides consistent performance and durability. Backed by a one-year limited warranty, this component is an excellent choice for automotive professionals seeking reliable, high-quality silicone hoses for critical coolant or air routing applications. The Vibrant 4 Ply Reinforced Silicone Elbow is not only built to withstand extreme temperatures but also designed to provide a secure, leak-free connection in demanding engine bay environments.

Features:

• High-temperature resistant silicone construction with four layers of reinforcement fabric including aramid fiber

• 90-degree bend with 2.5-inch inner diameter for tight routing in congested engine bays

• Operating temperature range from -75°F to 392°F (-60°C to 200°C) for versatile application

• Rated for up to 50 PSI maximum pressure, suitable for coolant, water, and air service

• UV and ozone resistant to prevent deterioration over time

• Centerline radius of 1.5 inches and leg length of 5 inches for flexible installation

• Meets or exceeds SAE J20 specifications for quality and safety

• Hand-wrapped with 4-ply reinforcement for consistent durability

• Black color for a sleek appearance and corrosion resistance

• Includes a one-year limited warranty for added confidence in performance

Air Freight Prohibited: false
Not Carb Approved: false
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: N/A
Carb Acknowledgement Required: false
Regular Stock: t
Units Per Sku: 1
