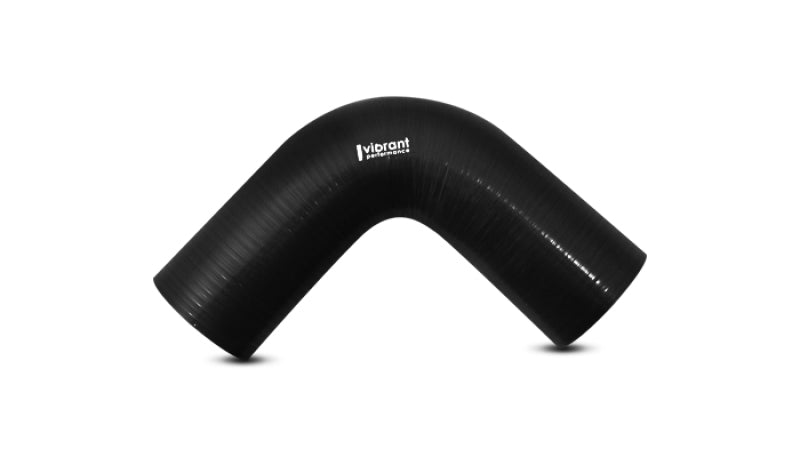

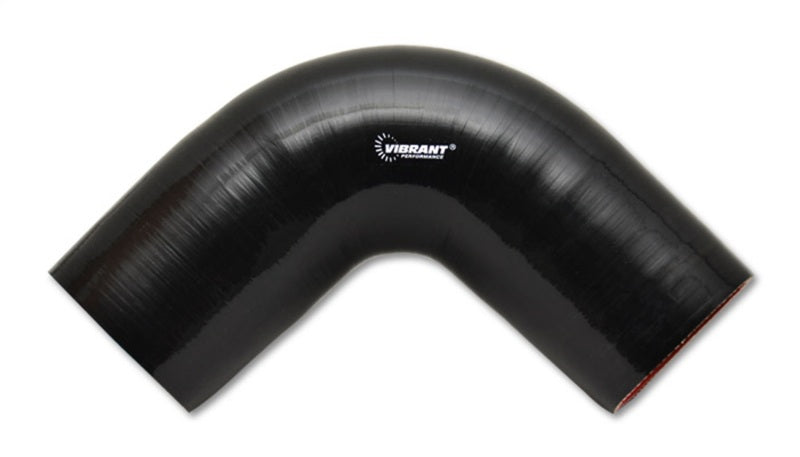

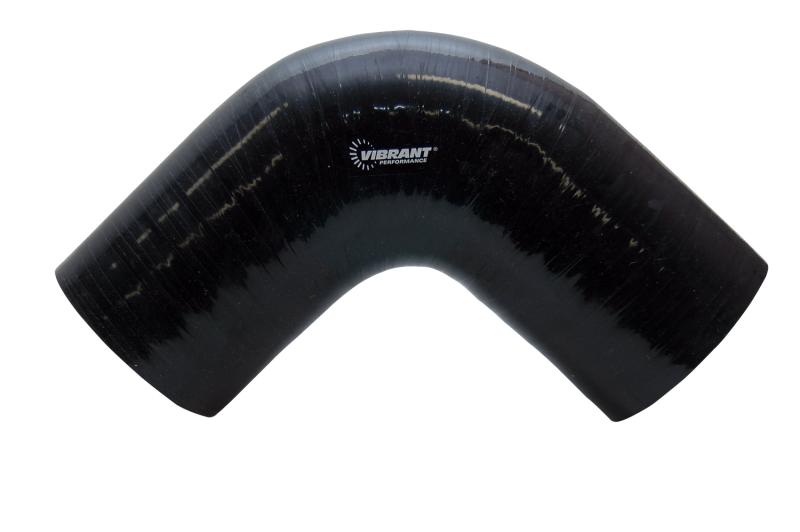

Vibrant 4 Ply Reinforced Silicone Elbow Connector - 1.5 inch ID - 90 Degree Bend - Black

Vibrant Performance 90 Degrees Aramid Reinforced Silicone Elbows feature tight radius bends, making them ideal for congested engine bays that are typical in late model cars. All Vibrant Performance Silicone Elbows feature High Temperature Resistant Aramid Reinforcement Fabric between each layer of silicone which allows for an impressive Operating Temperature Range of -75 Degrees F to 392 Degrees F (-60 Degrees C to 200 Degrees C). Suitable for Water, Coolant and Air service only. 90 Degree Hose Coupler; 1.5 in. ID; 4 in. Leg Length From Tangent; 1.5 in. Centerline Radius; 85 PSI Maximum Operating Pressure; 0.2 in. Wall Thickness; Black; Rated for temperatures ranging from -65°F to 350°F

• Capable of withstanding extreme temperatures and heavy duty pressure conditions without swelling or bursting
• Rated for temperatures ranging from -65 F to 350 F
• Hand wrapped and feature 4-ply reinforcement
• Meets or exceeds SAE J20 specifications
• Suitable for coolant service
• Center Line Radius 1.5 in.
• 4 Ply Reinforced Silicone
• 1 Year Limited Warranty
• UV and Ozone resistant
• Leg Length 5 in.

The Vibrant 2749 Silicone Elbow Connector is designed for high-performance applications in automotive engine bays with tight spaces. Featuring a 90-degree bend, this hose connector allows for smooth routing of coolant, water, or air lines in congested areas. Its 1.5-inch inner diameter and 4-ply reinforcement ensure durability and flexibility under demanding conditions. The silicone material is hand-wrapped with aramid reinforcement fabric, providing exceptional strength and resistance to swelling or bursting even at elevated temperatures. This makes it suitable for a wide operating temperature range from -75°F to 392°F, ensuring reliability during extreme engine operation. The black finish offers a sleek appearance suitable for various build aesthetics and the connector meets or exceeds SAE J20 standards, guaranteeing quality and performance. The design includes a centerline radius of 1.5 inches, accommodating tight bends necessary in complex engine configurations. The hose's wall thickness of 0.2 inches adds to its robustness while maintaining flexibility. This silicone elbow is ideal for coolant or water systems in late-model cars, offering a dependable connection point that withstands high pressure up to 85 PSI. Its UV and ozone resistant features further enhance longevity, making it a practical choice for both street and racing applications. Backed by a one-year limited warranty, the Vibrant silicone elbow connector delivers lasting performance with confidence. Suitable for automotive use, this component is a vital part of any custom or OEM cooling system where space constraints and durability are priorities.

Features:

• 90 Degree bend with tight radius for congested engine bays

• 1.5 inch inner diameter for versatile piping connections

• Constructed with 4-ply silicone reinforcement for durability

• High temperature resistance from -75°F to 392°F ( -65°F to 350°F rated)

• Aramid reinforced fabric for added strength and flexibility

• Meets or exceeds SAE J20 specifications for quality assurance

• UV and ozone resistant for extended lifespan

• Wall thickness of 0.2 inches enhances robustness

• Centerline radius of 1.5 inches allows for tight routing

• Suitable for coolant, water, and air service in automotive systems

Air Freight Prohibited: false
Not Carb Approved: false
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: N/A
Carb Acknowledgement Required: false
Regular Stock: t
Units Per Sku: 1
