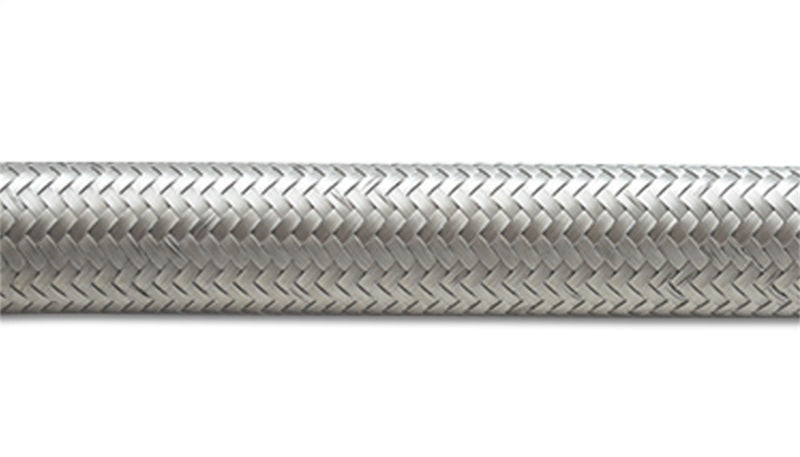

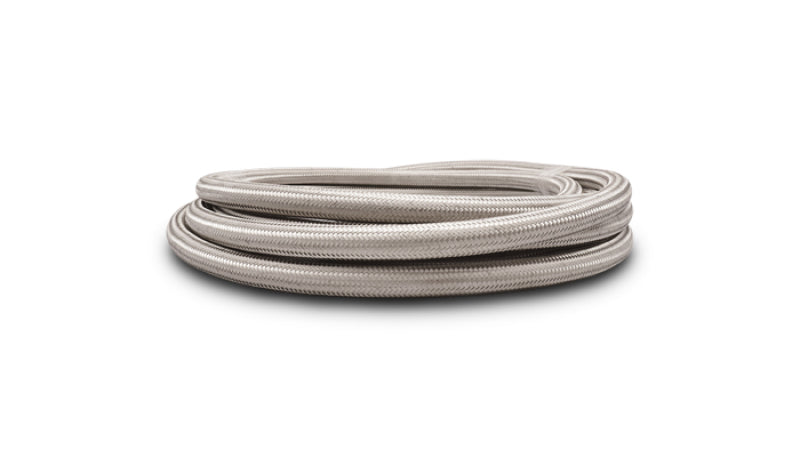

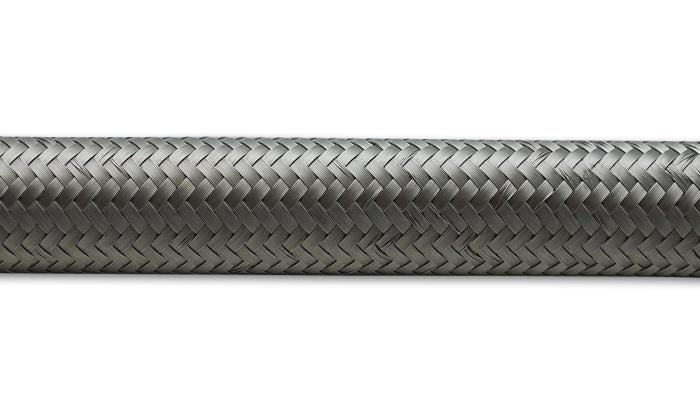

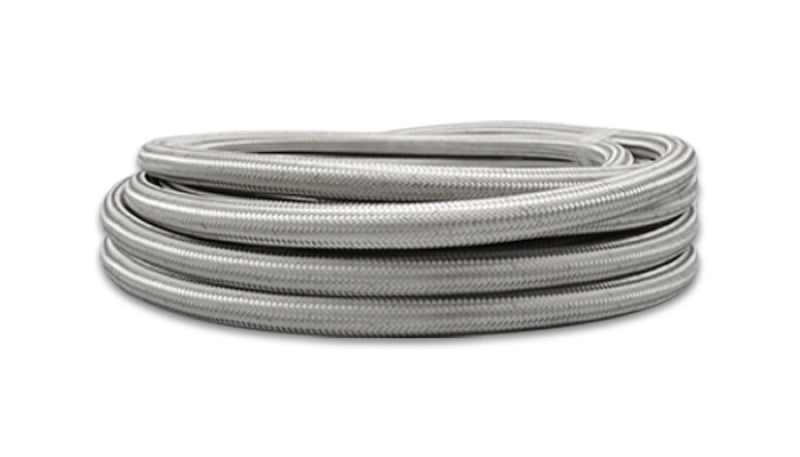

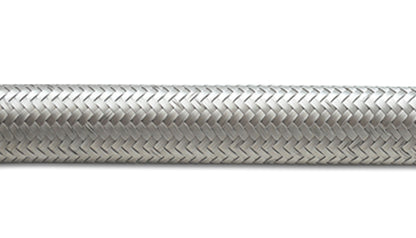

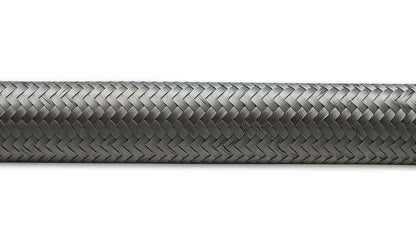

Vibrant -4 AN Stainless Steel Braided Flex Hose (5 Foot Roll) for Automotive Applications

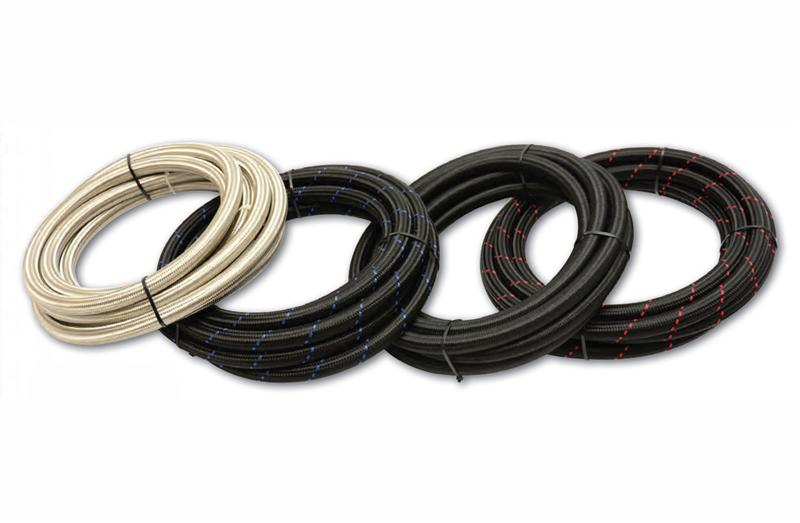

Vibrant Performance Braided Flex Hoses are available in Stainless Steel and Nylon braided covers which provide excellent abrasion resistance and surrounds a reinforced CPE synthetic rubber inner liner. Our Braided Flex Hoses are suitable for oil, water, fuel, coolant and vacuum service. Also suitable for E85 and methanol use but fumes will permeate through this type of hose when fuel is left stagnant for long periods of time. See our PTFE Flex Hose for extended E85 and methanol use. These hoses are NOT suitable for use as brake lines or other hydraulic pressure lines, nor are they suited for extended submersion in fuel or oil (not recommended for in-tank applications). Operating temperature range: -40 Degrees F to 300 Degrees F (-40 Degrees C to 150 Degrees C). Stainless Steel Braided Flex Hose; -4AN; 0.219 in. Hose ID; 0.4375 in. Hose OD; 1000 PSI Operating Pressure; 6000 PSI BP; Natural; 5 ft. Roll; Universal application

• One Year Limited Warranty
• 300 Stainless Steel

The Vibrant -4 AN Stainless Steel Braided Flex Hose offers a robust and reliable solution for fuel, oil, water, and coolant transfer in automotive systems. Constructed with a reinforced CPE synthetic rubber inner liner and a durable stainless steel braided cover, this hose provides excellent abrasion resistance and longevity in demanding environments. Its versatile design makes it suitable for E85 and methanol fuels, although prolonged stagnant fuel may cause fumes to permeate, so use with caution for such applications. This hose is ideal for high-pressure scenarios with a maximum working pressure of 1000 PSI and a burst pressure of 6000 PSI, ensuring safety and performance under demanding conditions. Operating within a temperature range of -40°F to 300°F, it can withstand extreme hot and cold environments commonly encountered in automotive and racing applications. The -4 AN size features a 0.219-inch inner diameter and a 0.4375-inch outer diameter, making it compatible with a wide range of fittings and fixtures. The 5-foot length provides ample flexibility for custom routing in complex systems. Suitable for universal use, this hose supports various automotive configurations and is backed by a one-year limited warranty for peace of mind. Note that it is not recommended for use as brake lines or hydraulic pressure lines, nor for extended submersion in fuel or oil, especially in in-tank applications. Constructed from 300 series stainless steel, it combines corrosion resistance and strength, ensuring reliable performance over time. Whether for racing, street use, or custom builds, the Vibrant -4 AN Stainless Steel Braided Flex Hose is a dependable choice for high-pressure fluid transfer needs in automotive projects.

Features:

• Reinforced with stainless steel braided cover for abrasion resistance

• Inner liner constructed from CPE synthetic rubber for chemical compatibility

• Suitable for fuel, oil, water, coolant, and vacuum applications

• Compatible with E85 and methanol fuels, with caution for prolonged stagnant fuel

• Maximum operating pressure of 1000 PSI and burst pressure of 6000 PSI

• Operates effectively from -40°F to 300°F (-40°C to 150°C)

• Flexible 5-foot roll length for versatile installation

• Universal fit with -4 AN fittings, 0.219-inch ID, and 0.4375-inch OD

• Constructed from durable 300 series stainless steel for corrosion resistance

• Not suitable for brake lines, hydraulic pressure lines, or extended submersion in fuel/oil

Air Freight Prohibited: false
Not Carb Approved: false
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: N/A
Carb Acknowledgement Required: false
Regular Stock: t
Units Per Sku: 1
