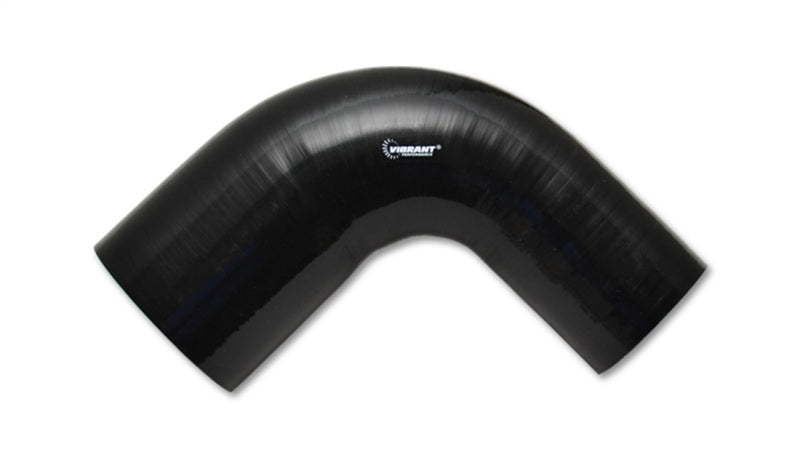

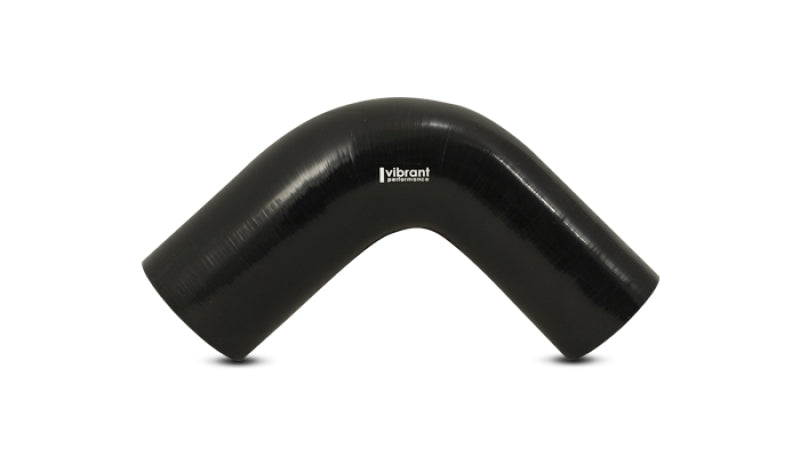

Vibrant 2780 4 Ply Reinforced Silicone 90 Degree Transition Elbow for Automotive Applications

Vibrant Performance Aramid Reinforced Silicone 90 Degrees Transition Elbows feature High Temperature Resistant Aramid Reinforcement Fabric between each layer of silicone which allows for an impressive Operating Temperature Range of -75 Degrees F to 392 Degrees F (-60 Degrees C to 200 Degrees C). These elbows are intended for use in applications where pressurized tubing and connection points require a tight radius bend and size transition to accommodate the installation of piping in limited space. Not suitable for use with Oil/Fuel. 90 Degree Reducer Hose Coupler; 2 in. Inlet ID; 2.5 in. Outlet ID; 3.5 in. Leg Length From Tangent; 2.5 in. Centerline Radius; 50 PSI Maximum Operating Pressure; Black; Rated for temperatures ranging from -65°F to 350°F Universal application

• Capable of withstanding extreme temperatures and heavy duty pressure conditions without swelling or bursting
• Rated for temperatures ranging from -65 F to 350 F
• Hand wrapped and feature 4-ply reinforcement
• Meets or exceeds SAE J20 specifications
• Suitable for coolant service
• 4 Ply Reinforced Silicone
• 1 Year Limited Warranty
• UV and Ozone resistant

The Vibrant 2780 4 Ply Reinforced Silicone 90 Degree Transition Elbow is designed for high-performance automotive and industrial applications requiring reliable, durable, and temperature-resistant piping connections. Featuring a high-temperature resistant Aramid reinforcement fabric sandwiched between layers of flexible silicone, this elbow can withstand extreme temperatures from -75°F to 392°F, ensuring performance in demanding environments. Its reinforced construction provides excellent pressure tolerance and resistance to swelling or bursting, making it suitable for pressurized coolant and air systems. The 90-degree bend facilitates tight radius turns and size transitions in limited-space installations, enhancing system efficiency and reducing the need for additional fittings. The black silicone body is UV and ozone resistant, ensuring longevity when exposed to harsh outdoor conditions. Designed to meet or exceed SAE J20 specifications, the elbow is hand-wrapped with four-ply reinforcement, providing added strength and durability. This versatile component is ideal for coolant service, air intake systems, and other automotive fluid transfer needs, offering a reliable connection that maintains integrity under heavy-duty pressure and temperature fluctuations. With a 2-inch inner diameter inlet, 2.5-inch outlet, and a 3.5-inch leg length from tangent, it provides a seamless transition between different pipe sizes. The part also features a maximum operating pressure of 50 PSI, ensuring safe operation within typical automotive system parameters. Backed by a one-year limited warranty, the Vibrant silicone elbow combines high-quality materials with proven design standards for dependable performance. Whether for custom fabrication or routine repairs, this transition elbow offers a robust solution for managing fluid and air flow in complex engine bay layouts and confined spaces.

Features:

• High-Temperature Resistance: Operates reliably from -75°F to 392°F ( -65°C to 200°C )

• Reinforced Silicone Construction: Four-ply design with Aramid fabric for superior strength

• Tight Radius 90 Degree Bend: Facilitates space-saving piping transitions

• Durable and UV/Ozone Resistant: Suitable for outdoor and harsh environments

• Rated for 50 PSI Maximum Pressure: Ensures safe operation under pressurized conditions

• Meets SAE J20 Specifications: Industry standard for silicone hoses

• Versatile Automotive Use: Ideal for coolant, air intake, and fluid transfer applications

• Corrosion and Swell Resistant: Maintains integrity over time in demanding conditions

• Easy Installation: Designed for reliable, leak-free connections in limited spaces

• One-Year Limited Warranty: Confidence in product durability and performance

Air Freight Prohibited: false
Not Carb Approved: false
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: N/A
Carb Acknowledgement Required: false
Regular Stock: t
Units Per Sku: 1
