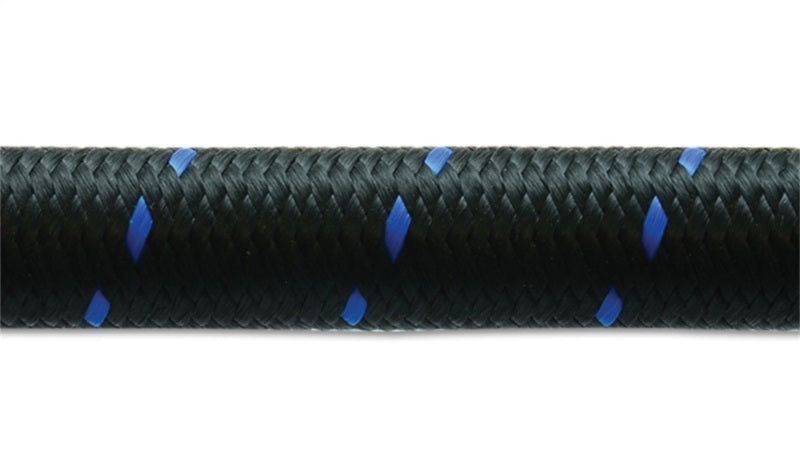

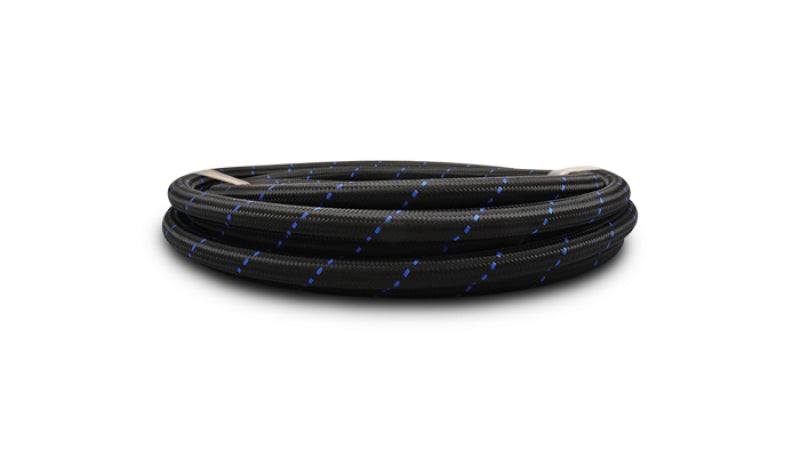

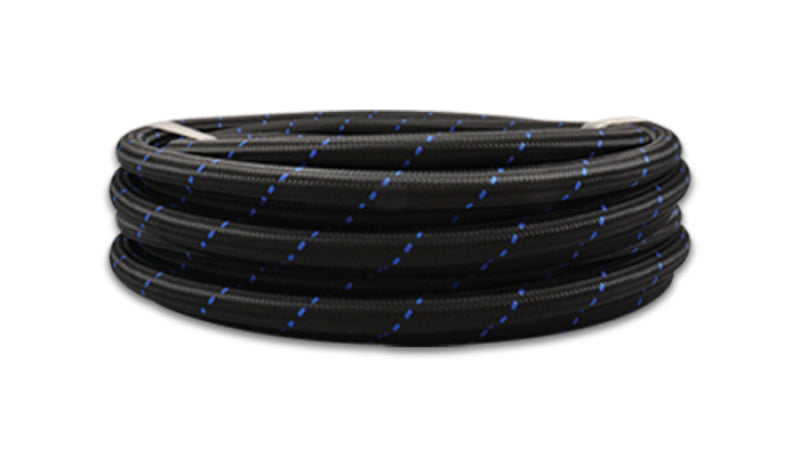

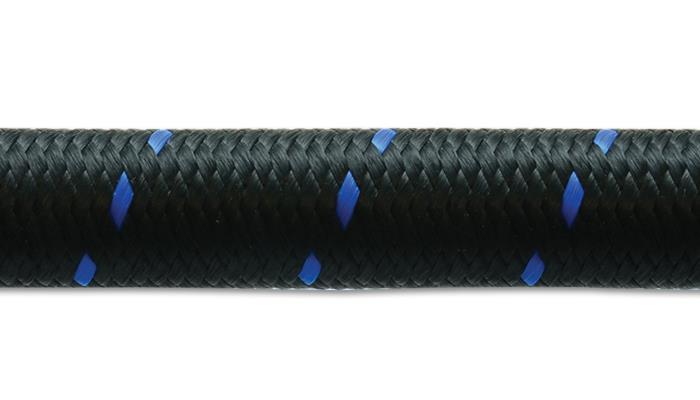

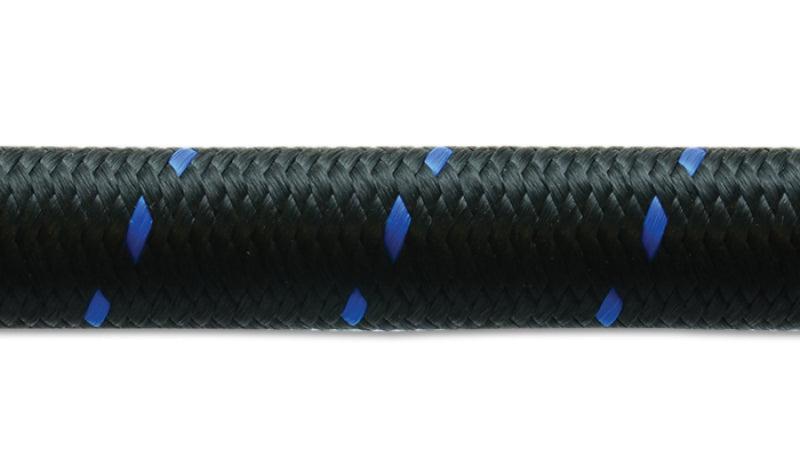

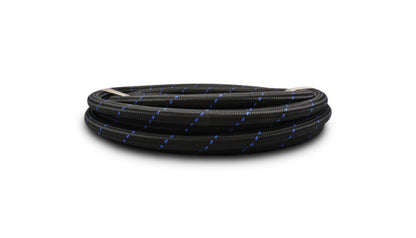

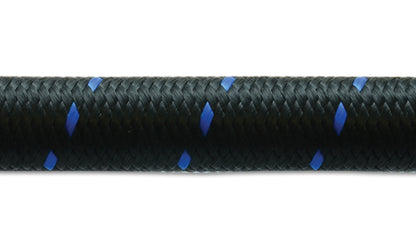

Vibrant -12 AN Nylon Braided Flex Hose with Reinforced CPE Inner Liner, 5 ft Roll

Vibrant Performance Braided Flex Hoses are available in Stainless Steel and Nylon braided covers which provide excellent abrasion resistance and surrounds a reinforced CPE synthetic rubber inner liner. Our Braided Flex Hoses are suitable for oil, water, fuel, coolant and vacuum service. Also suitable for E85 and methanol use but fumes will permeate through this type of hose when fuel is left stagnant for long periods of time. See our PTFE Flex Hose for extended E85 and methanol use. These hoses are NOT suitable for use as brake lines or other hydraulic pressure lines, nor are they suited for extended submersion in fuel or oil (not recommended for in-tank applications). Operating temperature range: -40 Degrees F to 300 Degrees F (-40 Degrees C to 150 Degrees C). Nylon Braided Flex Hose; -12AN; 0.6875 in. Hose ID; 0.9375 in. Hose OD; 350 PSI Operating Pressure; 1400 PSI BP; 5ft. Roll; Black/Blue;

• One Year Limited Warranty
• Synthetic Rubber/Nylon

The Vibrant -12 AN Nylon Braided Flex Hose is designed for high-performance automotive applications, offering excellent abrasion resistance with its durable nylon braided exterior. The hose features a reinforced CPE synthetic rubber inner liner that ensures reliable fluid transfer for oil, water, fuel, coolant, and vacuum services. Its versatility makes it suitable for use with E85 and methanol fuels, although prolonged stagnant fuel fumes may permeate through this type of hose; for extended E85 and methanol use, consider the Vibrant PTFE Flex Hose. This flexible hose is not intended for brake lines, hydraulic pressure lines, or extended submersion in fuel or oil, especially in in-tank applications. Operating within a temperature range of -40°F to 300°F (-40°C to 150°C), it maintains performance under demanding conditions. The hose has a 0.6875-inch inner diameter and a 0.9375-inch outer diameter, rated for up to 350 PSI operating pressure with a 1400 PSI burst pressure, ensuring reliable performance during high-pressure operations. The 5-foot roll comes in a sleek black/blue two-tone finish, providing an attractive and functional addition to your automotive setup. Backed by a one-year limited warranty, this hose combines durability, performance, and versatility for a wide range of racing and street applications. Constructed from synthetic rubber and nylon, it offers a balance of flexibility and strength to meet the demands of modern automotive systems. Easy to install and maintain, the Vibrant -12 AN Nylon Braided Flex Hose is an essential component for enthusiasts seeking reliable fluid transfer in their custom builds.

Features:

• Nylon braided exterior for excellent abrasion resistance

• Reinforced CPE synthetic rubber inner liner for durability

• Suitable for oil, water, fuel, coolant, and vacuum service

• Compatible with E85 and methanol fuels (permeation considerations apply)

• Not suitable for brake lines or hydraulic pressure lines

• Operates effectively within -40°F to 300°F (-40°C to 150°C)

• Rated for 350 PSI operating pressure and 1400 PSI burst pressure

• Includes 5-foot length roll in black/blue finish

• Constructed from synthetic rubber and nylon for optimal flexibility and strength

• Backed by a one-year limited warranty

Air Freight Prohibited: false
Not Carb Approved: false
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: N/A
Carb Acknowledgement Required: false
Regular Stock: t
Units Per Sku: 1
