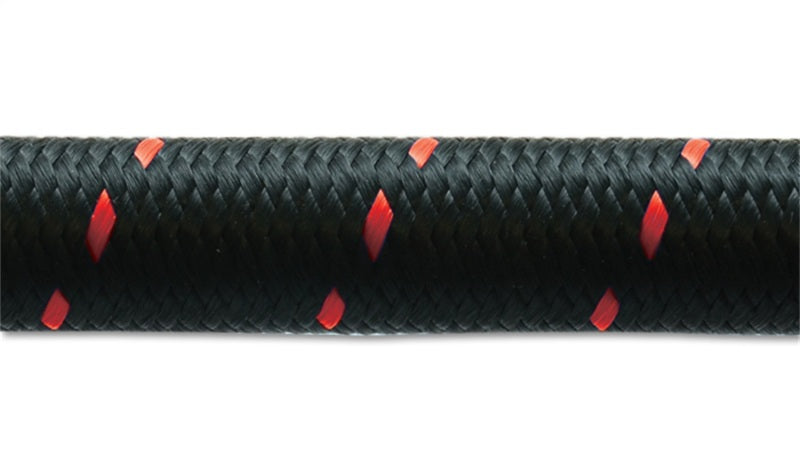

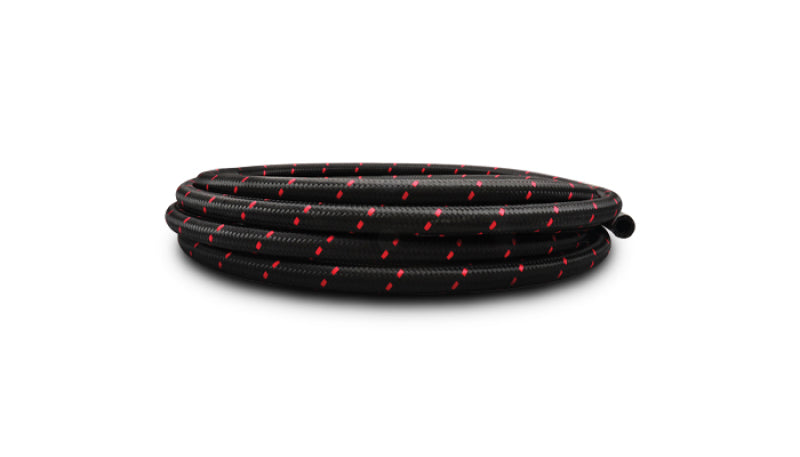

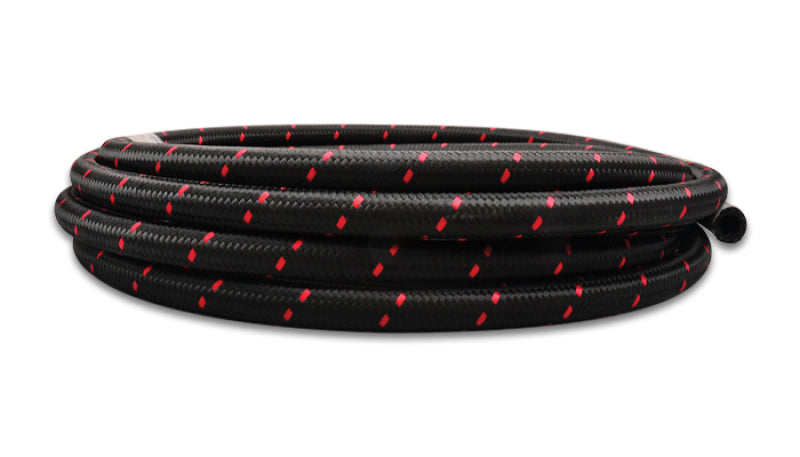

Vibrant -10 AN Nylon Braided Flex Hose 5ft Roll with Reinforced Synthetic Rubber Inner Liner

Vibrant Performance Braided Flex Hoses are available in Stainless Steel and Nylon braided covers which provide excellent abrasion resistance and surrounds a reinforced CPE synthetic rubber inner liner. Our Braided Flex Hoses are suitable for oil, water, fuel, coolant and vacuum service. Also suitable for E85 and methanol use but fumes will permeate through this type of hose when fuel is left stagnant for long periods of time. See our PTFE Flex Hose for extended E85 and methanol use. These hoses are NOT suitable for use as brake lines or other hydraulic pressure lines, nor are they suited for extended submersion in fuel or oil (not recommended for in-tank applications). Operating temperature range: -40 Degrees F to 300 Degrees F (-40 Degrees C to 150 Degrees C). Nylon Braided Flex Hose; -10AN; 0.5625 in. Hose ID; 0.828 in. Hose OD; 500 PSI Operating Pressure; 2000 PSI BP; 5ft. Roll; Black/Red;

• One Year Limited Warranty
• Synthetic Rubber/Nylon

The Vibrant -10 AN Nylon Braided Flex Hose offers reliable performance for a variety of automotive fluid transfer applications. Constructed with a durable nylon braid exterior and a reinforced CPE synthetic rubber inner liner, this hose provides excellent abrasion resistance and flexibility. Its design ensures suitability for oil, water, fuel, coolant, and vacuum service, making it a versatile choice for custom fuel and fluid systems. The hose's operating temperature range spans from -40°F to 300°F (-40°C to 150°C), accommodating a wide array of engine bay conditions. Whether you're installing a new fuel line or upgrading coolant connections, this hose delivers durability and performance under demanding conditions.

Features:

• Nylon braided exterior for enhanced abrasion resistance and flexibility

• Reinforced CPE synthetic rubber inner liner for durability in fluid transfer

• Suitable for oil, water, fuel, coolant, and vacuum applications

• Operates within a temperature range of -40°F to 300°F (-40°C to 150°C)

• Rated for 500 PSI operating pressure and 2000 PSI burst pressure

• Includes a 5-foot roll with black and red two-tone coloration

• Compatible with E85 and methanol fuels, with caveats for prolonged stagnation

• Not suitable for brake or hydraulic pressure lines or in-tank fuel applications

• Manufactured by Vibrant, Part Number 11990R with a -10 AN size

Air Freight Prohibited: false
Not Carb Approved: false
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: N/A
Carb Acknowledgement Required: false
Regular Stock: t
Units Per Sku: 1
