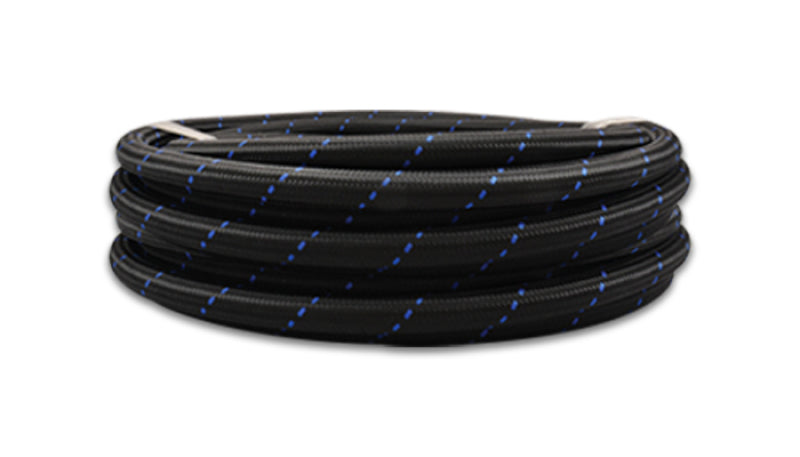

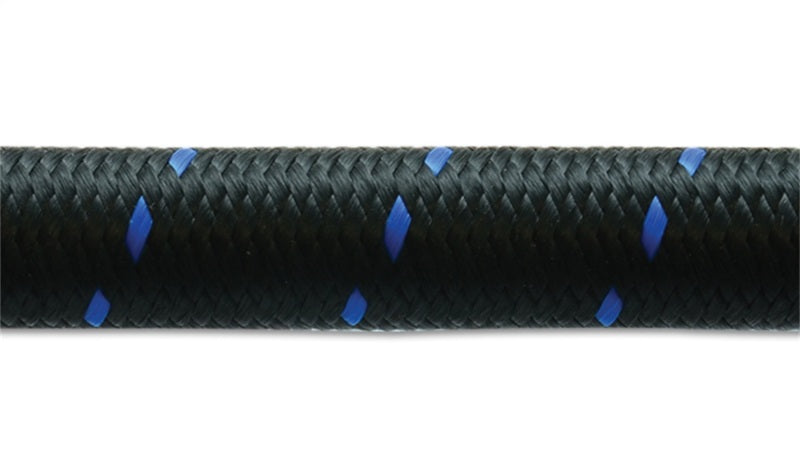

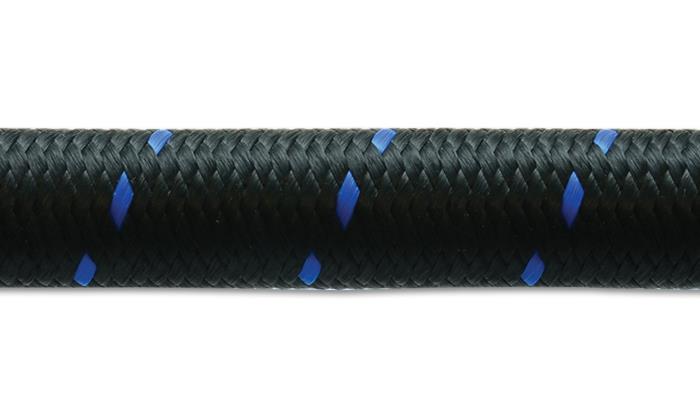

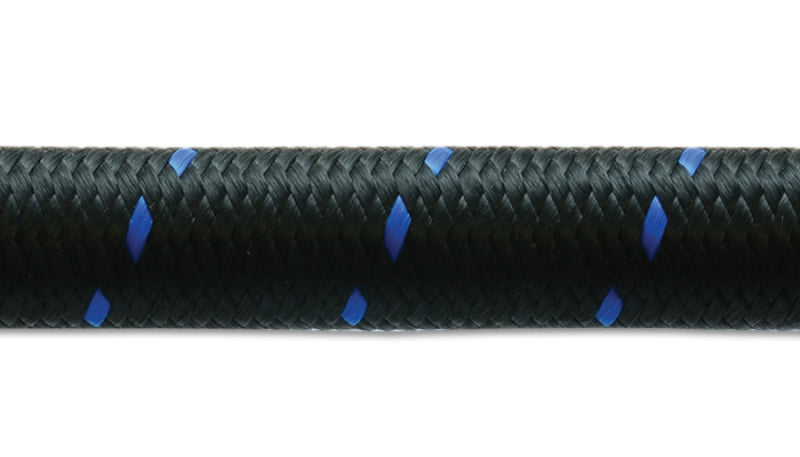

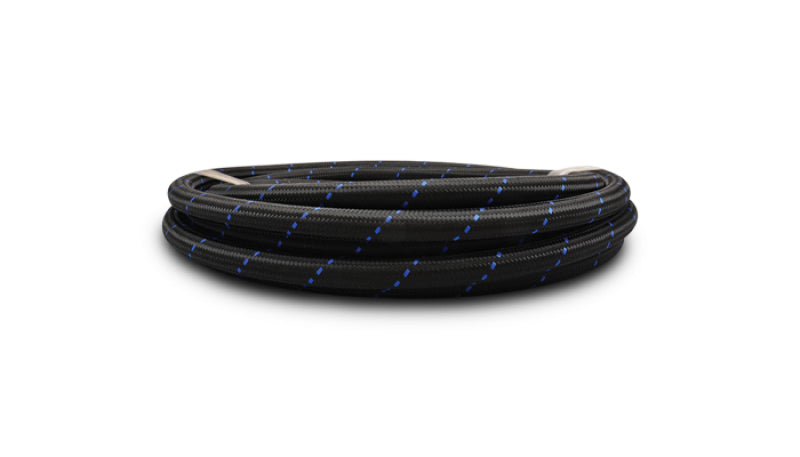

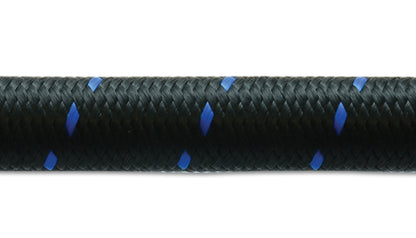

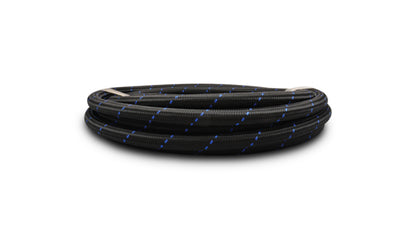

Vibrant -10 AN Nylon Braided Flex Hose (20 ft) with Reinforced CPE Inner Liner

Vibrant Performance Braided Flex Hoses are available in Stainless Steel and Nylon braided covers which provide excellent abrasion resistance and surrounds a reinforced CPE synthetic rubber inner liner. Our Braided Flex Hoses are suitable for oil, water, fuel, coolant and vacuum service. Also suitable for E85 and methanol use but fumes will permeate through this type of hose when fuel is left stagnant for long periods of time. See our PTFE Flex Hose for extended E85 and methanol use. These hoses are NOT suitable for use as brake lines or other hydraulic pressure lines, nor are they suited for extended submersion in fuel or oil (not recommended for in-tank applications). Operating temperature range: -40 Degrees F to 300 Degrees F (-40 Degrees C to 150 Degrees C). Nylon Braided Flex Hose; -10AN; 0.5625 in. Hose ID; 0.828 in. Hose OD; 500 PSI Operating Pressure; 2000 PSI BP; 20ft. Roll; Black/Blue; Universal Application

• One Year Limited Warranty
• Synthetic Rubber/Nylon

The Vibrant -10 AN Nylon Braided Flex Hose offers reliable performance for various automotive fluid transfer applications. Featuring a durable nylon braided cover, this hose provides excellent abrasion resistance, ensuring longevity in demanding conditions. The reinforced CPE synthetic rubber inner liner is designed for flexibility and resilience, making it suitable for oil, water, fuel, coolant, and vacuum service. This versatility makes the hose ideal for custom fuel systems, cooling lines, and other fluid transfer needs in performance and racing vehicles. Its construction is engineered to withstand up to 500 PSI operating pressure and a boiling point of 2000 PSI, ensuring safe and consistent operation under high-pressure conditions. The hose's operating temperature range spans from -40°F to 300°F, enabling use in a wide variety of environments and engine bay temperatures. Its 0.5625-inch inner diameter and 0.828-inch outer diameter are compatible with AN fittings, and the 20-foot roll provides ample length for multiple configurations or installations. Designed with a sleek black and blue two-tone finish, this hose not only performs well but also adds a professional aesthetic to custom builds. It is important to note that this hose is not suitable for use as a brake line or other hydraulic pressure line, nor for extended submersion in fuel or oil, such as in-tank applications. For extended E85 and methanol use, consider our PTFE Flex Hose, as fumes may permeate through this hose when fuel is stagnant for long periods. The Vibrant Nylon Braided Flex Hose comes with a one-year limited warranty, reflecting its quality and durability for automotive applications. Trusted for universal usage, this hose is an excellent choice for enthusiasts seeking a high-performance, flexible solution for fluid transfer in a variety of automotive projects.

Features:

• Nylon braided cover providing excellent abrasion resistance

• Reinforced CPE synthetic rubber inner liner for flexibility and durability

• Suitable for oil, water, fuel, coolant, and vacuum service

• Maximum operating pressure of 500 PSI with a boiling point of 2000 PSI

• Operating temperature range from -40°F to 300°F

• Compatible with -10 AN fittings with 0.5625-inch inner diameter

• 20-foot roll for versatile installation options

• Black and blue two-tone finish for a professional appearance

• Not suitable for brake lines or hydraulic pressure lines

• Designed for use in performance automotive applications with synthetic rubber and nylon construction

Air Freight Prohibited: false
Not Carb Approved: false
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: N/A
Carb Acknowledgement Required: false
Regular Stock: t
Units Per Sku: 1
