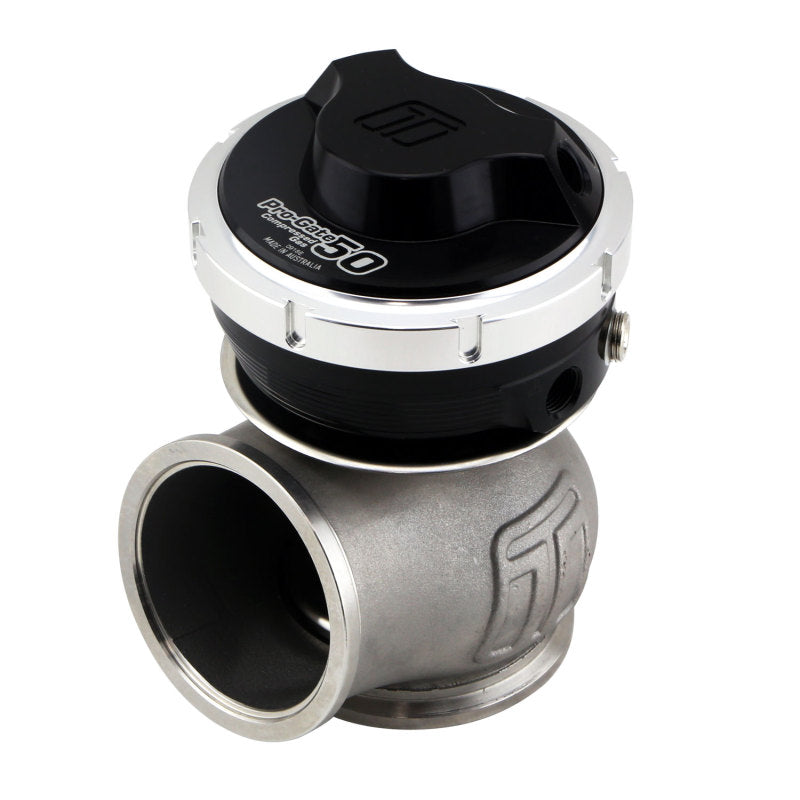

Turbosmart WG50 Gen V Pro-Gate 50mm Compressed Gas External Wastegate with 5 PSI Spring

The GenV ProGate WG50 Compressed Gas external wastegate is a cost-effective, high performing 50mm external wastegate designed for control strategies that actively bias the top chamber with increased pressure for large boost bandwidth operation, such as C02 drag racing or compressed air application. The Compressed Gas / C02 external wastegate range features an inverted diaphragm suitable for high-pressure C02 or compressed air systems and large pressure differentials.

• Class Leading CFD Driven & Bench Validated Flow Performance
• Nitronic 60 Valve Guide & High Temp 347 SS Body
• Optional Position Sensor Available Separately
• Rotatable / Clock-able Actuator Housing
• Class Leading Thermal Performance
• Base Spring Options of 3 & 5 PSI
• Class Leading Fatigue Resistance
• Optional Liquid Actuator Cooling
• 17-7 PH Stainless Steel Springs
• Strap Type V-band clamps
• 50mm V-Band Fitment

The Turbosmart WG50 Gen V Pro-Gate is a high-performance 50mm external wastegate designed specifically for controlled boost applications involving compressed air or CO2 systems. Its innovative design features an inverted diaphragm suitable for high-pressure environments, making it ideal for drag racing, compressed air, and C02 boosting scenarios. The wastegate's robust construction includes a high-temperature 347 stainless steel body and Nitronic 60 valve guide, ensuring durability under demanding conditions. Its class-leading CFD-driven flow performance has been bench validated to deliver reliable and consistent boost control across a wide bandwidth, making it a valuable component for advanced tuning and high-pressure applications.

Equipped with an adjustable, rotatable actuator housing, the WG50 Pro-Gate provides flexible installation options. It offers optional position sensors for precise control and monitoring, and its large pressure differential capabilities ensure optimal performance even in extreme conditions. Spring options include 3 and 5 PSI, allowing fine-tuning to match specific boost requirements. Optional liquid actuator cooling enhances thermal management, extending unit longevity and maintaining performance stability during prolonged operation. The use of 17-7 PH stainless steel springs further contributes to fatigue resistance, ensuring long-term reliability. The V-band clamp fitting provides a secure, easy-to-install connection compatible with 50mm V-band flanges, simplifying integration into various exhaust systems.

Designed for professional automotive and racing applications, the Turbosmart WG50 Gen V Pro-Gate combines innovative engineering with high-quality materials. Its class-leading thermal and fatigue resistance makes it suitable for demanding boost control setups, while its precise flow characteristics help maximize performance and consistency. The wastegate's rugged construction and versatile features make it an excellent choice for high-pressure, high-performance forced induction systems, ensuring reliable operation and precise boost management in competitive racing environments.

Features:

• Class-leading CFD-driven and bench-validated flow performance for reliable boost control

• High-temperature 347 stainless steel body with Nitronic 60 valve guide for durability

• Optional position sensor available for precise monitoring and control

• Rotatable and clockable actuator housing for flexible installation

• Designed for high-pressure compressed air and CO2 applications with inverted diaphragm

• Base spring options of 3 and 5 PSI for customizable boost tuning

• Enhanced thermal performance and optional liquid actuator cooling for prolonged reliability

• Made with 17-7 PH stainless steel springs for fatigue resistance

• Secure V-band clamp fitment with 50mm V-band connection for easy installation

Air Freight Prohibited: false
Not Carb Approved: true
Carb Acknowledgement Required: true
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: N/A
Regular Stock: t
Units Per Sku: 1
