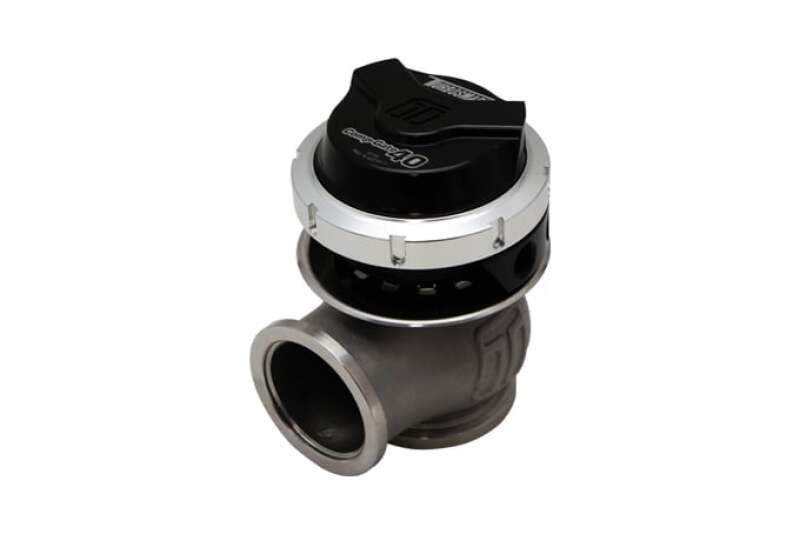

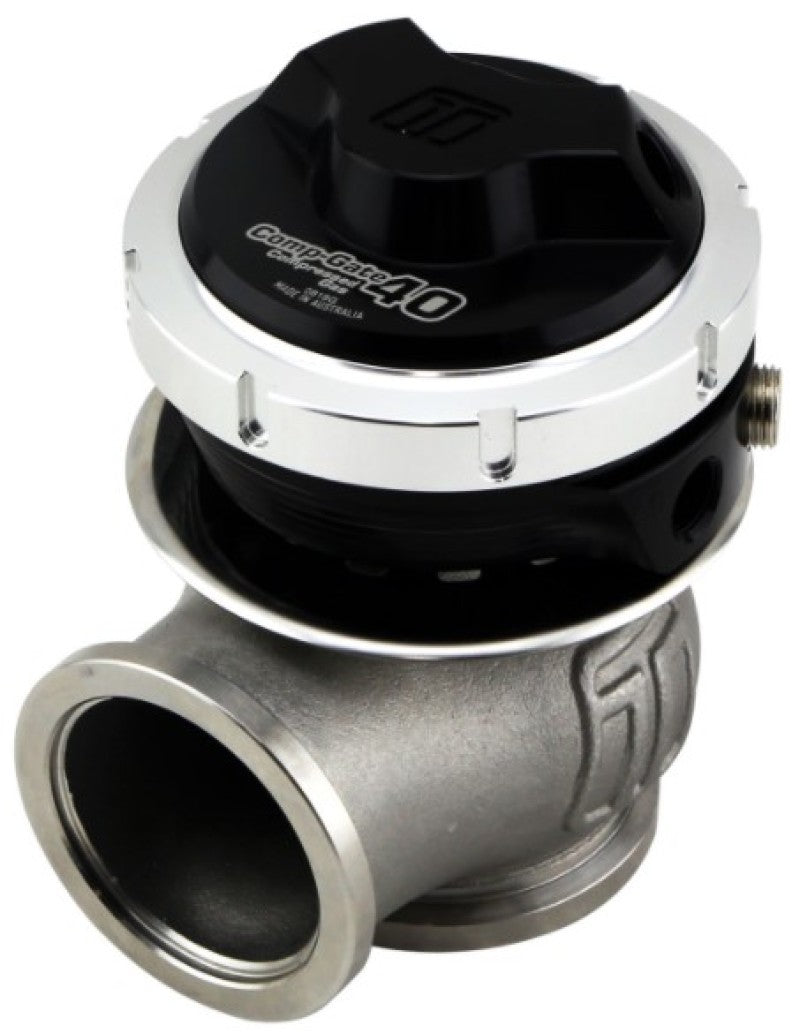

Turbosmart WG40 Gen V CompGate 40mm External Wastegate for Compressed Gas and CO2 Control

GenV CompGate40 CG for Compressed Gas and C02 External Wastegate is designed for control strategies that require a large tuning window and large pressure differentials from the top to lower actuator housings, whereas traditional actuators on poppet style gas can achieve around 2-3x base spring pressure, the CG / C02 Version is capable of extreme multiples of the base pressure through the use of additional reference signal, high-pressure gas and C02. Optional: Hall Effect Position Sensor Cap Upgrade (TS-0550-3062)

• Class Leading CFD and Bench-Validated Flow Performance
• Nitronic 60 Valve Guide and High Temp 347 SS Body
• Modular Design for Actuator Interchangeability
• Class Leading Thermal Performance
• User Adjustable Actuator Position
• Class Leading Fatigue Resistance
• 17/7 PH Stainless Steel Springs
• Liquid Actuator Cooling Option
• Strap Type V-band clamps

The Turbosmart WG40 Gen V CompGate 40mm External Wastegate (Part Number: TS-0552-1202) is engineered for high-performance pressure regulation in automotive applications involving compressed gases and CO2. Featuring a large tuning window and the ability to handle significant pressure differentials between top and lower actuator housings, this wastegate surpasses traditional poppet-style actuators by enabling extreme multiples of the base spring pressure through the use of additional reference signals, high-pressure gases, and CO2. Its advanced design makes it suitable for demanding control strategies that require precise and flexible pressure management. The unit incorporates a Nitronic 60 valve guide and a high-temperature 347 stainless steel body to ensure durability and reliable operation under high thermal stress, and its modular design allows for easy actuator interchangeability. The wastegate includes a user-adjustable actuator position, enabling fine-tuning to match specific performance requirements, while class-leading CFD and bench-validated flow performance guarantee optimal flow efficiency. Additionally, the device features optional upgrades such as a Hall Effect position sensor cap for enhanced monitoring capabilities. Built with 17/7 PH stainless steel springs, the WG40 offers excellent fatigue resistance, ensuring consistent performance over time. For thermal management, an optional liquid actuator cooling feature is available, and strap-type V-band clamps facilitate secure installation. This product is not CARB-approved but complies with Prop 65 standards, and it requires CARB acknowledgment during installation. Compact and robust, the Turbosmart WG40 is ideal for high-pressure applications demanding precision, durability, and modularity in a compact form factor.

Features:

• Class-leading CFD and bench-validated flow performance for optimal pressure regulation

• Nitronic 60 valve guide and high-temperature 347 stainless steel body for durability

• Modular design allows for easy actuator interchangeability

• Exceptional thermal performance with optional liquid actuator cooling

• User-adjustable actuator position for precise tuning

• High fatigue resistance with 17/7 PH stainless steel springs

• Strap type V-band clamps for secure installation

• Designed for large pressure differentials and extreme multiples of base spring pressure

• Optional Hall Effect position sensor cap for enhanced monitoring

Air Freight Prohibited: false
Not Carb Approved: true
Carb Acknowledgement Required: true
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: N/A
Regular Stock: t
Units Per Sku: 1
