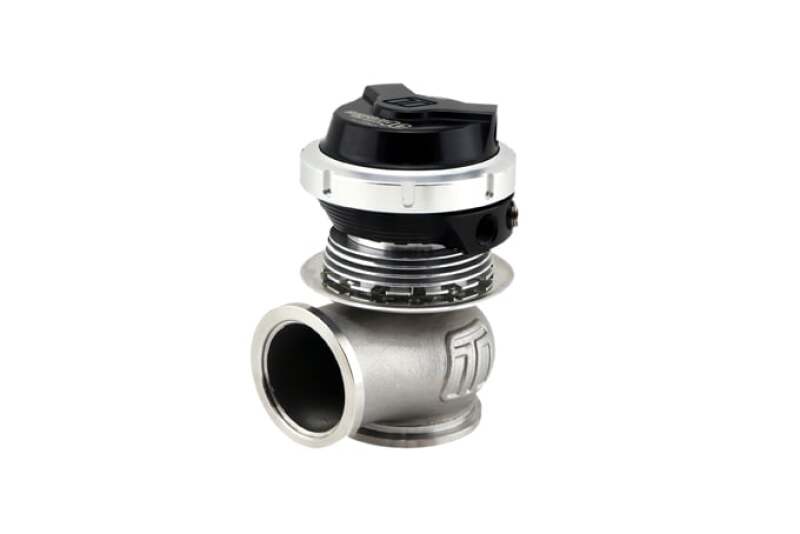

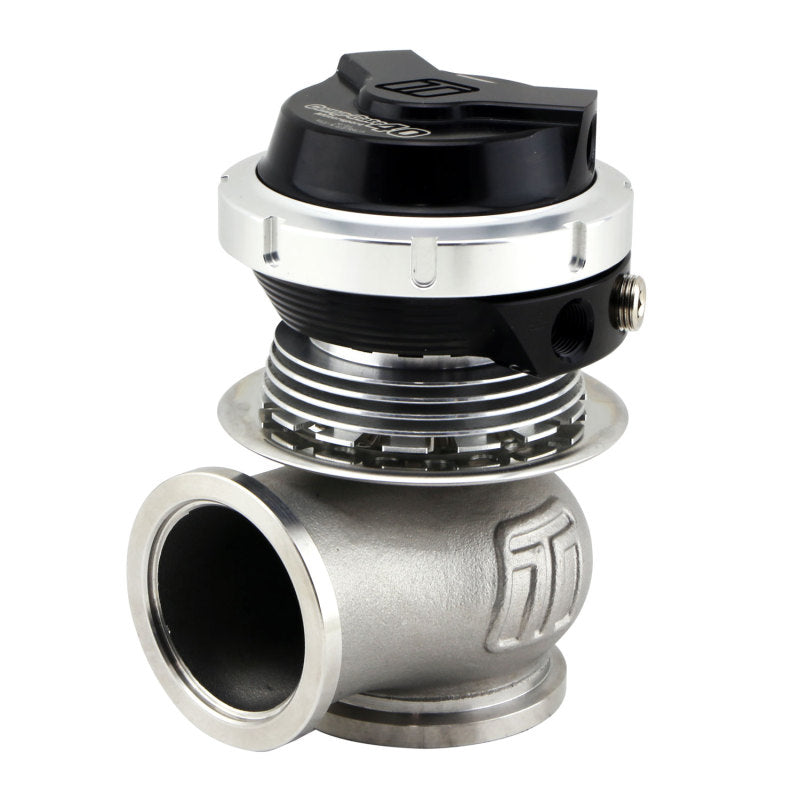

Turbosmart WG40 Gen V Comp-Gate 40mm Motorsport External Wastegate - 14 PSI Black

The GenV Motorsport Range takes the GenV modular range of External Wastegates and incorporates a CFD Designed and Real World Validated Heatsink between the Wastegate body and the actuator. While all GenV Wastegates include a Ceramic isolator between the body and actuator to ensure the least possible heat transfer occurs (for maximum life), the Motorsporexternal wastegates and incorporates a CFD-designed and real-world validated heatsink between the wastegate version takes this further by putting more distance between the two, while also using both convection within the engine compartment and physical shielding to eliminate harmful levels of heat from ever reaching the actuator. This also aids in valve and guide cooling, extending service life in demanding environments. The Motorsport Variant is, without doubt, the most suitable for the extreme conditions associated with the endurance styles of motorsport!

• 40mm V-Band Fitment and Also Suits Peer 44mm V-Band Fitment
• Nitronic 60 Valve Guide and High Temp 347 Separately Body
• Class Leading CFD and Bench Validated Flow Performance
• Optional Position Sensor Available Separately
• Rotatable / Clock-able Actuator Housing
• Class Leading Thermal Performance
• Class Leading Fatigue Resistance
• Optional Liquid Actuator Cooling
• 17-7 PH Stainless Steel Springs
• CFD Driven heatsink design
• Strap Type V-band clamps

The Turbosmart WG40 Gen V Comp-Gate is a high-performance external wastegate designed specifically for demanding motorsport applications. Featuring a 40mm V-band fitment that also accommodates Peer 44mm V-band, this wastegate ensures secure and versatile installation. Its construction includes a high-temp 347 stainless steel body and a Nitronic 60 valve guide, providing exceptional durability under extreme conditions. The unit is CFD-designed and real-world validated, with an innovative heatsink positioned between the wastegate body and actuator to significantly reduce heat transfer. This thermal management system enhances valve and guide cooling, thereby extending component life and ensuring consistent performance during endurance events. The wastegate also offers a rotatable, clock-able actuator housing for precise tuning and installation flexibility. An optional liquid actuator cooling system is available separately to further optimize thermal performance in the harshest environments. The design incorporates strap-type V-band clamps for a secure connection, and the unit is equipped with 17-7 PH stainless steel springs for reliable operation. With class-leading flow performance validated through CFD and bench testing, the Turbosmart WG40 is ideal for racers seeking maximum reliability and performance in extreme conditions. It is not CARB approved but complies with Prop 65 regulations and requires acknowledgment of this status during purchase. This product is suitable for use in various high-performance automotive applications where durability and thermal efficiency are critical.

Features:

• 40mm V-band fitment with compatibility for Peer 44mm V-band

• High-temp 347 stainless steel body for durability

• Nitronic 60 valve guide for longevity in demanding environments

• CFD-designed and validated heatsink for superior thermal management

• Rotatable, clock-able actuator housing for installation flexibility

• Optional liquid actuator cooling system available separately

• Class-leading flow performance verified through CFD and bench testing

• Strap-type V-band clamps for secure attachment

• 17-7 PH stainless steel springs for reliable operation

• Designed for endurance-style motorsport conditions

• Prop 65 compliant, with acknowledgment required

Air Freight Prohibited: false
Not Carb Approved: true
Carb Acknowledgement Required: true
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: N/A
Regular Stock: t
Units Per Sku: 1
