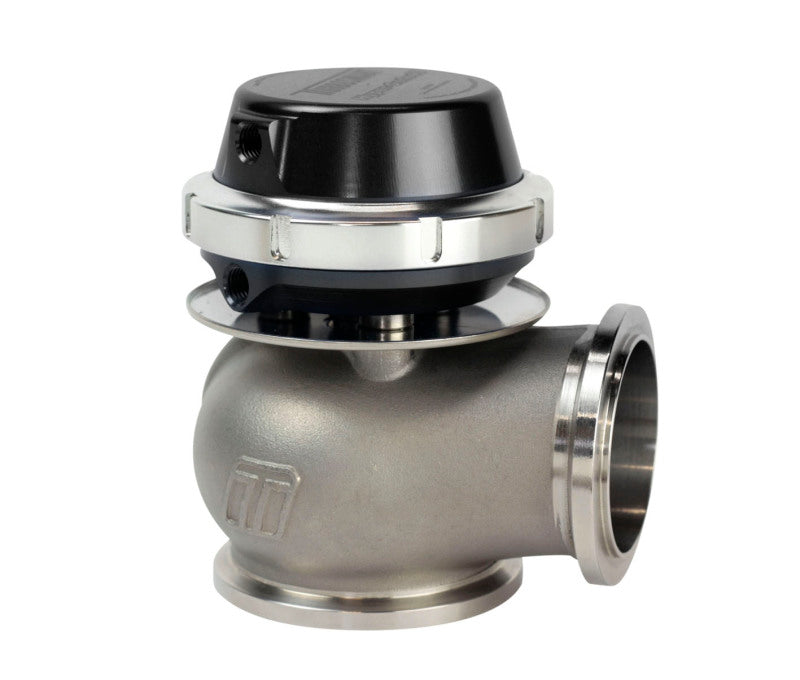

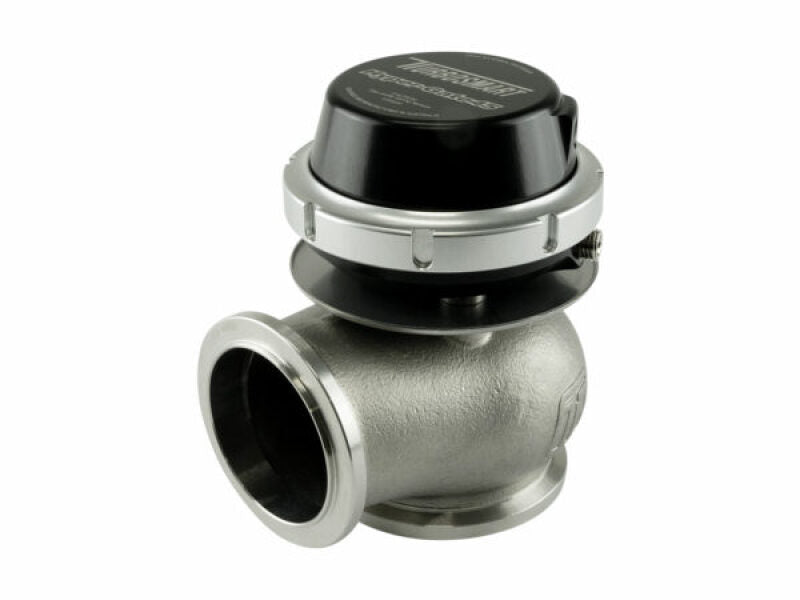

Turbosmart Hyper-Gate 45 External Wastegate (Part Number: TS-0506-1002)

IT'S BACK. The Gen4 CompGate40 and HyperGate45 have been approved for continuation and re-introduction at an all-new price! The Turbosmart Hyper-Gate45 is a 45mm external wastegate designed with minimum size and maximum flow in mind.

• Stainless Steel cast body & Aluminum actuator housing
• V-Band inlet & outlet to suit 44/46mm peer fitment
• It can be fitted with springs from 3 to 26psi
• Proprietary high-temp silicon Nomex diaphragm
• Solid piece Stainless Steel valve
• Twin 1/16" NPT reference ports
• Unique locking collar design

The Turbosmart Hyper-Gate 45 is a high-performance 45mm external wastegate engineered for optimal flow and minimal size. Its stainless steel cast body combined with an aluminum actuator housing ensures durability and resistance to high temperatures, making it suitable for demanding automotive applications. The V-band inlet and outlet are designed to fit 44mm to 46mm peer connections, providing a secure and reliable connection for your turbo system. This wastegate can be fitted with springs ranging from 3 to 26 psi, allowing for customizable boost control to match your specific tuning needs.
Constructed with a proprietary high-temperature silicon Nomex diaphragm, the Hyper-Gate 45 maintains precise operation under extreme conditions. Its solid stainless steel valve ensures longevity and consistent performance, while twin 1/16

Air Freight Prohibited: false
Not Carb Approved: true
Carb Acknowledgement Required: true
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: N/A
Regular Stock: t
Units Per Sku: 1
