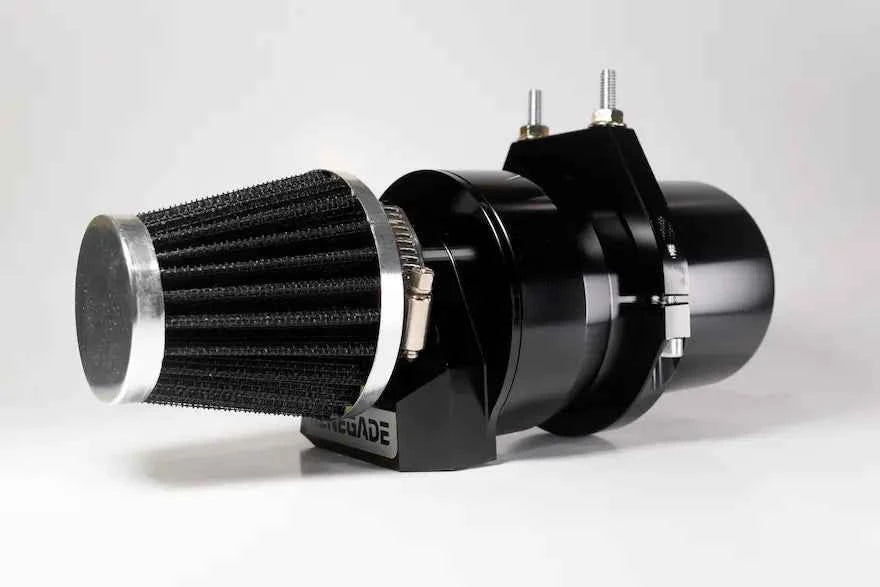

Renegade Racing Dual Action Catch Can

There’s a problem almost every power-hungry build runs into sooner or later—how to vent crankcase pressure without filling the bay with stink, oil mist, or backpressure. You need to seal it when you're cruising and let it breathe when you're hammering.

So we rethought the catch can. Then we overbuilt it.

At Renegade Racing and Performance, we don’t just bolt on band-aids—we engineer purpose-built systems that work with your engine, not against it. And the Dual Action Catch Can is proof of that.

This can stays sealed tight under idle and cruise, thanks to an integrated check valve that locks in vapors and eliminates the odor most systems leave behind. But get on the throttle, and it comes alive—opening up to vent pressure fast through a baffled, high-flow internal core designed to separate oil from vapor before it ever reaches your intake.

Just raw functionality, built into a clean, compact package.

Here’s what makes this system different (and better):

Check Valve Core – Stays shut at light load to eliminate blow-by stink, opens under throttle to relieve pressure fast.

Top-Loader Porting – All -10 ORB ports are on one face, so plumbing is clean and tight—no messy routing or weird mounting angles.

Clockable Billet Mount – Rotate the housing exactly how you want it. Fits places others can’t.

Baffled Filtration Chamber – Internal plates, steel mesh, and a perforated diffuser trap oil mist before it exits.

Built to Adapt – Works on boosted or N/A setups. LS, Coyote, Hemi—you name it.

This isn’t a repackaged fuel filter pretending to be a catch can. This is a sealed, dual-action vapor control system that actually works.

Every unit is machined from billet aluminum, anodized in Renegade Black, and comes ready to install with all necessary hardware—including a drain petcock and high-flow filter element.

Specs:

CNC Billet Can & Cap

Dual -10 ORB Inlets

Single -6 ORB Final Chamber Vacuum Port

Integrated Check Valve & Baffle System

Clockable Mount & Fasteners

Internal Mesh & Diffuser Plates

Drain Petcock

Filter Element

Dimensions: 8” tall x 3.5” diameter

Tools Needed: 3/16 Allen, 10mm socket

Need more flow? Run dual cans with -12 lines for true high-horsepower crankcase control.

When it comes to oil vapor, don’t just catch it—control it intelligently. Order now and breathe easy—the Renegade way.
