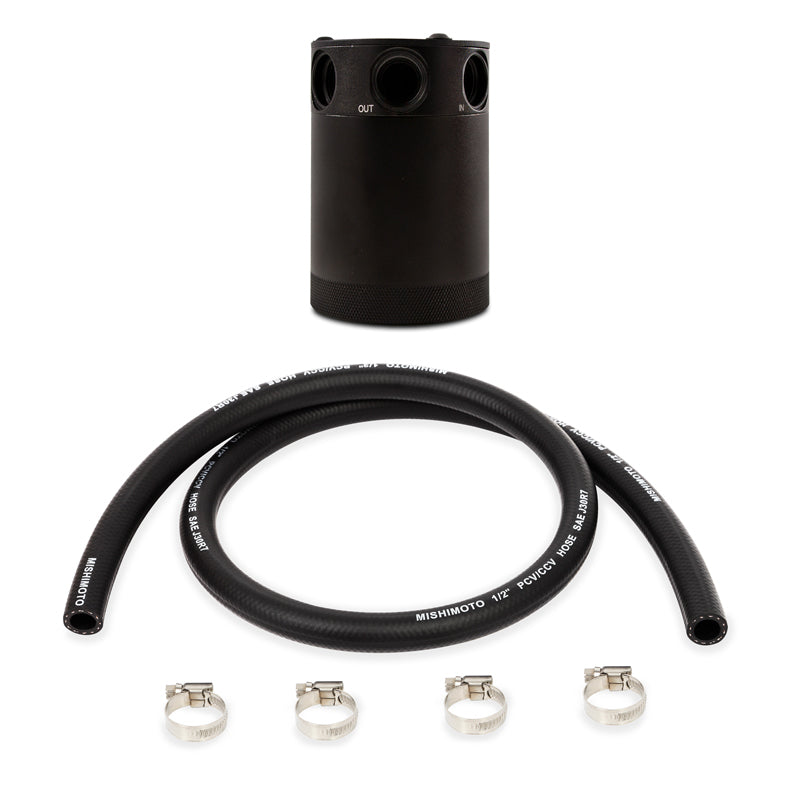

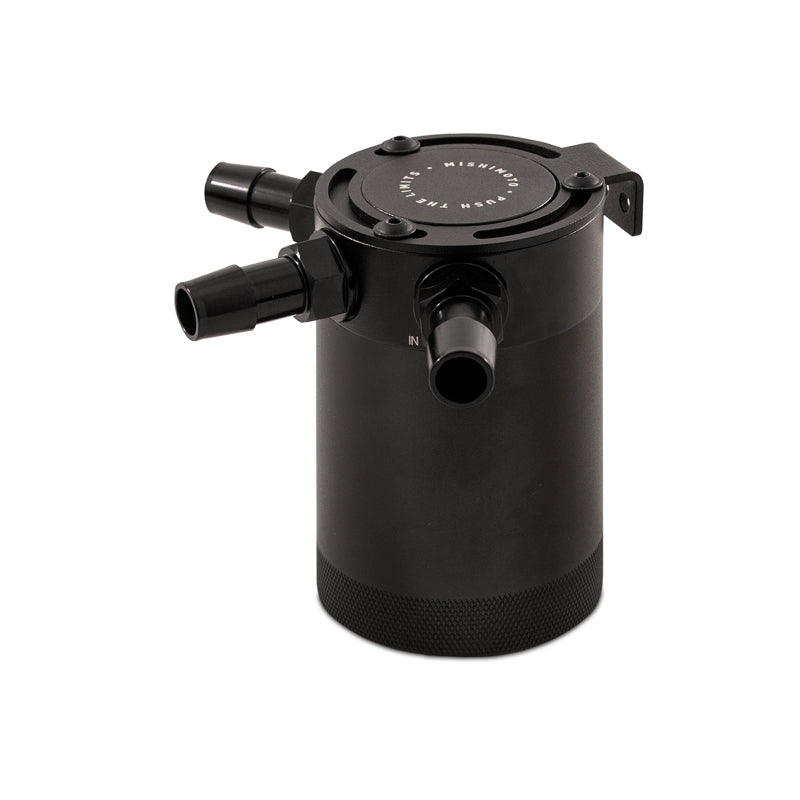

Mishimoto Compact Baffled Oil Catch Can - 3-Port for Improved Engine Performance and Oil Separation

Mishimoto is proud to announce the release of our Compact Baffled Oil Catch Can, available in a two-port or three-port option. With years of oil catch can research and development time, Mishimoto has created the most effective compact oil catch can on the market. The Mishimoto Compact Baffled Oil Catch Can was designed to separate oil particles from the PCV/CCV air that would normally have just been routed back to your intake. The internal air diverter turbulates the air longer and ensures all the oil sinks to the bottom of the can, leaving nothing but clean air to pass through the 50 micron bronze filter to the intake. An internal baffle keeps the collected oil from splashing around under race conditions. This oil catch can features two ports, one inlet and one outlet, for easy installation on CCV and PCV systems. The 100-percent billet, 6061 aluminum can features 3/8in NPT threads at the inlet, outlet, and drain area and includes two black nylon fittings to make installation effortless. For maximum fitment options, the top mounting setup allows the can to be mounted from multiple angles. To make maintenance easy, the drain plug can be removed to allow for a return to the oil pan. The can is also 100-percent washable, unlike many other cans that require you to replace your filtration system.Our catch cans are different from most air-oil-separator (AOS) systems on a few levels. First, our catch cans are not heated. This means that all of the blow-by is able to condense in the can, including low-octane oil vapors and contaminated fuel vapors. Most AOS systems also drain the blow-by back into the oil pan, while our catch cans trap the blow-by and keep it out of the engine permanently. If you've seen what We've seen in the bottom of our catch cans, you won't want that draining back into your oil either. Engine oil catch can kit designed to capture oil vapors and prevent buildup in the intake system. Helps maintain efficiency, reduce carbon deposits, and improve performance with durable components and easy installation.

• Defends intercooler, intake system, and essential components from oil blow-by
• Separates oil particles from PCV/CCV air using 50 micron bronze filter
• 100-percent billet 6061 aluminum sealed can

The Mishimoto Compact Baffled Oil Catch Can (Part Number: MMBCC-CBTHR-BK) is engineered to enhance your vehicle's engine efficiency by effectively capturing oil vapors and preventing buildup in the intake system. Crafted from 100% billet 6061 aluminum, this durable catch can features a sleek design and includes two black nylon fittings for straightforward installation. Its compact size makes it suitable for various mounting angles, providing flexibility for custom setups. The can's internal baffling and turbulent air diverter ensure maximum separation of oil particles from PCV/CCV air, directing contaminants to sink to the bottom while allowing only clean air to pass through the 50-micron bronze filter to your intake. This process helps reduce carbon deposits, maintain optimal engine performance, and protect critical components such as the intercooler and intake manifold. The inclusion of a removable drain plug simplifies maintenance, enabling easy removal of accumulated oil without disassembly or replacement of filtration parts. Unlike many air-oil separators, this catch can is not heated, allowing it to condense low-octane vapors and contaminated fuel vapors effectively. Its design traps blow-by gases permanently, avoiding the need to drain back into the oil pan, which can help prevent oil contamination and improve overall engine longevity. Installation is further simplified with the top mounting setup, offering multiple angles for secure placement. The Mishimoto oil catch can is fully washable, making it a cost-effective and environmentally friendly solution for daily drivers and performance enthusiasts alike. It defends vital engine components from oil blow-by, ensuring your vehicle runs cleaner, more efficiently, and with reduced maintenance concerns. This product is a vital addition for those seeking to optimize engine health and performance while maintaining a tidy intake system.

Features:

• Defends intercooler, intake system, and essential components from oil blow-by

• Separates oil particles from PCV/CCV air using 50-micron bronze filter

• 100% billet 6061 aluminum sealed can for durability and corrosion resistance

• Internal baffling and turbulence diverter enhance oil separation efficiency

• Removable drain plug allows for easy maintenance and oil removal

• Multiple mounting angles for flexible installation options

• Washable design for long-term reuse and cost savings

Air Freight Prohibited: false
Not Carb Approved: false
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: N/A
Carb Acknowledgement Required: false
Regular Stock: t
Units Per Sku: 1
