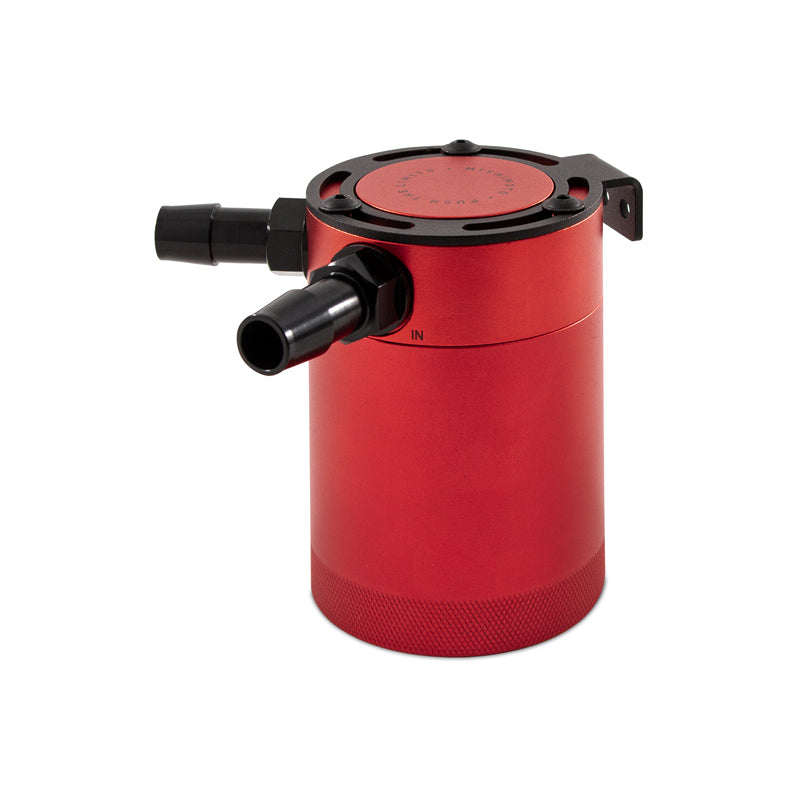

Mishimoto Compact Baffled Oil Catch Can - 2-Port Aluminum Oil Separator for PCV and CCV Systems

Mishimoto is proud to announce the release of our Compact Baffled Oil Catch Can, available in a two-port or three-port option. With years of oil catch can research and development time, Mishimoto has created the most effective compact oil catch can on the market. The Mishimoto Compact Baffled Oil Catch Can was designed to separate oil particles from the PCV/CCV air that would normally have just been routed back to your intake. The internal air diverter turbulates the air longer and ensures all the oil sinks to the bottom of the can, leaving nothing but clean air to pass through the 50 micron bronze filter to the intake. An internal baffle keeps the collected oil from splashing around under race conditions. This oil catch can features two ports, one inlet and one outlet, for easy installation on CCV and PCV systems. The 100-percent billet, 6061 aluminum can features 3/8in NPT threads at the inlet, outlet, and drain area and includes two black nylon fittings to make installation effortless. For maximum fitment options, the top mounting setup allows the can to be mounted from multiple angles. To make maintenance easy, the drain plug can be removed to allow for a return to the oil pan. The can is also 100-percent washable, unlike many other cans that require you to replace your filtration system.Our catch cans are different from most air-oil-separator (AOS) systems on a few levels. First, our catch cans are not heated. This means that all of the blow-by is able to condense in the can, including low-octane oil vapors and contaminated fuel vapors. Most AOS systems also drain the blow-by back into the oil pan, while our catch cans trap the blow-by and keep it out of the engine permanently. If you've seen what We've seen in the bottom of our catch cans, you won't want that draining back into your oil either. Engine oil catch can kit designed to capture oil vapors and prevent buildup in the intake system. Helps maintain efficiency, reduce carbon deposits, and improve performance with durable components and easy installation.

• Defends intercooler, intake system, and essential components from oil blow-by
• Separates oil particles from PCV/CCV air using 50 micron bronze filter
• 100-percent billet 6061 aluminum sealed can

The Mishimoto Compact Baffled Oil Catch Can (Part Number: MMBCC-CBTWO-RD) is engineered to effectively capture oil vapors and prevent buildup in your vehicle's intake system, thereby enhancing performance and longevity. Constructed from 100% billet 6061 aluminum, this can features a sleek red finish and offers durability combined with lightweight design. Its internal baffle turbulates the air longer, ensuring oil particles sink to the bottom, while a 50-micron bronze filter allows clean air to pass through, reducing carbon deposits and maintaining engine efficiency. The two-port configuration provides straightforward installation on PCV and CCV systems, with 3/8-inch NPT threads at the inlet, outlet, and drain areas, complemented by black nylon fittings for effortless setup.

Features:

• Seals with internal baffle to prevent oil splashing during high-performance driving

• Contains a 50-micron bronze filter to efficiently separate oil particles from air

• Constructed from 100% billet 6061 aluminum for strength and corrosion resistance

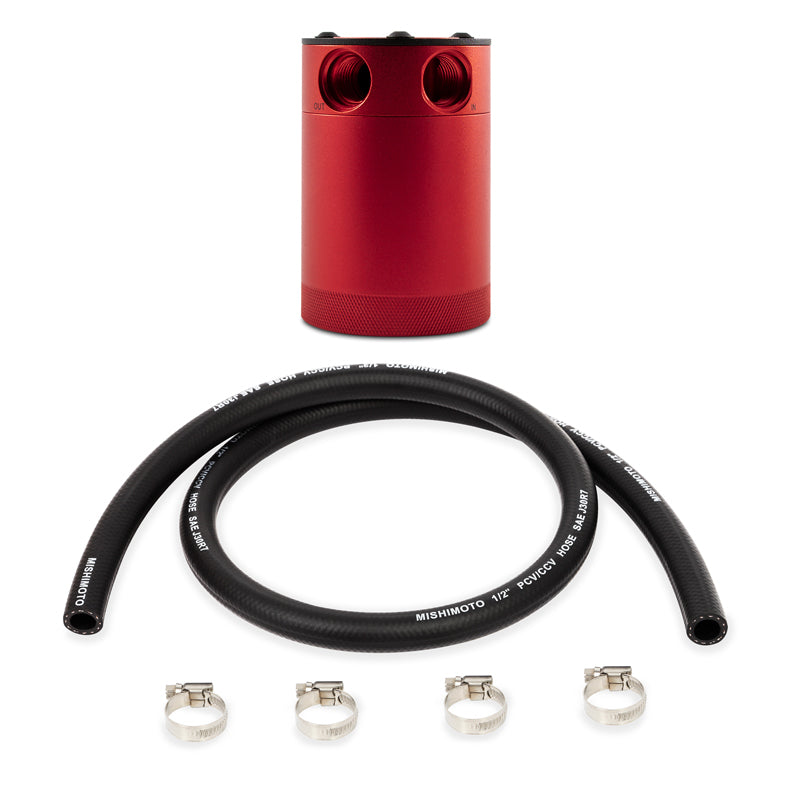

• Includes two black nylon fittings and multiple mounting angles for flexible installation

• Easily removable drain plug for maintenance and oil disposal, washable design for long-term use

• Designed to trap blow-by gases permanently, preventing oil vapors from returning to the engine

• Red anodized finish adds style and corrosion resistance

• Compatible with existing PCV and CCV systems, simplifying upgrade process

Air Freight Prohibited: false
Not Carb Approved: false
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: N/A
Carb Acknowledgement Required: false
Regular Stock: t
Units Per Sku: 1
