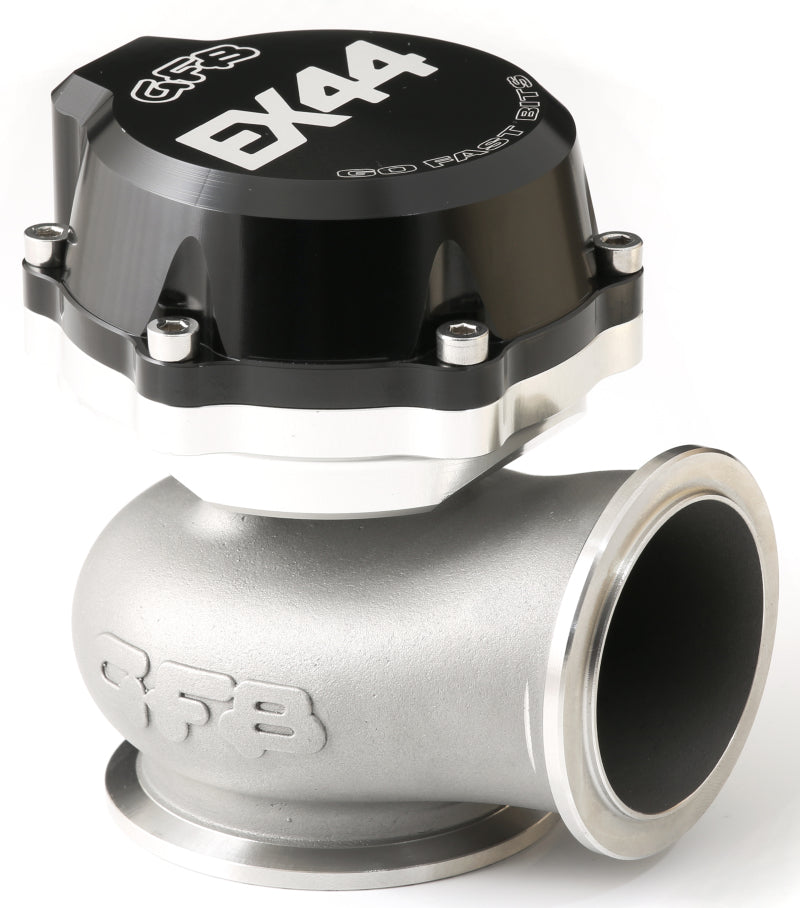

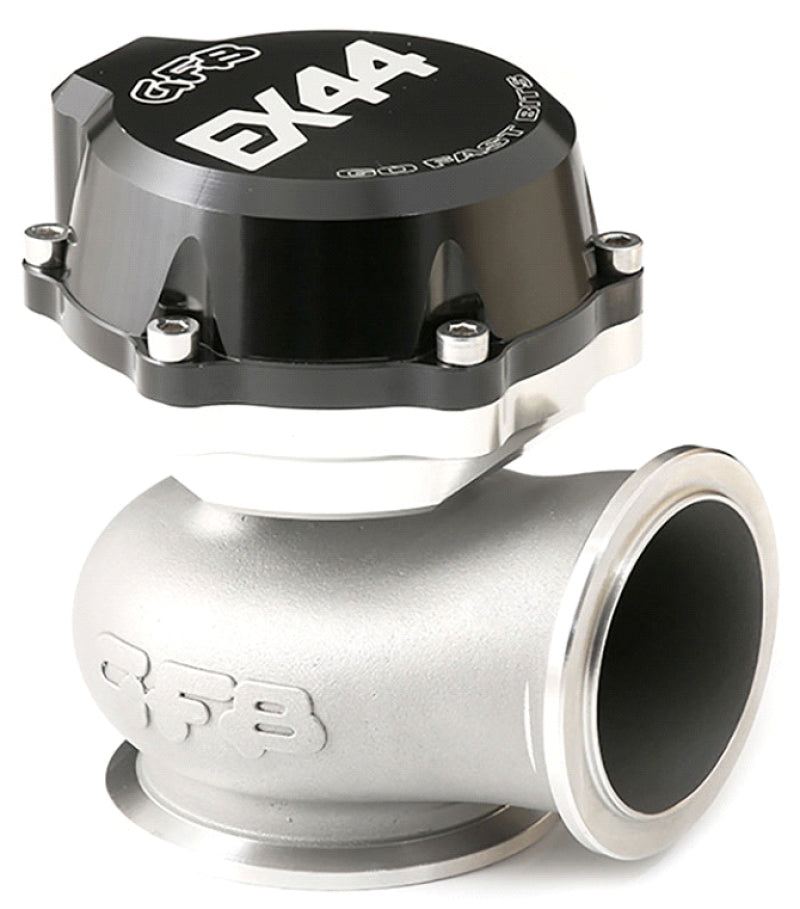

Go Fast Bits GFB 44mm V-Band External Style Wastegate - High-Performance Boost Control

The 7002 wastegate features an investment cast body made from 253MA chromium-nickel stainless steel, a one-piece stainless steel valve, and a nomex reinforced diaphragm to cope with the extreme conditions and harsh environment of high-boost and exhaust temperatures. ? 44MM VALVE, ? V-BAND INLET AND OUTLET (DIRECTLY COMPATIBLE WITH TIAL MV-R FLANGES), ? 100MM OVERALL HEIGHT, ? ADDITIONAL SPRING AVAILABLE SEPARATELY IS 7PSI (MIDDLE), ? SUPPLIED WITH 10PSI (OUTER) SPRING AND 5PSI (INNER) SPRINGS ? USE SEPARATE OR TOGETHER FOR BASE BOOST PRESSURES OF 5, 10, OR 15PSI, ? COMBINE SPRINGS TO ACHIEVE BASE BOOST PRESSURES OF 5, 7, 10, 12, 15, 17 AND 22PSI, 44mm V-Band Style external style wastegate. Universal

• MOST COMPACT WASTEGATE RANGE ON THE MARKET BODY, VALVE, SEAT AND ALL MOUNTING HARDWARE IS CNC MACHINED FROM HIGH-TEMP STAINLESS STEEL ACTUATOR HOUSING CNC MACHINED FROM BILLET 6061-T6 ALUMINIUM NOMEX-REINFORCED SILICONE DIAPHRAGM
• INTERNAL SHROUD PROTECTS VALVE STEM FROM EXCESSIVE HEAT AND PREVENTS CARBON-RELATED STICKING V-BAND CLAMP MOUNTING SYSTEM Manufactured In Australia under ISO 9001

The Go Fast Bits GFB 7002 wastegate is engineered for demanding high-boost applications, featuring an investment cast body made from durable 253MA chromium-nickel stainless steel. Its robust construction includes a one-piece stainless steel valve and a Nomex-reinforced silicone diaphragm, ensuring reliable operation under extreme exhaust temperatures and harsh environments. The 44mm valve and V-band inlet and outlet connections provide a seamless, direct fit with TIAL MV-R flanges, simplifying installation and maintenance. With an overall height of approximately 3.7 inches, this wastegate offers a compact design without compromising performance. The package includes a 10 PSI spring, with additional springs available to customize boost levels from as low as 5 PSI up to 22 PSI by combining springs in various configurations. This flexibility allows precise control over boost pressure, making it ideal for a wide range of high-performance vehicles. The V-band clamp mounting system and internal shroud protect the valve stem from excessive heat and prevent carbon-related sticking, ensuring consistent operation over time. Manufactured in Australia under ISO 9001 standards, the GFB 7002 is a reliable choice for enthusiasts seeking a high-quality, compact wastegate that can handle extreme conditions and deliver precise boost control. Its CNC-machined components and high-temp materials further enhance durability and performance, making it suitable for turbocharged applications demanding maximum reliability and efficiency.

Features:

• Investment cast body made from 253MA stainless steel for durability and high-temperature resistance

• 44mm V-band inlet and outlet connections compatible with TIAL MV-R flanges

• Includes 10 PSI spring, with additional springs for boost adjustment from 5 to 22 PSI

• CNC-machined from high-temp stainless steel with a Nomex-reinforced silicone diaphragm

• Internal shroud protects valve stem from heat and prevents sticking

• Compact, V-band style external wastegate with a height of approximately 3.7 inches

• Manufactured in Australia under ISO 9001 standards for quality assurance

Air Freight Prohibited: false
Not Carb Approved: false
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: N/A
Carb Acknowledgement Required: false
Regular Stock: t
Units Per Sku: 1
