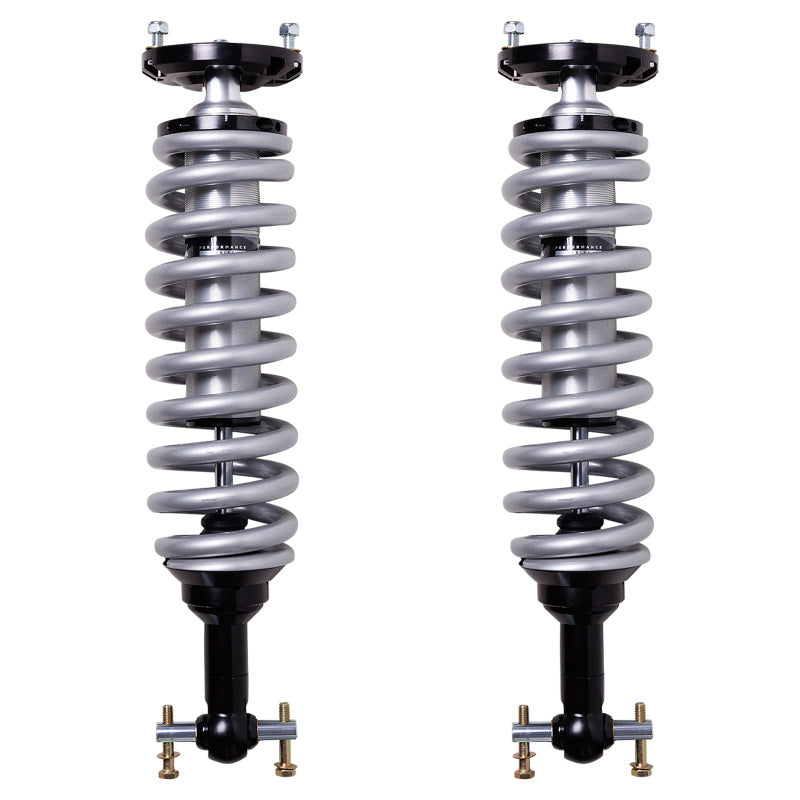

FOX Performance Series 07-18 GM 1500 2.5 Inch Lift Front Coilover Shock - Part #887-02-012

FOX Performance Series shocks contain the latest in shock technology to transform the performance of your Truck or SUV. They use our race-proven damping control to provide a comfortable on-road ride and predictable off-road handling in even the toughest conditions. Application specific valving to maximize performance. *IMPORTANT*: Cast aluminum lower control arm required for '16-18 model year trucks for CV boot clearance. - OE aluminum lower control arm reference numbers = 22853473 and 22853474, or equivalents. - Cast aluminum and stamped steel lower control arms have the same ball joint taper. - Cast steel LCAs have a different ball joint taper and would not be usable for ’16-'18 model years.

• 2.5” Impact extruded 6061-T6 aluminum shock body
• High-flow velocity-sensitive damping
• Type II clear-anodized body plating
• Fully rebuildable and re-tunable
• Internal floating piston (IFP)
• Application specific tune
• 5/8” hard chrome shaft
• Corrosion resistant

Upgrade your Chevrolet Silverado 1500 with the FOX Performance Series 2.5-inch lift front coilover shock, designed specifically for 2007-2018 models. Featuring race-proven damping control, these shocks enhance both on-road comfort and off-road handling, ensuring a smoother ride across tough terrains. The application-specific valving maximizes performance, providing predictable and reliable handling whether you're navigating city streets or rugged trails. Constructed with a high-flow velocity-sensitive damping system, the FOX coilovers deliver precise control while maintaining comfort during daily driving or intense off-road adventures. The fully rebuildable and re-tunable design allows for easy maintenance and customization, extending the lifespan and performance of your suspension system. The impact-extruded 6061-T6 aluminum shock body, finished with a clear-anodized coating, offers excellent durability and corrosion resistance. Equipped with a 5/8 inch hard chrome shaft, these shocks are built to withstand harsh conditions while maintaining optimal performance. It is important to note that a cast aluminum lower control arm is required for 2016-2018 trucks for CV boot clearance, with OE aluminum lower control arm references of 22853473 and 22853474, or their equivalents. These shocks are compatible with both cast aluminum and stamped steel lower control arms that share the same ball joint taper, but are not suited for cast steel lower control arms due to different tapers. Designed for vehicles with a 2-3 inch lift, these coilovers are a perfect upgrade for those seeking improved off-road capability and a commanding stance. The FOX 07-18 GM 1500 2.5-inch lift coilover shocks are an essential component for serious truck enthusiasts aiming for enhanced performance, durability, and vehicle customization.

Features:

• 2.5-inch impact extruded 6061-T6 aluminum shock body for durability

• High-flow velocity-sensitive damping for precise control

• Type II clear-anodized body plating for corrosion resistance

• Fully rebuildable and re-tunable for extended lifespan

• Internal floating piston (IFP) for consistent damping performance

• Application-specific tune for optimized handling

• 5/8-inch hard chrome shaft for strength and durability

• Designed for 2-3 inch lift applications on GM 1500 trucks

• Requires cast aluminum lower control arm for 2016-2018 models for CV boot clearance

• Compatible with OE aluminum or stamped steel lower control arms sharing the same ball joint taper

Air Freight Prohibited: false
Not Carb Approved: false
Carb Acknowledgement Required: false
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: N/A
Regular Stock: t
Units Per Sku: 1
