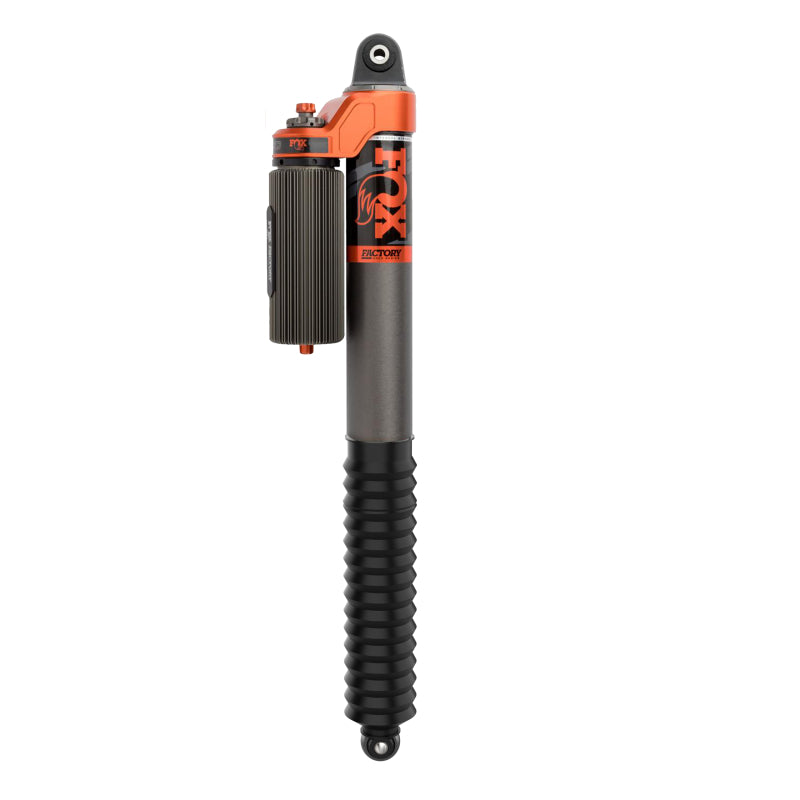

FOX Factory Race Series 3.0 Internal Bypass Shock for 2021+ Ford F-150 – Rear, 0-1 inch Lift

FOX Factory Race Series 3.0 Internal Bypass shocks for the 14th generation Ford F-150 deliver position-sensitive damping technology, Dual Speed Compression (DSC) adjustment, and high-speed ready performance in a bolt-on kit. Patented Internal Bypass technology allows for multiple zones of damping control. The result is a comfortable, confident ride with increased damping force through rough terrain. Internal bypass shocks produce more force progressively to control hard bottom-outs, prevent harsh top-outs, and provide an initial catch for landing. Shock fluid bypasses the main piston through aseries of bleed holes in the ride zone. As the shock extends past the ride zone in rebound or compression, the bleed holes terminate, forcing fluid through the main piston. The Factory Race Series shocks also stay cool by utilizing a Recirculating Reservoir Bridge. The bridge circulates shock fluid between the finned external reservoir and body using checked ports. Type III anodization prevents corrosion and wear of the 3-inch diameter aluminum bodies.The DSC adjuster allows you to dial in your F-150 for load, environment, and driving style.FOX Internal Bypass shocks deliver the support and confidence you need while driving Mach-3 through rugged terrain. Experience race-bred performance next time you leave the pavement. Application specific valving to maximize performance. Uncompromised performance through FOX’s patented internal bypass technology delivers the feel of near-endless suspension travel. Exclusive internal bypass technology allows oil to flow around the piston at some points of the stroke – while creating humongous pressure at other points – supporting the vehicle like no other product can. Floating through terrain is accomplished with FOX’s ride zone – combining a race-developed shock piston, internal bypass and Dual Speed Compression adjustment – allowing fine tuning for weight, terrain and speed. Dominate any terrain with the brute strength of 3- and 2.5-inch aluminum bodies, cactus cooler reservoirs and 7/8” shafts with redundant seals, all proven in the harshest of environments under the toughest of conditions.

• Finned External Reservoir System Dissipates Heat Fast
• Black Anodized CNC Machined Aluminum Components
• Quick Switch Compression And Rebound Adjusters

The FOX Factory Race Series 3.0 Internal Bypass shocks designed for the 14th generation Ford F-150 provide advanced damping technology tailored for demanding off-road conditions. Featuring position-sensitive damping and Dual Speed Compression (DSC) adjustment, these shocks are engineered for precise control and superior ride quality. The patented internal bypass system creates multiple zones of damping, offering a progressive increase in damping force to effectively manage rough terrain, hard bottom-outs, and harsh top-outs. This technology ensures a smoother, more confident ride by allowing oil to flow around the piston at specific points in the stroke, supporting the vehicle through a variety of driving conditions.

Constructed with high-quality, corrosion-resistant materials, the FOX 3.0 shocks utilize Type III anodization on 3-inch diameter aluminum bodies to withstand harsh environments. The external finned reservoir system helps dissipate heat rapidly, maintaining optimal performance during extended off-road use. The shocks feature a Recirculating Reservoir Bridge that circulates shock fluid to regulate temperature, preventing overheating and ensuring consistent damping performance. Quick-adjust handles for compression and rebound allow for easy tuning to match load, terrain, and driving style, making these shocks highly adaptable for various off-road adventures.

Built with robust 7/8-inch shafts, CNC-machined components, and redundant seals, the FOX 3.0 Internal Bypass shocks are designed for durability and strength in extreme conditions. These shocks include a finned external reservoir for efficient heat dissipation and are finished with a black anodized coating for added corrosion resistance. Compatible with 0-1 inch lift Ford F-150 models from 2021 and 2022, they offer a significant upgrade over stock suspension components, delivering improved support, handling, and control on rugged terrains. Whether for trail riding, desert racing, or off-road exploration, the FOX Factory Race Series shocks provide race-bred performance, ensuring your F-150 is ready for any challenge you encounter.

Features:

• Position-sensitive damping technology for enhanced control

• Dual Speed Compression (DSC) adjustment for fine-tuning

• Patented internal bypass zones for progressive damping

• Finned external reservoir system for rapid heat dissipation

• Type III anodized aluminum bodies for corrosion resistance

• Recirculating Reservoir Bridge for temperature regulation

• High-strength 7/8 inch shafts with redundant seals

• Quick switch compression and rebound adjusters

• Compatible with 0-1 inch lift Ford F-150 (2021+)

Fitment:
2021 Ford F-150 King Ranch
2021 Ford F-150 Lariat
2021 Ford F-150 Limited
2021 Ford F-150 Platinum
2021 Ford F-150 Police Responder
2021 Ford F-150 Raptor
2021 Ford F-150 SSV
2021 Ford F-150 Tremor
2021 Ford F-150 XL
2021 Ford F-150 XLT
2022 Ford F-150 King Ranch
2022 Ford F-150 Lariat
2022 Ford F-150 Limited
2022 Ford F-150 Platinum
2022 Ford F-150 Police Responder
2022 Ford F-150 Raptor
2022 Ford F-150 SSV
2022 Ford F-150 Tremor
2022 Ford F-150 XL
2022 Ford F-150 XLT
2023 Ford F-150 King Ranch
2023 Ford F-150 Lariat
2023 Ford F-150 Limited
2023 Ford F-150 Platinum
2023 Ford F-150 Police Responder
2023 Ford F-150 Raptor
2023 Ford F-150 Raptor R
2023 Ford F-150 SSV
2023 Ford F-150 Tremor
2023 Ford F-150 XL
2023 Ford F-150 XLT
2024 Ford F-150 King Ranch
2024 Ford F-150 Lariat
2024 Ford F-150 Platinum
2024 Ford F-150 Police Responder
2024 Ford F-150 Raptor
2024 Ford F-150 Raptor R
2024 Ford F-150 SSV
2024 Ford F-150 STX
2024 Ford F-150 Tremor
2024 Ford F-150 XL
2024 Ford F-150 XLT

Air Freight Prohibited: false
Not Carb Approved: false
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: N/A
Carb Acknowledgement Required: false
Regular Stock: t
Units Per Sku: 1
