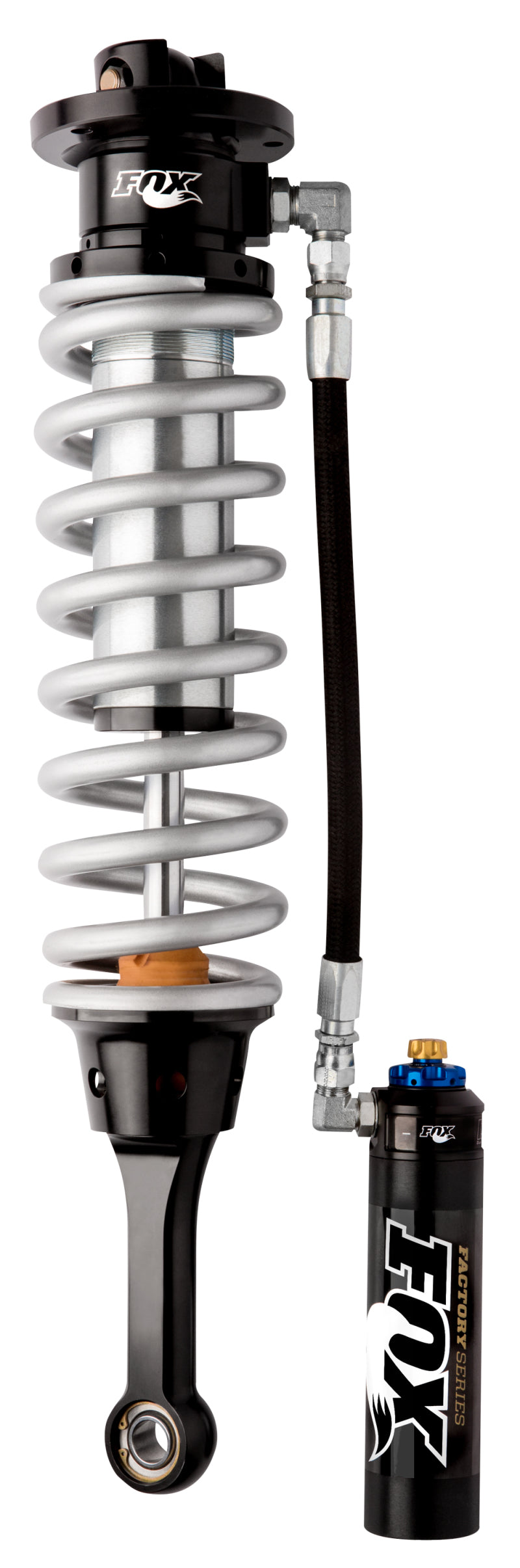

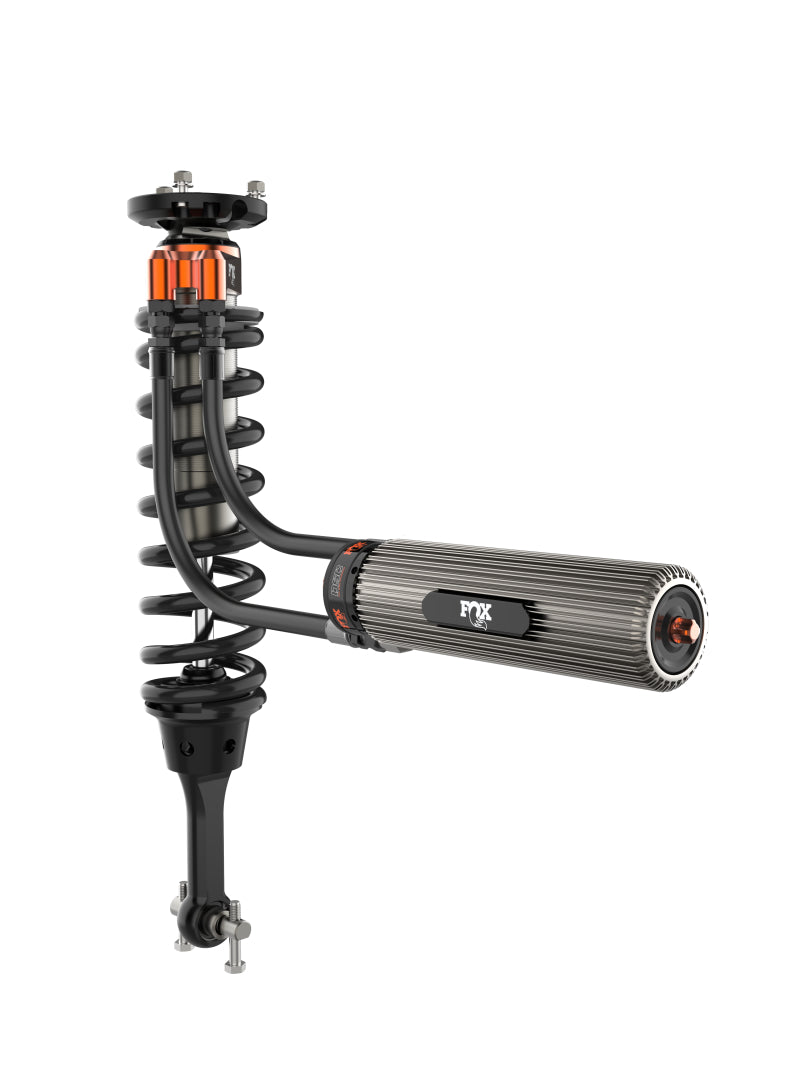

FOX Factory Race Series 3.0 Internal Bypass Coilovers for 2021+ Ford F-150 with 2.5-inch Lift and UCA Front

FOX Factory Race Series 3.0 Internal Bypass shocks for the 14th generation Ford F-150 deliver position-sensitive damping technology, Dual Speed Compression (DSC) adjustment, and high-speed ready performance in a bolt-on kit. Patented Internal Bypass technology allows for multiple zones of damping control. The result is a comfortable, confident ride with increased damping force through rough terrain. Internal bypass shocks produce more force progressively to control hard bottom-outs, prevent harsh top-outs, and provide an initial catch for landing. Shock fluid bypasses the main piston through aseries of bleed holes in the ride zone. As the shock extends past the ride zone in rebound or compression, the bleed holes terminate, forcing fluid through the main piston. The Factory Race Series shocks also stay cool by utilizing a Recirculating Reservoir Bridge. The bridge circulates shock fluid between the finned external reservoir and body using checked ports. Type III anodization prevents corrosion and wear of the 3-inch diameter aluminum bodies.The DSC adjuster allows you to dial in your F-150 for load, environment, and driving style.FOX Internal Bypass shocks deliver the support and confidence you need while driving Mach-3 through rugged terrain. Experience race-bred performance next time you leave the pavement. Application specific valving to maximize performance. Uncompromised performance through FOX’s patented internal bypass technology delivers the feel of near-endless suspension travel. Exclusive internal bypass technology allows oil to flow around the piston at some points of the stroke – while creating humongous pressure at other points – supporting the vehicle like no other product can. Floating through terrain is accomplished with FOX’s ride zone – combining a race-developed shock piston, internal bypass and Dual Speed Compression adjustment – allowing fine tuning for weight, terrain and speed. Dominate any terrain with the brute strength of 3- and 2.5-inch aluminum bodies, cactus cooler reservoirs and 7/8” shafts with redundant seals, all proven in the harshest of environments under the toughest of conditions.

• Finned External Reservoir System Dissipates Heat Fast
• Black Anodized CNC Machined Aluminum Components
• Quick Switch Compression And Rebound Adjusters
• Performance Tuned Specifically For Raptor
• Live Valve Terrain Adaptive Technology

Upgrade your 2021 and newer Ford F-150 with the FOX Factory Race Series 3.0 Internal Bypass coilovers, engineered to deliver race-bred performance and exceptional control. Featuring position-sensitive damping technology, these shocks adjust to changing terrain and driving conditions, providing a smoother ride over rough surfaces. The patented internal bypass system allows for multiple zones of damping control, supporting both comfort and confidence during aggressive off-road driving. As the shock extends past the ride zone, fluid bypasses the main piston through bleed holes, ensuring progressive force that minimizes harsh impacts and hard bottom-outs while maintaining an initial catch for smooth landings. The internal bypass technology creates a near-endless suspension travel feel, supporting the vehicle through rugged terrain with superior support and stability. The dual speed compression adjustment enables precise tuning for load, environment, and driving style, giving you full control over shock performance. Constructed with 3-inch diameter aluminum bodies and a finned external reservoir, these coilovers efficiently dissipate heat to prevent fade during extended off-road sessions. The black anodized CNC-machined components ensure durability and corrosion resistance, while the quick switch compression and rebound adjusters allow for easy tuning on the fly. Designed specifically for the Ford F-150, these coilovers are performance-tuned to maximize off-road capabilities and are equipped with a live valve terrain adaptive technology for real-time adjustments based on terrain conditions. The robust design includes 2.5-inch aluminum bodies, 7/8-inch shafts with redundant seals, and a recirculating reservoir bridge that circulates shock fluid for optimal temperature control. Whether tackling rocky trails or high-speed desert runs, these coilovers provide the support, strength, and adjustability needed for serious off-road enthusiasts. Experience the difference that race-quality suspension components can make on your next adventure, ensuring a confident, controlled ride every time.

Features:

• Finned external reservoir system dissipates heat quickly for sustained performance

• Black anodized CNC-machined aluminum components for durability and corrosion resistance

• Quick switch compression and rebound adjusters for easy tuning

• Performance tuned specifically for Ford F-150 models

• Live valve terrain adaptive technology for real-time terrain adjustments

Fitment:
2021 Ford F-150 King Ranch
2021 Ford F-150 Lariat
2021 Ford F-150 Limited
2021 Ford F-150 Platinum
2021 Ford F-150 Police Responder
2021 Ford F-150 Raptor
2021 Ford F-150 SSV
2021 Ford F-150 Tremor
2021 Ford F-150 XL
2021 Ford F-150 XLT
2022 Ford F-150 King Ranch
2022 Ford F-150 Lariat
2022 Ford F-150 Limited
2022 Ford F-150 Platinum
2022 Ford F-150 Police Responder
2022 Ford F-150 Raptor
2022 Ford F-150 SSV
2022 Ford F-150 Tremor
2022 Ford F-150 XL
2022 Ford F-150 XLT
2023 Ford F-150 King Ranch
2023 Ford F-150 Lariat
2023 Ford F-150 Limited
2023 Ford F-150 Platinum
2023 Ford F-150 Police Responder
2023 Ford F-150 Raptor
2023 Ford F-150 Raptor R
2023 Ford F-150 SSV
2023 Ford F-150 Tremor
2023 Ford F-150 XL
2023 Ford F-150 XLT
2024 Ford F-150 King Ranch
2024 Ford F-150 Lariat
2024 Ford F-150 Platinum
2024 Ford F-150 Police Responder
2024 Ford F-150 Raptor
2024 Ford F-150 Raptor R
2024 Ford F-150 SSV
2024 Ford F-150 STX
2024 Ford F-150 Tremor
2024 Ford F-150 XL
2024 Ford F-150 XLT

Air Freight Prohibited: false
Not Carb Approved: false
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: N/A
Carb Acknowledgement Required: false
Regular Stock: t
Units Per Sku: 1
