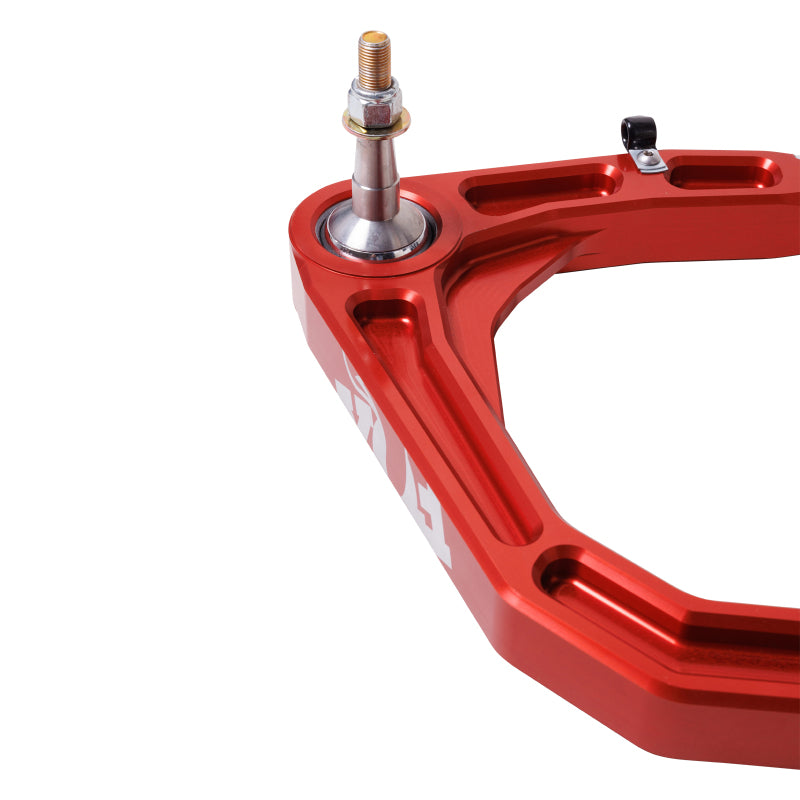

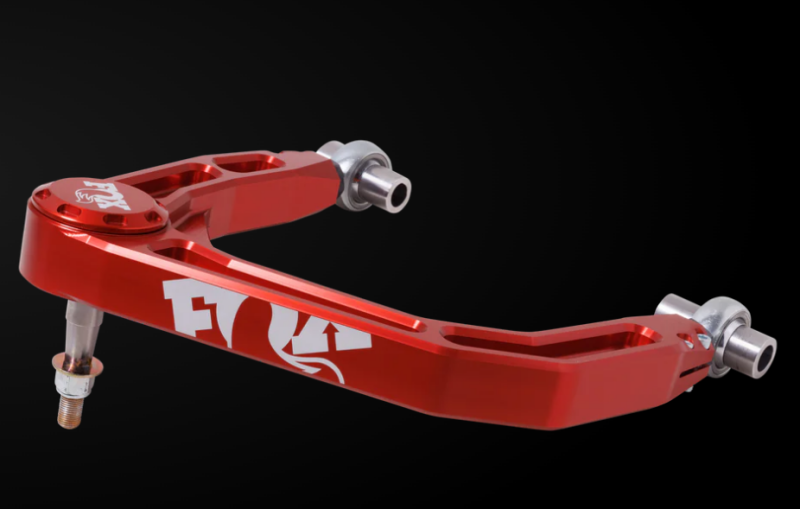

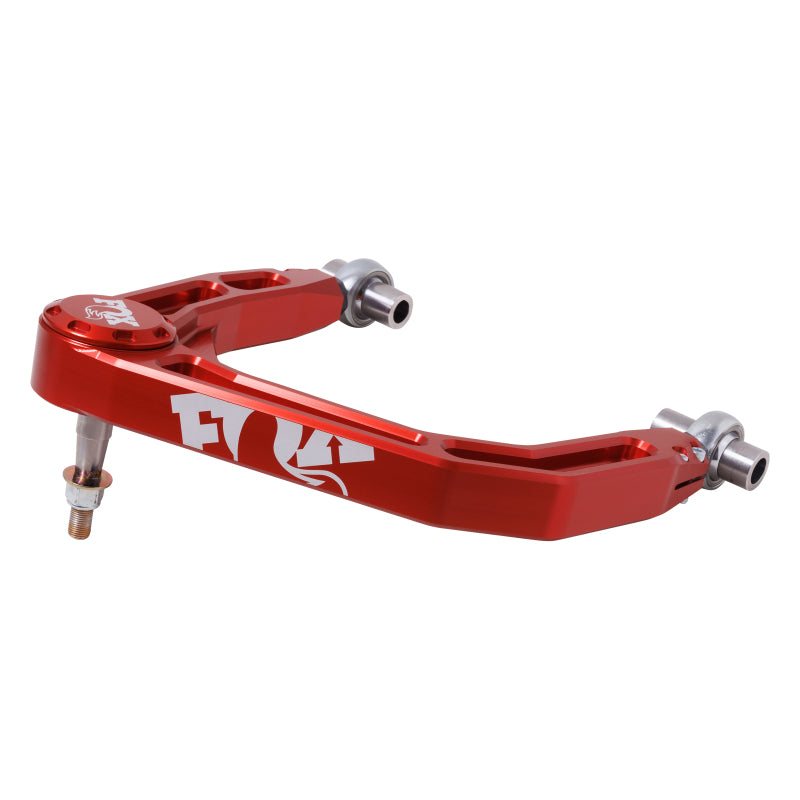

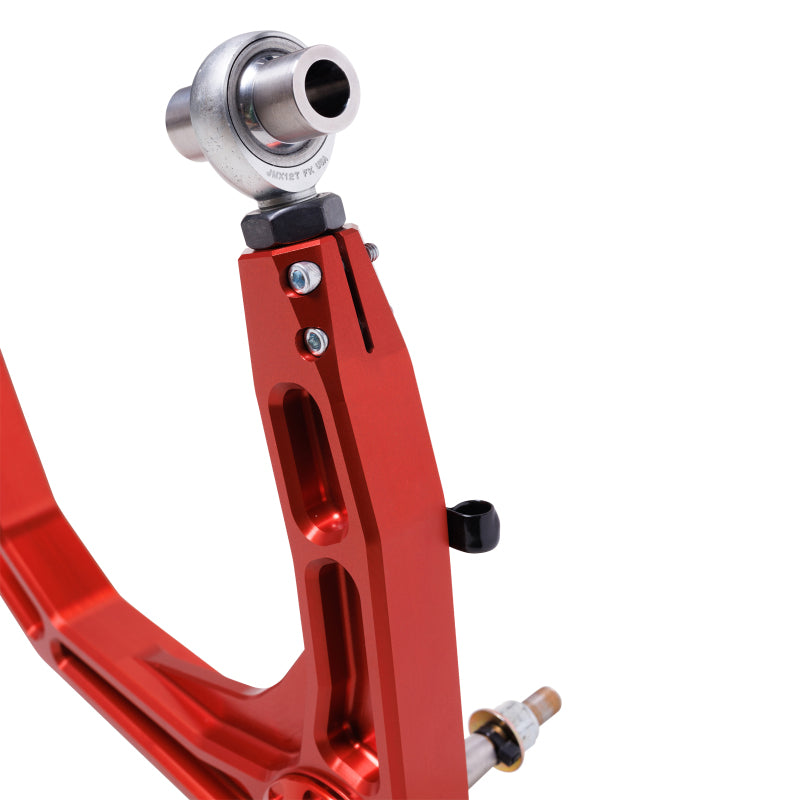

FOX 19-24 GM 1500 Billet Upper Control Arm - Orange for Chevrolet Silverado & GMC Sierra (2019-2024)

The Upper Control Arms (UCA) are consider the first step when building a mid-travel truck, to unlock the vehicles off-road capability through tough terrain. Our engineers spent time evaluating suspension geometry and optimized the UCAs specifically for the intended vehicle. Lifting a vehicle compromises the OEM alignment specification by introducing too much caster, FOX UCAs provide the necessary correction to maintain the vehicle's alignment while maximizing droop travel for more articulation off-road. Additional caster helps reduce wander at high-speed for more confidence behind the wheel. You'll notice a precise comfortable ride on rougher roads and trails. GMC SIERRA & CHEVY SILVERADO | UPPER CONTROL ARM | (2019-2024) FOX Upper Control Arms feature a lifetime warranty on the aluminum arm. This is backed by a 12 month warranty on all serviceable components and finishes.

• Stainless-steel taper misalignment spacers and 12-point bolts at the steering knuckle ensure a reliable and precise fit. Bolt-on the UCAs without any modification to the vehicle chassis
• The 3/4" chromoly heim joints are fully adjustable allowing for fine tuning of caster and camber. The Kevlar fiber reinforced PTFE liner to prevent binding and long-lasting precision
• FOX upper control arms are CNC machined in the USA from T6061 billet aluminum. Type II anodization offers superior corrosion resistance and feature a laser etched FOX logo
• 1.25" uniballs are comprised of a hard chrome plated ball and low carbon steel race to increase service life. A PTFE liner mitigates noise to keep the ride comfortable

Upgrade your Chevrolet Silverado or GMC Sierra with the FOX 803-35-009 Billet Upper Control Arm, designed specifically for models from 2019 to 2024. Engineered to enhance off-road capability, these UCAs are the first step in building a mid-travel suspension system that unlocks your vehicle's potential on tough terrain. The precision-crafted design addresses the challenges of lifting a vehicle by correcting the suspension geometry, ensuring proper alignment and maximizing droop travel for improved articulation off-road. Additional caster benefits help reduce high-speed wander, providing more confidence during highway driving while delivering a smooth and controlled ride on rough roads and trails. The FOX UCAs are an essential upgrade for off-road enthusiasts seeking durability, precision, and improved handling.

Features:

• Stainless-steel taper misalignment spacers and 12-point bolts at the steering knuckle ensure a reliable and precise fit, allowing bolt-on installation without modifications.

• The 3/4" chromoly heim joints are fully adjustable, enabling fine-tuning of caster and camber for optimal alignment. The PTFE liner prevents binding and maintains long-lasting precision.

• CNC machined in the USA from T6061 billet aluminum, the FOX upper control arms feature Type II anodization for superior corrosion resistance and are laser-etched with the FOX logo for authenticity.

• 1.25" uniballs are constructed from a hard chrome-plated ball and low carbon steel race, increasing service life. A PTFE liner helps mitigate noise, ensuring a quiet, comfortable ride.

Air Freight Prohibited: false
Not Carb Approved: false
Carb Acknowledgement Required: false
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: N/A
Regular Stock: t
Units Per Sku: 1
