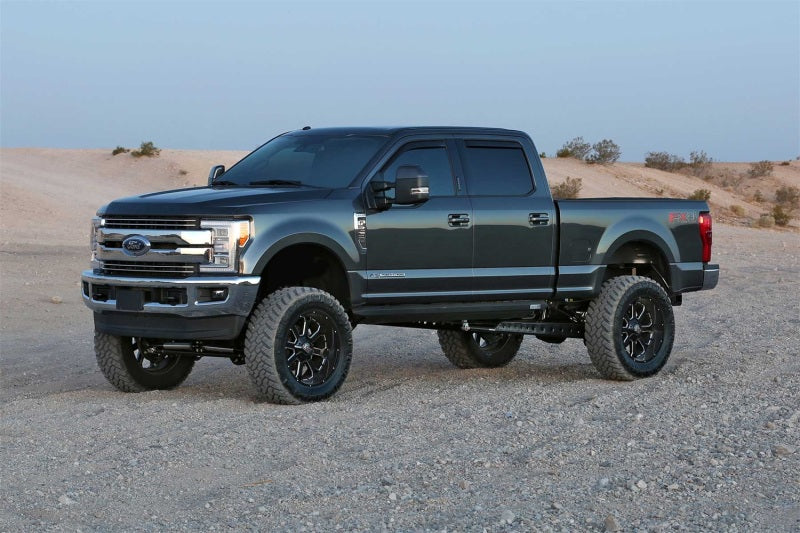

Fabtech FTS22276 8-inch 4-Link Conversion System for Ford Super Duty with Dirt Logic 4.0 Resi Coilover

Fabtechs 8 in. 4 Link Conversion System for the Ford Super Duty is designed to provide maximum suspension performance for both on and offroad use. The system replaces the factory Radius Arm suspension with heavy duty 4 Link components for increased strength and functionality. The system wi ll provide less caster change throughout the travel range which benefits on road driving. When offroad the 4 Link system will provide more articulation than a Radius Arm for increased terrain traversing at all speeds. Unique to this 8 in. system is Fabtechs extended length Track Bar to address the hyper sensitive steering box of the late model Super Duty. Fabtech is the only manufacturer with this exclusive system that offers proper steering performance. Fabtechs extended length Track Bar is 4 in. longer than stock and is offset to the driver side with a stout 1/4 in. thick steel mounting bracket. This design helps keep the Track Bar and Draglink closer to parallel than the factory angles to reduce push in the steering. The Track Bar allows for full lock steering of 15.50 wide tires w/ 4-3/4 in. BS wheels. Included in this system is the massive Dirt Logic 4.0 Resi Coilover Conversion for outstanding damping capacity offroad with a quality on road ride. The Coilover bolts in place of the factory coil spring without removal of the coil spring bucket. The giant 4 in. diameter aluminum remote reservoir mounts horizontally above the Coilover to allow for full compression travel with oversized tires. The Dirt Logic 4.0 Resi Coilover is the biggest and baddest on the market for the Ford Super Duty. Fabtechs 4 Link System has been proven in over 10 years of service in rugged commercial and military applications to ensure long life on your daily driven vehicle. High quality components with properly designed suspension geometry makes this Super Duty system the pinnacle of all suspensions. Comes with a free 5 year 60,000 mile powertrain warranty. Sway Bar Link Kit;

• Fabtech Heavy Duty 5 Ton Joints®
• Track Bar Relocation Bracket
• 2 In. OD Heavy Wall Links
• Extended Length Track Bar
• Rear Block And U-Bolt Kit
• Sway Bar Drop Brackets
• Rear Add-a-leaf Kit
• Pitman Arm

Upgrade your Ford Super Duty with Fabtech's FTS22276 8-inch 4-Link Conversion System, designed to deliver superior suspension performance both on and off the road. This comprehensive kit replaces the factory Radius Arm suspension with heavy-duty 4-Link components, significantly enhancing strength, articulation, and overall handling. The system's innovative design minimizes caster change throughout travel, resulting in improved on-road stability. Off-road, the increased articulation allows for better terrain traversal at all speeds, making it ideal for demanding off-road adventures. Unique to this system is Fabtech’s extended length track bar, which is four inches longer than stock and offset to the driver side. This feature, combined with a robust 1/4-inch steel mounting bracket, helps maintain proper steering geometry and reduces steering push, especially when using wide tires and wheels. The track bar's design ensures full lock steering with 15.50-inch wide tires and 4-3/4-inch backspacing wheels for confident control. Included in the system is the premium Dirt Logic 4.0 Resi Coilover, which offers exceptional damping capacity for off-road use without sacrificing on-road comfort. The coilover bolts directly in place of the factory spring, featuring a massive 4-inch diameter aluminum remote reservoir mounted horizontally above for full compression travel. With proven durability from over a decade of use in rugged commercial and military applications, the Dirt Logic 4.0 Coilover guarantees long-lasting performance. This kit also includes a sway bar link kit with heavy-duty 5-ton joints, track bar relocation bracket, extended length track bar, rear block and U-bolt kit, sway bar drop brackets, rear add-a-leaf kit, and a Pitman arm, ensuring comprehensive suspension enhancement. Designed with high-quality components and precise suspension geometry, Fabtech’s 4-Link System is the ultimate upgrade for your Ford Super Duty, offering improved off-road capability, on-road stability, and peace of mind with a free 5-year, 60,000-mile powertrain warranty.

Features:

• Heavy-duty 4-Link suspension replaces factory Radius Arm setup for increased durability and articulation.

• Extended length track bar, 4 inches longer than stock, with offset design to improve steering geometry and reduce push.

• Includes Fabtech's exclusive Dirt Logic 4.0 Resi Coilover for superior damping and off-road performance.

• Removable coilover design allows for easy installation without removing coil spring bucket.

• Remote reservoir mounted horizontally for full compression travel even with oversized tires.

• High-quality components built for rugged use, proven in commercial and military applications.

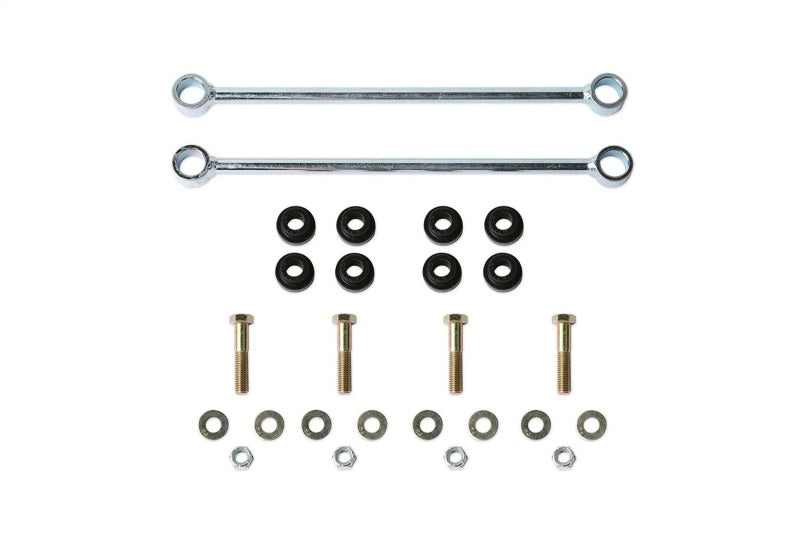

• Complete kit includes sway bar link kit, track bar relocation bracket, rear block and U-bolt kit, and additional suspension components.

• Designed to fit 2017 Ford F-250 and F-350 Super Duty models with 8-inch lift configuration.

Fitment:
2017 Ford F-250 Super Duty King Ranch
2017 Ford F-250 Super Duty Lariat
2017 Ford F-250 Super Duty Platinum
2017 Ford F-250 Super Duty XL
2017 Ford F-250 Super Duty XLT
2017 Ford F-350 Super Duty King Ranch
2017 Ford F-350 Super Duty Lariat
2017 Ford F-350 Super Duty Platinum
2017 Ford F-350 Super Duty XL
2017 Ford F-350 Super Duty XLT
2018 Ford F-250 Super Duty King Ranch
2018 Ford F-250 Super Duty Lariat
2018 Ford F-250 Super Duty Limited
2018 Ford F-250 Super Duty Platinum
2018 Ford F-250 Super Duty XL
2018 Ford F-250 Super Duty XLT
2018 Ford F-350 Super Duty King Ranch
2018 Ford F-350 Super Duty Lariat
2018 Ford F-350 Super Duty Limited
2018 Ford F-350 Super Duty Platinum
2018 Ford F-350 Super Duty XL
2018 Ford F-350 Super Duty XLT
2019 Ford F-250 Super Duty King Ranch
2019 Ford F-250 Super Duty Lariat
2019 Ford F-250 Super Duty Limited
2019 Ford F-250 Super Duty Platinum
2019 Ford F-250 Super Duty XL
2019 Ford F-250 Super Duty XLT
2019 Ford F-350 Super Duty King Ranch
2019 Ford F-350 Super Duty Lariat
2019 Ford F-350 Super Duty Limited
2019 Ford F-350 Super Duty Platinum
2019 Ford F-350 Super Duty XL
2019 Ford F-350 Super Duty XLT
2020 Ford F-250 Super Duty King Ranch
2020 Ford F-250 Super Duty Lariat
2020 Ford F-250 Super Duty Limited
2020 Ford F-250 Super Duty Platinum
2020 Ford F-250 Super Duty XL
2020 Ford F-250 Super Duty XLT
2020 Ford F-350 Super Duty King Ranch
2020 Ford F-350 Super Duty Lariat
2020 Ford F-350 Super Duty Limited
2020 Ford F-350 Super Duty Platinum
2020 Ford F-350 Super Duty XL
2020 Ford F-350 Super Duty XLT
2021 Ford F-250 Super Duty King Ranch
2021 Ford F-250 Super Duty Lariat
2021 Ford F-250 Super Duty Limited
2021 Ford F-250 Super Duty Platinum
2021 Ford F-250 Super Duty XL
2021 Ford F-250 Super Duty XLT
2021 Ford F-350 Super Duty King Ranch
2021 Ford F-350 Super Duty Lariat
2021 Ford F-350 Super Duty Limited
2021 Ford F-350 Super Duty Platinum
2021 Ford F-350 Super Duty XL
2021 Ford F-350 Super Duty XLT

Air Freight Prohibited: false
Not Carb Approved: false
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: N/A
Carb Acknowledgement Required: false
Regular Stock: t
Units Per Sku: 1
