Fabtech 03-05 Hummer H2 4WD Performance Lift System with Shocks – 6 Inch Lift for Factory Air Bags

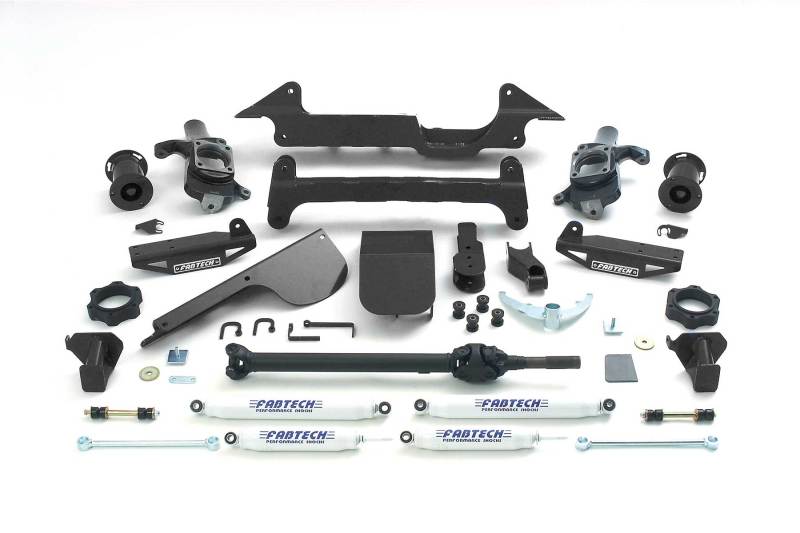

Our Hummer system is constructed much like all of our IFS systems with extended steering knuckles and high clearance crossmembers but the similarities stop there. To properly address the H2's fulltime transfer case we include a CV style front driveshaft with this system to provide smooth driveline operation. Also unique to this system is two 1/4'' thick skid plates, one for the front differential and one for the transfer case. Rear lift on factory air bag H2's comes from a super stout bag spacer while coil spring models receive replacement coil springs that are driver and passenger specific. Performance Lift System w/Shocks; w/Performance Shocks; 6 in. Lift; w/OE Air Bags; TIRE SIZE - 37/12.50R17 Wheel - 17X10 W/4 5/8" BS W/MINOR TRIMMING; TIRE SIZE - 37/13.50R20 Wheel - 20X10 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 38/15.50R18 Wheel - 18X10 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 40/13.50R17 Wheel - 17X10 W/4 5/8" BS W/MINOR TRIMMING; 61. INCLUDES FRONT CV DRIVESHAFT.; 62. WILL NOT WORK WITH NON-ADJUSTABLE REAR AIR SENSOR.

• Everything You Will Need To Lift Your Vehicle
• No Driveshaft Change Required For Auto Trac
• Allows Use Of Stock Tires And Wheels
• Retains Factory Steering Centerlink
• Retains Factory Upper Control Arms
• Increased Caster For More Control
• Quick No Weld Installation

Upgrade your 2003-2008 Hummer H2 with the Fabtech K5001 performance lift system designed for enhanced off-road capability and style. This comprehensive kit features extended steering knuckles and high clearance crossmembers, similar to our other IFS systems, but tailored specifically to address the H2's full-time transfer case with a CV-style front driveshaft for smooth and reliable driveline operation. The system includes two 1/4-inch thick skid plates—one protecting the front differential and the other safeguarding the transfer case—ensuring durability during rugged terrain adventures. For factory air bag-equipped H2s, the rear lift is achieved with a robust bag spacer, while coil spring models benefit from driver and passenger-specific replacement springs, providing a balanced and controlled ride. The kit's design allows the use of stock tires and wheels, preserving your vehicle’s original appearance while offering a significant 6-inch lift for increased ground clearance and improved off-road performance. It retains the factory steering centerlink and upper control arms, maintaining factory handling characteristics. The included performance shocks enhance ride quality and stability, making this lift system a practical choice for enthusiasts seeking a reliable, bolt-on upgrade. Installation is straightforward with no welding required and does not necessitate driveshaft changes for Auto Trac compatibility, simplifying your upgrade process. Please note, this system is compatible with 37-inch to 40-inch tires and requires minor trimming for certain wheel sizes. Designed specifically for 2003-2008 Hummer H2 models with factory air bags, this lift kit offers an excellent combination of performance, durability, and ease of installation for serious off-road enthusiasts and daily drivers alike.

Features:

• Includes complete lift components for a 6-inch height increase

• Designed specifically for 2003-2008 Hummer H2 models

• s extended steering knuckles and high clearance crossmembers

• Includes a CV-style front driveshaft for smooth driveline operation

• Two 1/4-inch thick skid plates for front differential and transfer case protection

• Rear lift compatible with factory air bags using a sturdy spacer

• Coil spring models include driver and passenger-specific replacement springs

• Allows use of stock tires and wheels, maintaining OEM appearance

• Retains factory steering centerlink and upper control arms

• Increased caster for improved control and handling

• Includes performance shocks for enhanced ride quality

• Quick bolt-on installation requiring no welding

• Compatible with tires from 37 to 40 inches in diameter with minor trimming

• Designed specifically for 2003-2008 Hummer H2 4WD models

Fitment:
2003 Hummer H2 Base
2004 Hummer H2 Base
2005 Hummer H2 Base
2006 Hummer H2 Base
2007 Hummer H2 Base
2008 Hummer H2 Base

Air Freight Prohibited: false
Not Carb Approved: false
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: N/A
Carb Acknowledgement Required: false
Regular Stock: false
Clearance Item: t
Units Per Sku: 1
