Edelbrock Universal Fuel Sump Module Part #36032 for EFI Applications

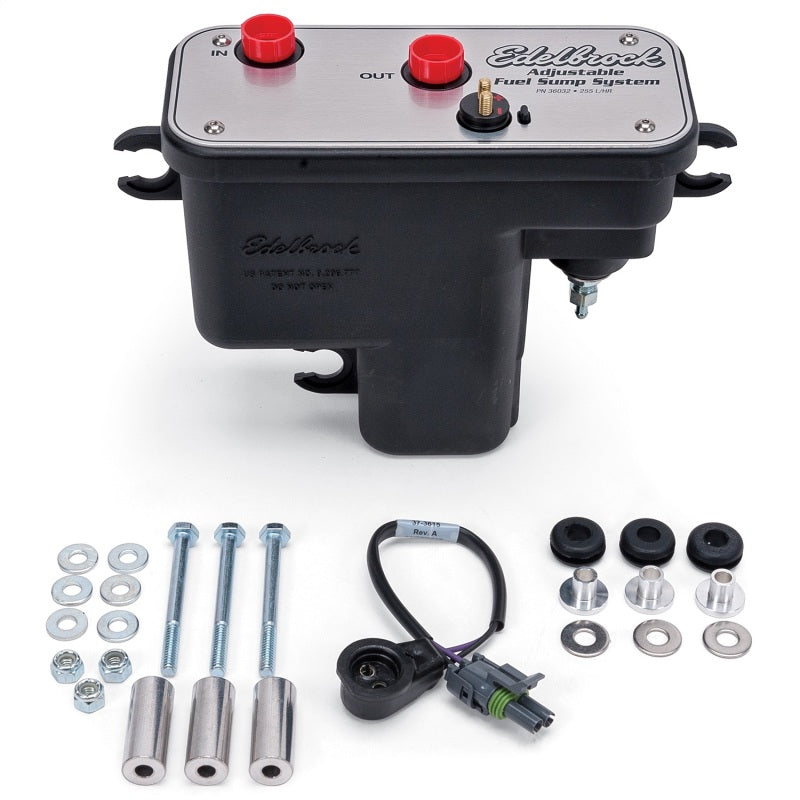

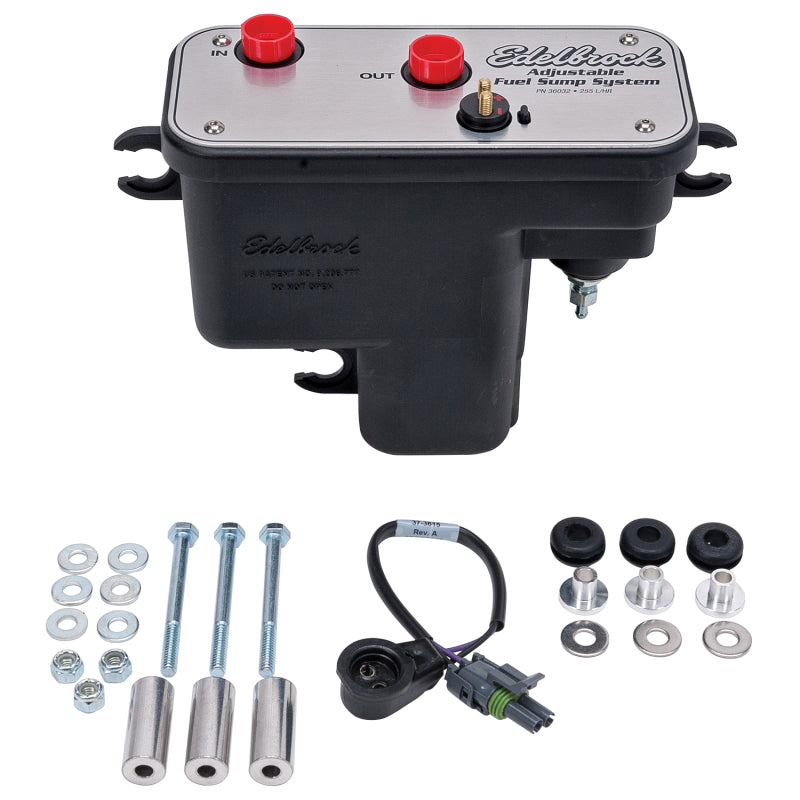

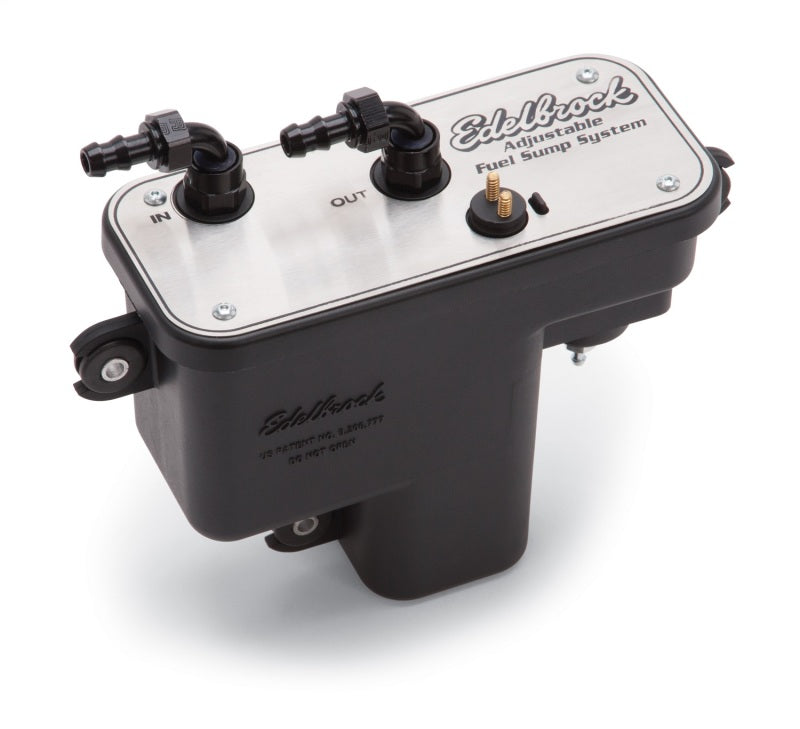

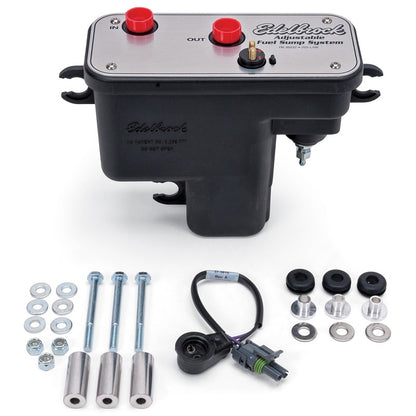

The Universal Fuel Sump #36032 is designed to provide the necessary high fuel pressure required for EFI applications in vehicles equipped with an existing low-pressure carbureted fuel system. This Universal Fuel Sump is a self-contained high-pressure fuel pump/sump unit that can be easily installed under the hood. The unique design of this Fuel Sump allows it to deliver constant fuel pressure with no fuel return line, external fuel pressure regulator or fuel tank modifications. The Edelbrock Universal Fuel Sump is compatible with the existing factory fuel tank and pump and is ideal for use with aftermarket EFI systems as well as many popular engine swap applications that require constant 35-90 PSI fuel pressure. This Universal Fuel Sump features a compact design that is adjustable from 35 to 90 PSI and includes a vacuum reference port. A flow rate of 67 GPH can support up to 600 HP and is a perfect choice to use with Pro-Flo 3, Pro-Flo 4 or other aftermarket EFI systems. Part #36032 is the Universal Fuel Sump with electrical harness and mounting hardware designed for consumers who want to utilize their own hose and fittings. A complete Universal Fuel Sump Kit #36031 is available with harness, hardware, hose, filter and fittings included. Both will require the installation of a vent line from the sump overflow vent port to the fuel tank. The Edelbrock Universal EFI Fuel Sump is the easiest and most affordable way to make your fuel system EFI ready. NOTE: THIS SUMP IS NOT INTENDED FOR OFF ROAD USE, ROCK CRAWLING OR APPLICATIONS WHERE VEHICLE WILL BE SUSTAINED AT INCLINE OR DECLINE ANGLES GREATER THAN 45 DEGREES FOR EXTENDED DURATIONS. Adjustable Universal EFI Sump Fuel Tank Assembly-67gph (35-90 psi)

• Requires Vent Line From Sump Overflow Vent to Fuel Tank

The Edelbrock Universal Fuel Sump #36032 is designed to provide a reliable high-pressure fuel source for EFI systems in vehicles originally equipped with low-pressure carbureted fuel systems. This self-contained unit is compact and easy to install under the hood, offering a seamless upgrade to support modern fuel injection setups. Its innovative design eliminates the need for a fuel return line, external pressure regulator, or modifications to the existing fuel tank, simplifying installation and reducing setup time. Compatible with factory fuel tanks, the Edelbrock Fuel Sump is ideal for aftermarket EFI systems like Pro-Flo 3 and Pro-Flo 4, as well as various engine swap configurations requiring steady fuel pressure between 35 and 90 PSI. The adjustable pressure feature ensures precise tuning for optimal engine performance, while the vacuum reference port allows for fine adjustments based on engine load conditions. With a flow rate of 67 gallons per hour, this fuel sump can support engines up to 600 horsepower, making it suitable for a wide range of high-performance applications. The kit includes an electrical harness and mounting hardware, providing a straightforward installation process for enthusiasts who prefer to use their own hoses and fittings. For a complete setup, Edelbrock offers a Universal Fuel Sump Kit #36031, which includes additional components such as hoses, fittings, and a filter. It is important to note that this sump requires a vent line from the overflow vent port to the fuel tank to ensure proper operation. Designed for automotive use, it is not intended for off-road, rock crawling, or prolonged use at extreme inclines beyond 45 degrees. This product adheres to Prop 65 regulations and is a reliable solution for upgrading fuel systems to support modern EFI technology efficiently and affordably.

Features:

• Adjustable fuel pressure from 35 to 90 PSI for versatile tuning

• Supports up to 67 GPH flow rate, suitable for engines up to 600 HP

• Self-contained design eliminates the need for external regulators or return lines

• Easy installation with included electrical harness and mounting hardware

• Compatible with factory fuel tanks and various aftermarket EFI systems

• Vacuum reference port allows for fine pressure adjustments

Air Freight Prohibited: false
Not Carb Approved: true
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: N/A
Carb Acknowledgement Required: true
Regular Stock: t
Units Per Sku: 1
