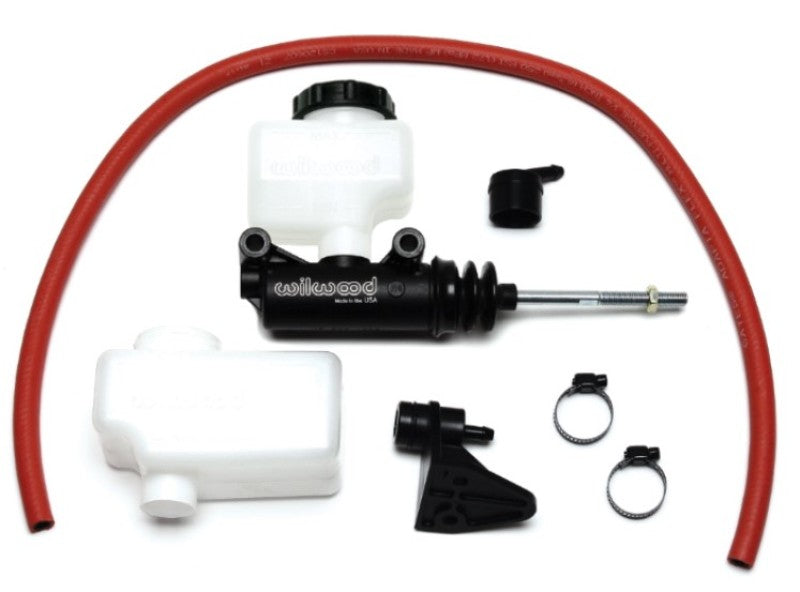

Wilwood Short Remote Side Mount Master Cylinder Kit 7/8 inch Bore with 3/8-24 Banjo Outlet - Part 260-13624

This new version of Wilwood's Compact Combination (Side Mount) Master Cylinders now features a 3/8-24 banjo outlet. Designed for limited space applications requiring the output capacity of a full size master cylinder. The ultra short 3.37”compact body provides 2.16” of additional clearance between the mounting boss and the fluid outlet. The new body design incorporates integral side mounting lugs with a 3.00” center to distance and no traditional mounting flange, which further enhances its ability to mount in tight spaces. A full 1.12” of piston stroke meets or exceeds the stroke capacity of most full size cylinders. With 3/8-24 fluid outlet port located at the top radius of the cylinder bore, reduces the chances for trapped air. Enhanced fluid inlet port allows mounting of the standard reservoir included in kit and also contain 11/16-20 internal threads for custom reservoir arrangements. The black E-Coated aluminum body resists corrosion and maintains a durable long lasting finish.

The Wilwood Short Remote Side Mount Master Cylinder Kit, part number 260-13624, is engineered for limited space automotive applications requiring reliable hydraulic performance. Featuring a compact body measuring just over 3.3 inches in length, this master cylinder offers an additional 2.16 inches of clearance between the mounting boss and fluid outlet, making it ideal for tight installation environments. Its innovative design includes integral side mounting lugs with a 3-inch center-to-center distance and eliminates the traditional mounting flange, enabling easier integration into constrained spaces without sacrificing structural integrity. The piston stroke of 1.12 inches ensures compatibility with most full-size cylinders, providing ample travel for effective brake operation. The top-radius outlet port with a 3/8-24 banjo fitting minimizes trapped air, improving fluid flow and brake response. The fluid inlet port accommodates a standard reservoir, which is included in the kit, and features 11/16-20 internal threads for custom reservoir configurations. The aluminum body is coated with a black E-Coat finish, offering excellent corrosion resistance and durability for long-term performance in demanding environments. This master cylinder is suitable for a wide range of automotive brake systems, providing a compact yet robust solution for space-restricted setups that demand dependable hydraulic control. Its versatile design ensures compatibility with various reservoirs and fluid outlet requirements, making it a practical choice for custom builds, race cars, or retrofits where space is at a premium.

Features:

• Compact body design provides increased clearance in tight spaces

• Integral side mounting lugs with 3-inch center-to-center spacing facilitate easy installation

• No traditional mounting flange for simplified mounting options

• 1.12-inch piston stroke offers compatibility with most full-size cylinders

• Top-radius fluid outlet port with 3/8-24 banjo fitting enhances fluid flow and reduces trapped air

• Includes standard reservoir with mounting options via 11/16-20 internal threads

• Black E-Coat aluminum body provides corrosion resistance and durability

Air Freight Prohibited: false
Not Carb Approved: false
Ltl Freight Required: false
Prop 65: Unknown
Part Type: automotive
Epa: N/A
Carb Acknowledgement Required: false
Regular Stock: t
Units Per Sku: 1
