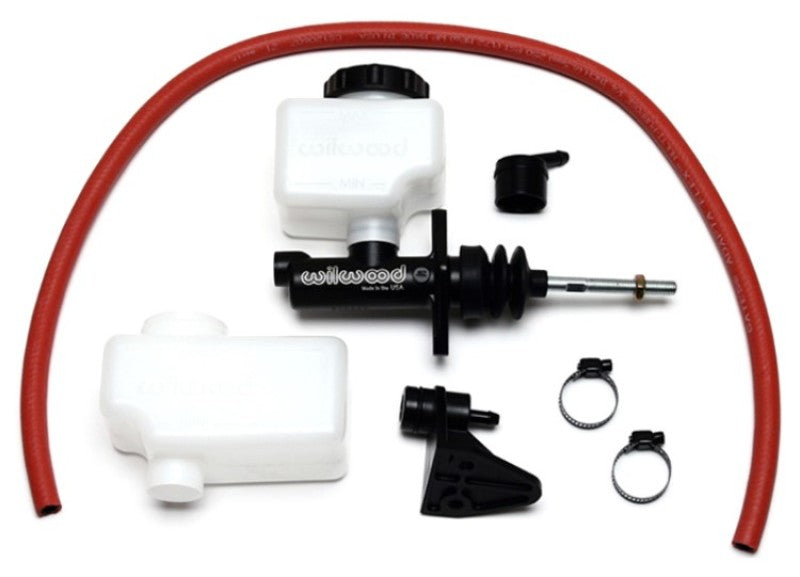

Wilwood Short Remote Master Cylinder Kit with 7/8 Inch Bore and 3/8-24 Banjo Outlet

‘This new version of Wilwood's Compact Combination Master Cylinders now features a 3/8-24 banjo outlet. Designed for limited space applications requiring the output capacity of a full size master cylinder. The ultra-short 3.37”compact body provides 2.16” of additional clearance between the mounting flange and the fluid outlet. A full 1.12” of piston stroke meets or exceeds the stroke capacity of most full size cylinders. With 3/8-24 fluid outlet port located at the top radius of the cylinder bore, reduces the chances for trapped air. Enhanced fluid inlet port allows mounting of the standard reservoir included in kit and also contains 11/16-20 internal threads for custom reservoir arrangements. The black E-Coated aluminum body resists corrosion and maintains a durable long lasting finish.

The Wilwood 260-13621 Short Remote Master Cylinder Kit offers a compact yet high-capacity hydraulic solution designed for limited space automotive applications. Featuring a 7/8-inch bore diameter, this master cylinder delivers reliable braking performance while occupying minimal space in your vehicle's engine bay. The ultra-short 3.37-inch body provides an additional 2.16 inches of clearance between the mounting flange and fluid outlet, facilitating easier installation in tight spaces. Its innovative design includes a 3/8-24 banjo outlet positioned at the top radius of the cylinder bore, which helps reduce trapped air and promote better fluid flow, ensuring consistent brake pedal feel and responsiveness. The fluid inlet port is engineered for versatility, accommodating the included standard reservoir or allowing for custom reservoir arrangements with 11/16-20 internal threads, providing adaptability to various brake system configurations. Constructed from durable, corrosion-resistant black E-coated aluminum, this master cylinder maintains a long-lasting, corrosion-free finish even in harsh operating environments. Whether upgrading an existing system or installing in a new build, the Wilwood Short Remote Master Cylinder Kit ensures reliable performance with its robust design and thoughtful features. Its combination of compact size, high capacity, and versatile mounting options makes it an ideal choice for race cars, off-road vehicles, and custom projects where space is at a premium.

Features:

• Compact ultra-short 3.37-inch body providing additional clearance for tight installations

• 7/8-inch piston bore delivers high-capacity hydraulic pressure

• 3/8-24 banjo outlet positioned at the top radius of the cylinder bore to minimize trapped air

• Fluid inlet port supports standard reservoir with options for custom reservoirs via 11/16-20 internal threads

• Black E-coated aluminum body offers corrosion resistance and durability

Air Freight Prohibited: false
Not Carb Approved: false
Ltl Freight Required: false
Prop 65: Unknown
Part Type: automotive
Epa: N/A
Carb Acknowledgement Required: false
Regular Stock: t
Units Per Sku: 1
