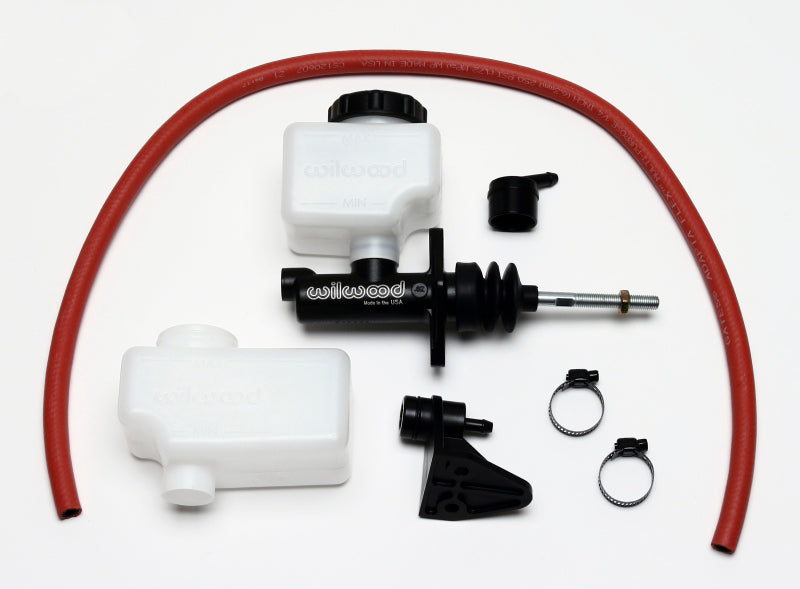

Wilwood Short Remote Master Cylinder Kit 3/4 Inch Bore - Part #260-10372

Wilwood’s Compact Combination Master Cylinders have been designed for limited space applications requiring the output capacity of a full size master cylinder. The ultra short 3.37”compact body provides 2.16” of additional clearance between the mounting flange and the fluid outlet. A full 1.12” of piston stroke meets or exceeds the stroke capacity of most full size cylinders. With 1/8” NPT fluid outlet port located at the top radius of the cylinder bore, reduces the chances for trapped air. Enhanced fluid inlet port allows mounting of the standard reservoir included in kit and also contain 11/16-20 internal threads for custom reservoir arrangements. The black E-Coated aluminum body resists corrosion and maintains a durable long lasting finish.

The Wilwood Short Remote Master Cylinder Kit, part number 260-10372, offers a compact yet powerful solution for limited space automotive applications. Featuring a 3/4 inch bore, this master cylinder provides the output capacity of larger units while occupying significantly less space. Its ultra short 3.37 inch body design allows for an additional 2.16 inches of clearance between the mounting flange and the fluid outlet, making it ideal for tight installations where space is at a premium. The piston offers a full 1.12 inch stroke, ensuring reliable brake pedal feel and consistent operation that meets or exceeds the performance of most full-size cylinders. The top-mounted 1/8 inch NPT fluid outlet port is strategically positioned at the radius of the cylinder bore to minimize trapped air, enhancing brake system responsiveness. An enhanced fluid inlet port accommodates the standard reservoir included in the kit and features 11/16-20 internal threads for custom reservoir configurations. The durable black E-Coated aluminum body resists corrosion, ensuring long-lasting performance even in harsh environments. Designed for ease of installation and maintenance, this compact master cylinder kit is suitable for a variety of automotive applications where space constraints are critical. Whether upgrading an existing system or designing a custom setup, the Wilwood Short Remote Master Cylinder kit provides reliable brake performance in a compact form factor, backed by Wilwood’s reputation for quality and durability.

Features:

• Ultra short 3.37 inch body allows for increased clearance in tight spaces

• 3/4 inch bore provides full-size master cylinder output capacity

• Full 1.12 inch piston stroke for consistent brake pedal feel

• Top-mounted 1/8 inch NPT fluid outlet port minimizes trapped air

• Enhanced fluid inlet port supports standard reservoir and custom reservoir options

• Black E-Coated aluminum body resists corrosion and ensures durability

Air Freight Prohibited: false
Not Carb Approved: false
Ltl Freight Required: false
Prop 65: Unknown
Part Type: automotive
Epa: N/A
Carb Acknowledgement Required: false
Regular Stock: t
Units Per Sku: 1
