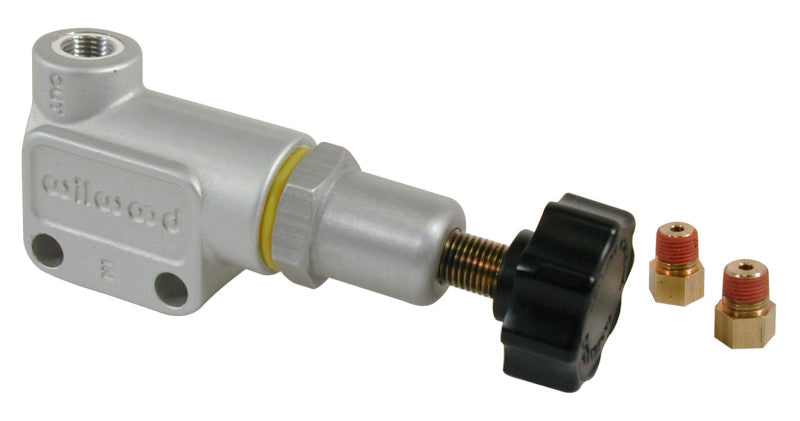

Wilwood Proportioning Valve with Knob Adjustment - Part #260-8419

The new generation of adjustable proportioning valves combines the latest refinements to deliver precise pressure metering and strength from a compact forged billet design. Pressure adjustments range from 100-1000 PSI and provide for a maximum decrease of 57% in line pressure, the most of any available valve. Adjuster knob with fine thread tuning provides precise pressure adjustment. Valves weigh only 5.2 ounces and have two .25” side mounting holes spaced 1.00” apart. Inlet / outlet ports are 1/8-27 NPT and valves are supplied with two 1/8-27 NPT to 3/8-24 inverted flare female fittings that will fit most domestic 3/16th hard brake lines.

The Wilwood Proportioning Valve Part #260-8419 is engineered for precise brake pressure regulation in automotive applications. Crafted from a durable forged billet, this compact valve offers reliable strength while maintaining a lightweight profile, weighing only 5.2 ounces. It features an adjustable pressure range from 100 to 1000 PSI, allowing fine-tuned control over brake system performance. The valve's design enables a maximum line pressure reduction of up to 57%, making it one of the most effective options on the market for achieving optimal brake modulation. The adjuster knob, equipped with fine thread tuning, facilitates precise pressure adjustments, ensuring accurate calibration for your specific needs.
Inlet and outlet ports are designed with 1/8-27 NPT threads, and the valve includes two 1/8-27 NPT to 3/8-24 inverted flare female fittings, compatible with most domestic 3/16-inch hard brake lines. The valve features two side mounting holes spaced 1 inch apart, allowing straightforward installation in various configurations. Its compact forged billet construction provides a robust yet space-efficient solution for brake system optimization, whether in racing or high-performance street applications.
Designed for ease of use and durability, the Wilwood Proportioning Valve ensures consistent pressure regulation under demanding conditions, enhancing safety and braking response. Suitable for a wide range of automotive setups, this valve is an essential component for enthusiasts and professionals seeking precise brake control without sacrificing reliability or ease of installation.

Features:

• Adjustable pressure range from 100 to 1000 PSI for versatile brake system tuning

• Maximum line pressure reduction of 57% for optimal brake modulation

• Constructed from forged billet for strength and durability

• Lightweight design at only 5.2 ounces for easy handling and installation

• Fine thread adjustment knob for precise pressure calibration

• 1/8-27 NPT inlet and outlet ports, compatible with common brake lines

• Includes two 1/8-27 NPT to 3/8-24 inverted flare female fittings

• Side mounting holes spaced 1 inch apart for flexible installation

Air Freight Prohibited: false
Not Carb Approved: false
Ltl Freight Required: false
Prop 65: Unknown
Part Type: automotive
Epa: N/A
Carb Acknowledgement Required: false
Regular Stock: t
Units Per Sku: 1
