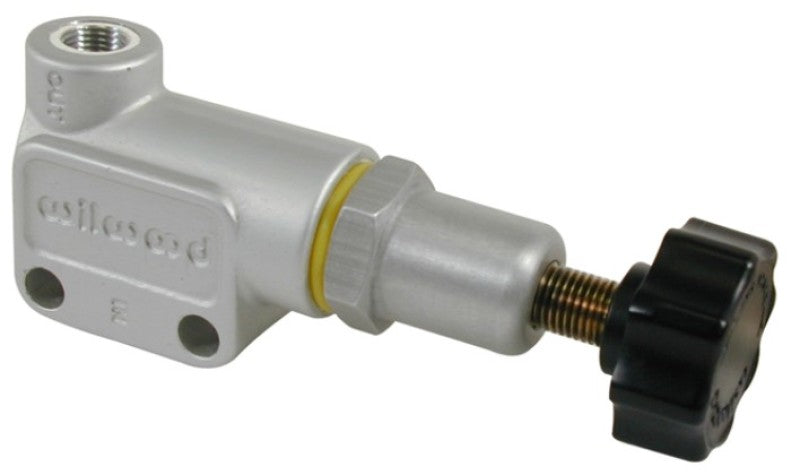

Wilwood Proportioning Valve - Knob Adjust M10x1 BBF Inlet & Outlet for Precise Brake Pressure Control

The new generation of adjustable proportioning valves combines the latest refinements to deliver precise pressure metering and strength from a compact forged billet design. Pressure adjustments range from 100-1000 PSI and provide for a maximum decrease of 57% in line pressure, the most of any available valve. Adjuster knob with fine thread tuning provides precise pressure adjustment. This adjustment lets you fine tune the front to rear braking balance by proportionally decreasing the rear brake line pressure. Valves weigh only 5.2 ounces and have two .25” side mounting holes spaced 1.00” apart. This valve varies from our standard Knob Style Proportioning valve, as the inlet and outlet ports are 10MM X 1 bubble flare seats and do not require tube nut adapters to directly install tubing with bubble flare 10MM x 1 nuts.

The Wilwood Proportioning Valve Part Number 260-12627 offers advanced brake system tuning with a compact forged billet design that ensures durability and precise pressure regulation. This adjustable valve features a pressure range from 100 to 1000 PSI, allowing for fine-tuned control over brake pressure distribution to enhance vehicle handling and safety. The design enables a maximum line pressure reduction of 57%, providing significant flexibility in brake bias adjustments. The built-in adjuster knob with fine thread tuning allows for precise and smooth pressure adjustments, making it easier to achieve optimal front-to-rear braking balance. The valve's inlet and outlet ports are 10MM x 1 bubble flare seats, which facilitate direct installation with bubble flare tubing without requiring additional tube nut adapters, simplifying the setup process. Weighing only 5.2 ounces, the valve is lightweight and designed for ease of installation, featuring two side mounting holes spaced 1.00 inch apart for secure attachment to various vehicle chassis. The Wilwood Proportioning Valve is an essential component for performance and custom brake setups, providing reliable and adjustable pressure control to meet demanding automotive needs. Its robust construction and precise tuning capabilities make it suitable for high-performance applications where brake balance and safety are critical. This valve is compatible with standard automotive brake systems and is designed for straightforward integration into existing setups, ensuring efficient and effective brake pressure management for enhanced driving confidence.

Features:

• Adjustable pressure range from 100 to 1000 PSI for versatile brake tuning

• Maximum line pressure decrease of 57% for improved brake bias control

• Fine thread adjuster knob for precise pressure adjustments

• Direct install with 10MM x 1 bubble flare ports, no additional adapters needed

• Lightweight design weighing only 5.2 ounces with secure mounting holes

Air Freight Prohibited: false
Not Carb Approved: false
Ltl Freight Required: false
Prop 65: Unknown
Part Type: automotive
Epa: N/A
Carb Acknowledgement Required: false
Regular Stock: t
Units Per Sku: 1
