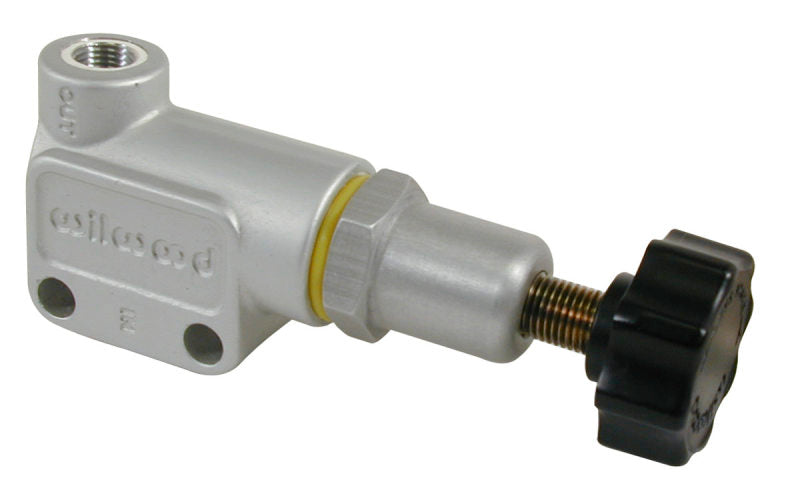

Wilwood Proportioning Valve - Knob Adjust 3/8-24 IF Inlet & Outlet

The new generation of adjustable proportioning valves combines the latest refinements to deliver precise pressure metering and strength from a compact forged billet design. Pressure adjustments range from 100-1000 PSI and provide for a maximum decrease of 57% in line pressure, the most of any available valve. Adjuster knob with fine thread tuning provides precise pressure adjustment. This adjustment lets you fine tune the front to rear braking balance by proportionally decreasing the rear brake line pressure. Valves weigh only 5.2 ounces and have two .25” side mounting holes spaced 1.00” apart. This valve varies from our standard Knob Style Proportioning valve, as the in and out ports are 3/8-24 inverted flare seats and do not require tube nut adapters to directly install 3/16 tubing with inverted flare 3/8-24 nuts.

The Wilwood Part Number 260-10922 is a high-performance adjustable proportioning valve designed to optimize brake system pressure regulation. Constructed from a durable forged billet, this valve offers a compact yet robust design that ensures reliable operation under demanding conditions. Its pressure adjustment range from 100 to 1000 PSI allows for precise tuning of the brake pressure, providing up to a 57% reduction in line pressure—the highest available among similar valves. The fine-threaded adjuster knob facilitates meticulous pressure calibration, enabling you to fine-tune the front-to-rear braking balance effectively. This feature is especially useful in high-performance applications where precise brake modulation is critical. The valve weighs only about 5.2 ounces, making it lightweight and easy to install, with two .25-inch side mounting holes spaced 1 inch apart for secure attachment. Unlike standard models, this valve features 3/8-24 inverted flare ports for both inlet and outlet, allowing direct connection to 3/16-inch tubing with inverted flare 3/8-24 nuts, eliminating the need for tube nut adapters. This design simplifies installation and ensures a leak-free connection. Overall, the Wilwood Proportioning Valve ensures consistent brake pressure control and enhances stopping performance, making it a reliable choice for automotive enthusiasts and professional racers seeking precise brake system tuning. Whether upgrading or customizing your vehicle's braking system, this proportioning valve offers the accuracy and durability needed for optimal safety and performance.

Features:

• Adjustable pressure range from 100 to 1000 PSI for versatile tuning

• Maximum line pressure reduction of 57% for optimal brake balance

• Fine-threaded adjuster knob for precise pressure control

• Compact forged billet construction for strength and durability

• Lightweight design weighing approximately 5.2 ounces

• Two .25-inch side mounting holes spaced 1 inch apart for easy installation

• 3/8-24 inverted flare ports for direct connection to 3/16-inch tubing

• No tube nut adapters required for installation, simplifying setup

Air Freight Prohibited: false
Not Carb Approved: false
Ltl Freight Required: false
Prop 65: Unknown
Part Type: automotive
Epa: N/A
Carb Acknowledgement Required: false
Regular Stock: t
Units Per Sku: 1
