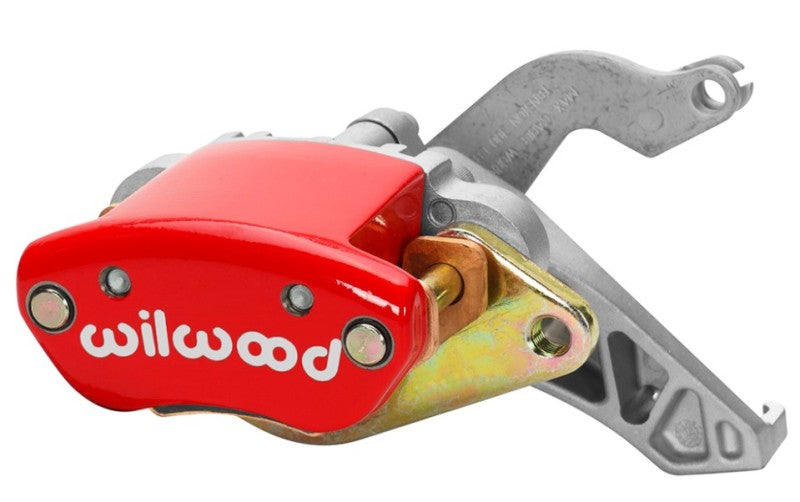

Wilwood MC4 Mechanical Parking Brake Caliper with Red Finish and 1.19-inch Piston Part Number 120-12070-RD

Wilwood’s MC4 Mechanical Parking Brake Caliper is a multi-use, cable operated brake caliper that combines high output performance with simplicity in design and construction, and is the perfect solution for vehicle applications requiring a separate, mechanically actuated parking brake caliper. Built to accept rotors that are .810” thick, with 11.00” - 12.88” diameter range, the MC4 combines an efficient die cast body with a forged billet anvil for superior strength under load, yet is lightweight at only 3.30 (2.95 without pads) pounds. Supplied with each caliper are our Composite Metallic (CM) high-friction, high static-hold brake pads, and are pre-fitted with noise cancelling shields.

The Wilwood MC4 Mechanical Parking Brake Caliper is a versatile, cable-operated brake solution designed for vehicles requiring a separate, mechanically actuated parking brake system. Featuring a robust die cast body combined with a forged billet anvil, this caliper offers superior strength and durability while maintaining a lightweight profile of approximately 3.30 pounds. It is engineered to accept rotors that are 0.81 inches thick and within an 11.00 to 12.88-inch diameter range, making it suitable for a variety of high-performance applications. The caliper is supplied with high-friction, high static-hold Composite Metallic (CM) brake pads, pre-fitted with noise-canceling shields to ensure quiet operation and consistent braking performance. The eye-catching red finish with the Wilwood logo enhances both the aesthetic and corrosion resistance of the caliper, adding a professional touch to your vehicle’s braking system. Its straightforward design simplifies installation and maintenance, making it an ideal choice for custom builds, race cars, or off-road vehicles that demand reliable parking brake functionality. Engineered for strength and ease of use, the MC4 caliper provides a dependable mechanical parking brake solution that delivers consistent stopping power when it matters most. Whether you're upgrading an existing system or designing a new setup, this caliper offers high performance with straightforward operation, backed by Wilwood's reputation for quality and innovation.

Features:

• Cable-operated design for easy mechanical activation

• Accepts rotors 0.81 inches thick and 11.00 to 12.88 inches in diameter

• Constructed with a durable die cast body and forged billet anvil for high strength

• Lightweight at approximately 3.30 pounds for easy installation

• Supplied with high-friction, high static-hold Composite Metallic brake pads

• Pre-fitted with noise-canceling shields for quieter operation

• Red finish with Wilwood logo for corrosion resistance and aesthetic appeal

• Designed for vehicles requiring a separate parking brake system

• Simple installation and maintenance, ideal for custom and performance vehicles

Air Freight Prohibited: false
Not Carb Approved: false
Ltl Freight Required: false
Prop 65: Unknown
Part Type: automotive
Epa: N/A
Carb Acknowledgement Required: false
Regular Stock: t
Units Per Sku: 1
