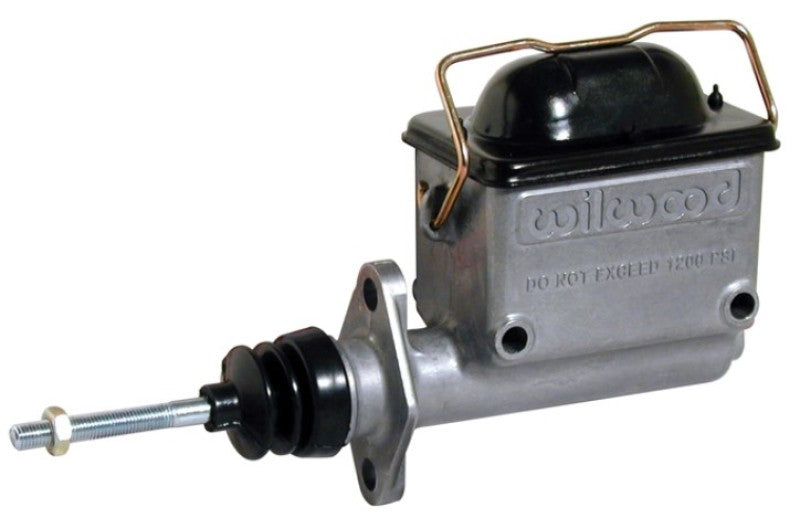

Wilwood High-Volume Aluminum Master Cylinder - 3/4 inch Bore for Automotive Brake Systems

Wilwood High-Volume Aluminum Master feature high pressure die-cast bodies from high-grade aluminum. Wilwood. High-Volume Master Cylinders have the highest fluid capacity of any integral reservoir design. With a total capacity of 8.2 ounces, there is at least 26% more fluid volume than other brands. . With 1-7/16" of piston travel, it offers extra margin when used with large piston calipers. Heavy duty internal springs provide fast retraction. Formed steel lids with bellows type gaskets keep the moisture out. Wilwood master cylinders use common dimensions for flange or side mounting and a 1/8-27 NPT outlet port.

The Wilwood High-Volume Aluminum Master Cylinder (Part No. 260-6764) is engineered for high-performance automotive brake applications. Constructed with high-pressure die-cast aluminum, it offers durability and resistance to corrosion, making it suitable for demanding driving conditions. The master cylinder's design features a generous fluid capacity of 8.2 ounces, providing at least 26% more volume than comparable models, which ensures consistent brake pedal feel and responsiveness. Its piston travel of 1-7/16 inches adds extra margin, especially when used with large piston calipers, enhancing braking efficiency and control. Heavy-duty internal springs facilitate rapid retraction, reducing pedal travel and improving overall brake system performance. The formed steel lids with bellows-type gaskets effectively seal out moisture and contaminants, maintaining the integrity of the brake fluid over time. With standard dimensions for flange or side mounting and a 1/8-27 NPT outlet port, this master cylinder is compatible with a wide range of brake setups, simplifying installation and maintenance. Whether upgrading or building a custom brake system, the Wilwood High-Volume Aluminum Master Cylinder offers reliable performance, increased fluid capacity, and robust construction to meet the demands of high-performance vehicles.

Features:

• High-pressure die-cast aluminum body for strength and corrosion resistance

• Large fluid capacity of 8.2 ounces for consistent brake performance

• Piston travel of 1-7/16 inches provides extra margin for large piston calipers

• Heavy-duty internal springs ensure fast retraction and pedal feel

• Formed steel lids with bellows gaskets prevent moisture ingress

• Standard dimensions for flange or side mounting compatibility

• Includes 1/8-27 NPT outlet port for versatile installation

Air Freight Prohibited: false
Not Carb Approved: false
Ltl Freight Required: false
Prop 65: Unknown
Part Type: automotive
Epa: N/A
Carb Acknowledgement Required: false
Regular Stock: t
Units Per Sku: 1
