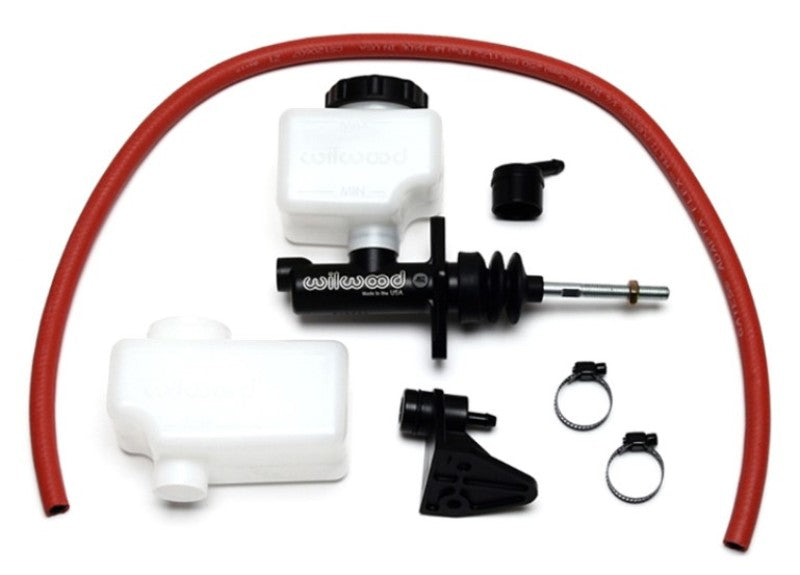

Wilwood Compact Remote Master Cylinder Kit 15/16 Inch Bore - Part #260-14784

Wilwood’s Compact Combination Master Cylinders have been designed for limited space applications requiring the output capacity of a full size master cylinder. The ultra short 3.37”compact body provides 2.16” of additional clearance between the mounting flange and the fluid outlet. A full 1.12” of piston stroke meets or exceeds the stroke capacity of most full size cylinders. With 1/8” NPT fluid outlet port located at the top radius of the cylinder bore, reduces the chances for trapped air. Enhanced fluid inlet port allows mounting of the standard reservoir included in kit and also contain 11/16-20 internal threads for custom reservoir arrangements. The black E-Coated aluminum body resists corrosion and maintains a durable long lasting finish.

The Wilwood Compact Remote Master Cylinder Kit, part number 260-14784, is engineered for applications where space is limited but high performance is essential. Featuring an ultra short 3.37-inch body, this master cylinder provides an additional 2.16 inches of clearance between the mounting flange and fluid outlet, making it ideal for tight engine bays and confined mounting areas. The piston offers a full 1.12 inches of stroke, ensuring reliable brake operation and consistent pedal feel comparable to full-size cylinders. Its top-radius 1/8-inch NPT fluid outlet port minimizes trapped air, promoting easier bleeding and more consistent braking performance.

Features:

• Compact 3.37-inch body design ideal for limited space applications

• Provides 1.12-inch piston stroke for reliable brake pedal travel

• Top-radius 1/8-inch NPT fluid outlet reduces trapped air

• Enhanced fluid inlet port accommodates standard reservoir and custom arrangements

• Black E-Coated aluminum body resists corrosion and ensures durability

Air Freight Prohibited: false
Not Carb Approved: false
Ltl Freight Required: false
Prop 65: Unknown
Part Type: automotive
Epa: N/A
Carb Acknowledgement Required: false
Regular Stock: t
Units Per Sku: 1
