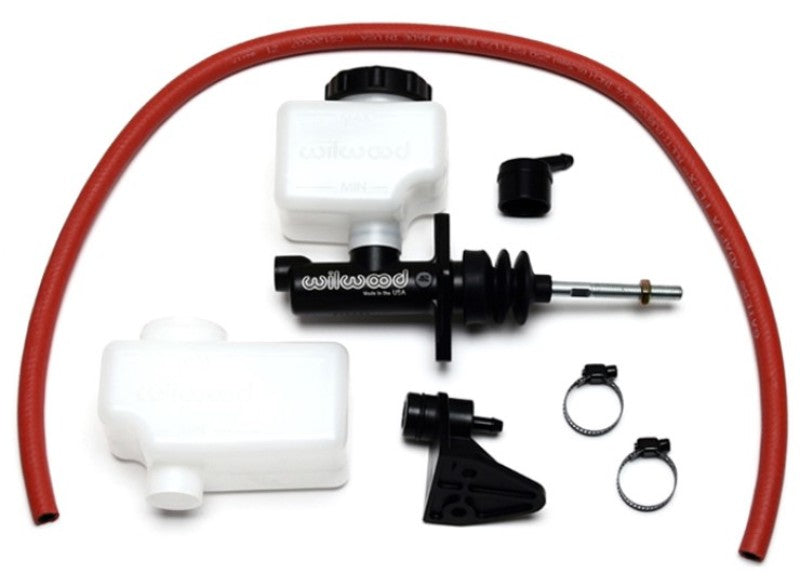

Wilwood Compact Combination Master Cylinder with 3/8-24 Banjo Outlet – 5/8 inch Bore, Part #260-13618

‘This new version of Wilwood's Compact Combination Master Cylinders now features a 3/8-24 banjo outlet. Designed for limited space applications requiring the output capacity of a full size master cylinder. The ultra-short 3.37”compact body provides 2.16” of additional clearance between the mounting flange and the fluid outlet. A full 1.12” of piston stroke meets or exceeds the stroke capacity of most full size cylinders. With 3/8-24 fluid outlet port located at the top radius of the cylinder bore, reduces the chances for trapped air. Enhanced fluid inlet port allows mounting of the standard reservoir included in kit and also contains 11/16-20 internal threads for custom reservoir arrangements. The black E-Coated aluminum body resists corrosion and maintains a durable long lasting finish.

The Wilwood Compact Combination Master Cylinder with part number 260-13618 offers a high-performance solution for limited space brake systems. Featuring a 3/8-24 banjo outlet, this master cylinder is designed to deliver reliable fluid flow while conserving space in tight installations. The ultra-short 3.37-inch body provides an additional 2.16 inches of clearance between the mounting flange and the fluid outlet, facilitating easier installation and maintenance in confined areas. The piston stroke measures a full 1.12 inches, ensuring compatibility with most full-size cylinders and providing ample movement for effective brake operation.

This master cylinder's fluid outlet port is strategically positioned at the top radius of the bore, reducing the risk of trapped air and promoting consistent brake pedal feel. Its enhanced fluid inlet port allows for straightforward mounting of the included standard reservoir, and the internal 11/16-20 threads offer versatility for custom reservoir configurations. The black E-coated aluminum body not only adds a sleek appearance but also provides excellent corrosion resistance and durability for long-term use.

Designed for automotive applications, the Wilwood Short Remote Master Cylinder combines space-saving design with optimal performance. Its robust construction and thoughtful features make it suitable for a variety of custom or restored vehicles where space is limited but reliable braking is essential. Whether upgrading an existing system or building a new setup, this master cylinder ensures smooth operation, ease of installation, and long-lasting performance.

Features:

• Compact 3.37-inch body design with 2.16 inches of additional clearance for tight spaces

• 3/8-24 banjo outlet positioned at the top radius to minimize trapped air

• Full 1.12-inch piston stroke compatible with most full-size cylinders

• Enhanced fluid inlet port for easy reservoir mounting and customization

• Black E-coated aluminum body resists corrosion and provides durability

Air Freight Prohibited: false
Not Carb Approved: false
Ltl Freight Required: false
Prop 65: Unknown
Part Type: automotive
Epa: N/A
Carb Acknowledgement Required: false
Regular Stock: t
Units Per Sku: 1
