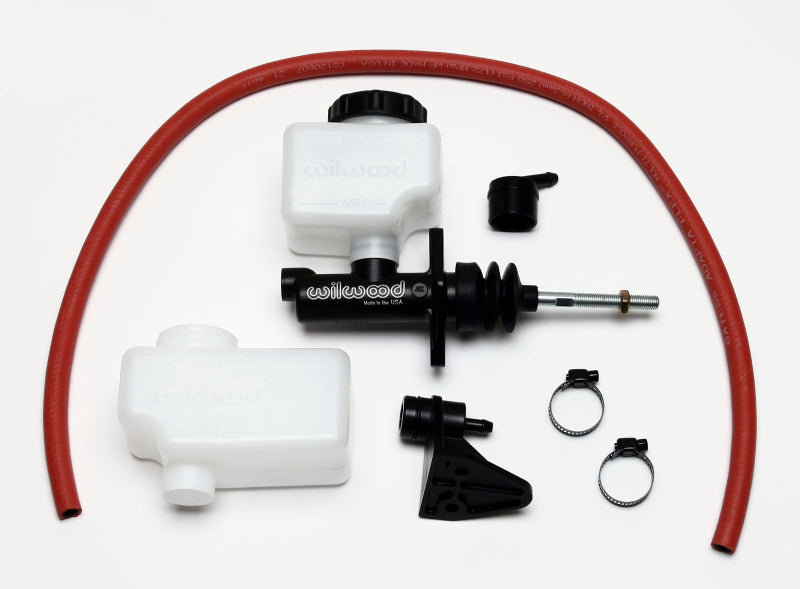

Wilwood Compact Combination Master Cylinder Kit Part #260-10376 – 1-1/8 Inch Bore, Short Remote Design for Limited Space Applications

Wilwood’s Compact Combination Master Cylinders have been designed for limited space applications requiring the output capacity of a full size master cylinder. The ultra short 3.37”compact body provides 2.16” of additional clearance between the mounting flange and the fluid outlet. A full 1.12” of piston stroke meets or exceeds the stroke capacity of most full size cylinders. With 1/8” NPT fluid outlet port located at the top radius of the cylinder bore, reduces the chances for trapped air. Enhanced fluid inlet port allows mounting of the standard reservoir included in kit and also contain 11/16-20 internal threads for custom reservoir arrangements. The black E-Coated aluminum body resists corrosion and maintains a durable long lasting finish.

The Wilwood Compact Combination Master Cylinder Kit Part #260-10376 is engineered for automotive applications where space is limited but high performance is required. Its ultra-short 3.37-inch body design provides an additional 2.16 inches of clearance between the mounting flange and fluid outlet, making it ideal for tight fitments without sacrificing capacity. The piston features a full 1.12-inch stroke, meeting or exceeding the stroke capacity of traditional full-size cylinders, ensuring reliable brake performance. The top-mounted 1/8-inch NPT fluid outlet port minimizes trapped air, promoting consistent brake pedal feel and responsiveness. The enhanced fluid inlet port accommodates the included standard reservoir, while the internal 11/16-20 threads allow for customizable reservoir arrangements, catering to various installation needs. Constructed from black E-coated aluminum, this master cylinder offers excellent corrosion resistance and durability, maintaining a long-lasting finish even in demanding environments.

Designed by Wilwood, a trusted name in high-performance brake components, this master cylinder combines compactness with functionality. Its compact body is perfect for race cars, custom builds, or vehicles with restricted engine bay space, providing the same hydraulic output as larger cylinders. The kit includes all necessary mounting hardware and reservoir, simplifying installation and ensuring reliable operation. Whether upgrading an existing brake system or designing a new one, the Wilwood Short Remote Master Cylinder delivers performance, durability, and space-saving advantages in a single package.

Features:

• Ultra-short 3.37-inch body design for limited space applications

• Provides 2.16 inches additional clearance between flange and outlet

• Full 1.12-inch piston stroke for reliable brake performance

• Top-mounted 1/8-inch NPT fluid outlet port minimizes trapped air

• Enhanced fluid inlet port supports standard reservoir and custom configurations

• Black E-coated aluminum body resists corrosion and enhances durability

Air Freight Prohibited: false
Not Carb Approved: false
Ltl Freight Required: false
Prop 65: Unknown
Part Type: automotive
Epa: N/A
Carb Acknowledgement Required: false
Regular Stock: t
Units Per Sku: 1
