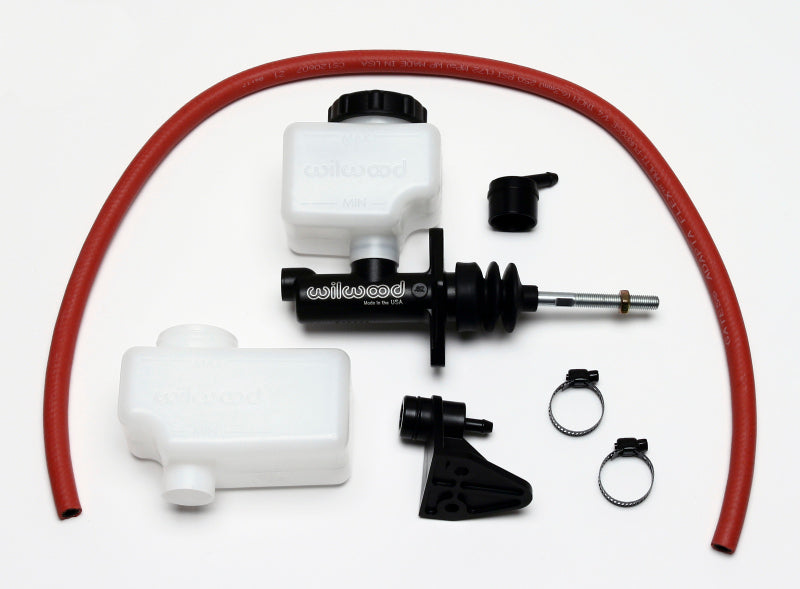

Wilwood Compact Combination Master Cylinder Kit 13/16 Inch Bore - Part #260-10373

Wilwood’s Compact Combination Master Cylinders have been designed for limited space applications requiring the output capacity of a full size master cylinder. The ultra short 3.37”compact body provides 2.16” of additional clearance between the mounting flange and the fluid outlet. A full 1.12” of piston stroke meets or exceeds the stroke capacity of most full size cylinders. With 1/8” NPT fluid outlet port located at the top radius of the cylinder bore, reduces the chances for trapped air. Enhanced fluid inlet port allows mounting of the standard reservoir included in kit and also contain 11/16-20 internal threads for custom reservoir arrangements. The black E-Coated aluminum body resists corrosion and maintains a durable long lasting finish.

The Wilwood Compact Combination Master Cylinder Kit, part number 260-10373, is engineered for applications where space is limited but reliable hydraulic performance is essential. Featuring a compact 3.37-inch body length, this master cylinder provides an additional 2.16 inches of clearance between the mounting flange and the fluid outlet, making it ideal for tight engine bays and custom builds. The piston offers a full 1.12-inch stroke, ensuring compatibility with most full-size cylinders and delivering consistent brake modulation.
The fluid outlet port, with a 1/8-inch NPT connection located at the top radius of the bore, helps reduce trapped air, resulting in more efficient brake system bleeding and improved response. The enhanced fluid inlet port accommodates the included standard reservoir and contains 11/16-20 internal threads for custom reservoir configurations. The durable black E-coated aluminum body resists corrosion, maintaining its appearance and function over time.
This master cylinder is suitable for various automotive applications, especially where space constraints demand a compact yet capable hydraulic component. Its design ensures reliable performance, long-lasting durability, and ease of installation, making it a preferred choice for custom and performance builds. Whether for race cars, hot rods, or other automotive projects, the Wilwood Short Remote Master Cylinder Kit offers high-quality construction and advanced features for optimal braking performance.

Features:

• Compact 3.37-inch body length for limited space applications

• Provides 2.16 inches of additional clearance between flange and outlet

• Full 1.12-inch piston stroke for consistent braking performance

• Top-mounted 1/8-inch NPT fluid outlet port reduces trapped air

• Enhanced fluid inlet port supports standard reservoir and custom reservoirs

• Black E-coated aluminum body resists corrosion and prolongs durability

Air Freight Prohibited: false
Not Carb Approved: false
Ltl Freight Required: false
Prop 65: Unknown
Part Type: automotive
Epa: N/A
Carb Acknowledgement Required: false
Regular Stock: t
Units Per Sku: 1
