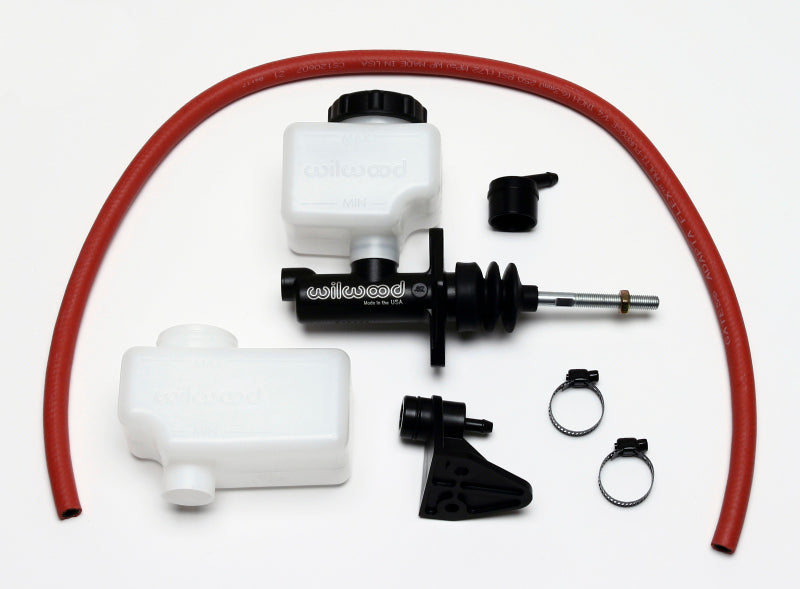

Wilwood Compact Combination Master Cylinder Kit 1 Inch Bore – Part Number 260-10375

Wilwood’s Compact Combination Master Cylinders have been designed for limited space applications requiring the output capacity of a full size master cylinder. The ultra short 3.37”compact body provides 2.16” of additional clearance between the mounting flange and the fluid outlet. A full 1.12” of piston stroke meets or exceeds the stroke capacity of most full size cylinders. With 1/8” NPT fluid outlet port located at the top radius of the cylinder bore, reduces the chances for trapped air. Enhanced fluid inlet port allows mounting of the standard reservoir included in kit and also contain 11/16-20 internal threads for custom reservoir arrangements. The black E-Coated aluminum body resists corrosion and maintains a durable long lasting finish.

The Wilwood Compact Combination Master Cylinder Kit with a 1-inch bore is designed for limited space applications without sacrificing performance. Its ultra-short 3.37-inch body provides an additional 2.16 inches of clearance between the mounting flange and the fluid outlet, making it ideal for tight engine bays or custom builds where space is at a premium. The piston offers a full 1.12 inches of stroke, ensuring reliable braking operation that meets or exceeds the stroke capacity of most full-size cylinders. The top-mounted 1/8-inch NPT fluid outlet port minimizes trapped air, enhancing brake system responsiveness and ease of bleeding.
Constructed from durable black E-coated aluminum, this master cylinder is resistant to corrosion and designed for longevity. The enhanced fluid inlet port accommodates the included standard reservoir, with additional internal threads (11/16-20) that allow for custom reservoir configurations. The compact design and high-quality construction make this Wilwood master cylinder suitable for a variety of automotive applications where space efficiency and reliable brake performance are critical. Whether upgrading an existing system or building a custom setup, this kit provides a dependable solution with excellent fluid control and durability.

Features:

• Ultra-short 3.37-inch body provides increased clearance for limited space applications

• Full 1.12-inch piston stroke for reliable brake actuation

• Top-mounted 1/8-inch NPT fluid outlet port reduces trapped air

• Black E-coated aluminum body offers corrosion resistance and durability

• Enhanced fluid inlet port supports standard reservoir and custom reservoir arrangements

Air Freight Prohibited: false
Not Carb Approved: false
Ltl Freight Required: false
Prop 65: Unknown
Part Type: automotive
Epa: N/A
Carb Acknowledgement Required: false
Regular Stock: t
Units Per Sku: 1
