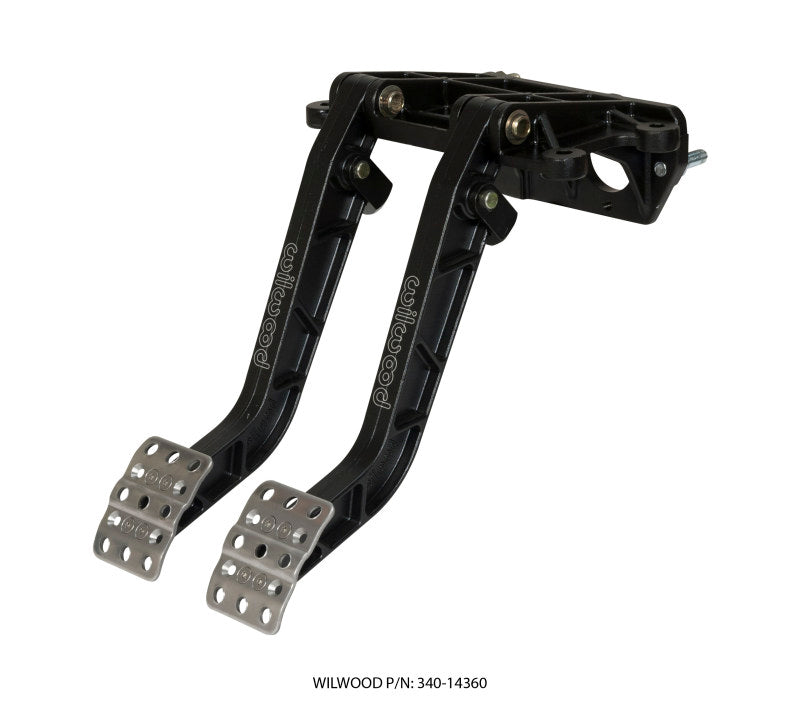

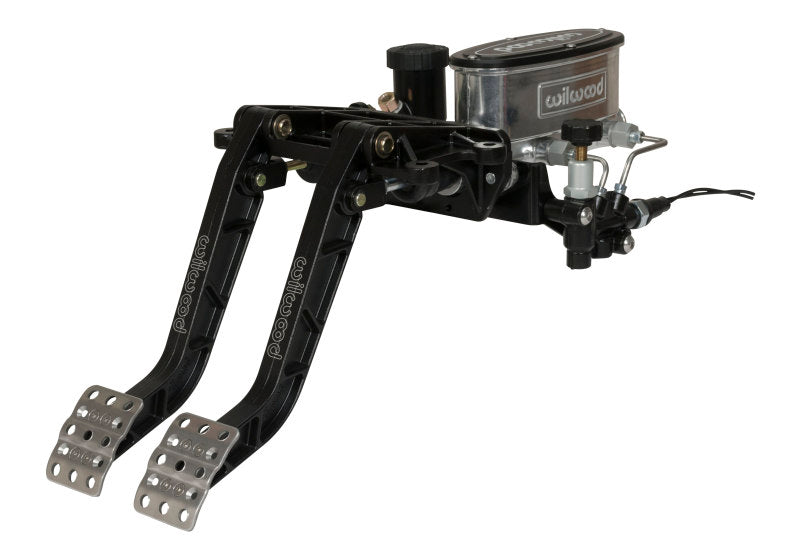

Wilwood Adjustable Tandem Dual Pedal Assembly with Forward Swing Mount, 6.25:1 Ratio - Black E-Coat

Wilwood's new Swing Mount Tandem Brake and Clutch Assembly simplifies installing a tandem outlet, single pushrod brake master cylinder in conjunction with a hydraulic clutch master cylinder in a forward position outside the firewall. It features a lightweight aluminum frame, with high strength reinforced I-Beam style forged pedal arms in either 6.25:1 or 7.00:1 ratios. The non-skid waffled pedal pads can be laterally adjusted for driver preference or clearance as necessary. Will fit most tandem cylinders available with 3.25 horizontal bolt spacing. Pedal base has additional mount points for vertical mount 2.50” spacing tandem master cylinders using 5/16-18 studs (not supplied with pedal assembly). Clutch master cylinder mount is also a 2.50” vertical mount and will use most popular single outlet cylinders.

The Wilwood adjustable tandem dual pedal assembly model 340-14360 offers a streamlined and reliable solution for mounting your brake and clutch systems in a forward position outside the firewall. Designed with a lightweight aluminum frame, this assembly features high-strength reinforced I-beam style forged pedal arms available in either 6.25:1 or 7.00:1 ratios, allowing for customizable pedal effort to suit your driving preferences. The non-skid waffled pedal pads are laterally adjustable, providing added comfort and clearance for the driver. This versatile pedal assembly is compatible with most tandem cylinders that have a 3.25-inch horizontal bolt spacing, making it suitable for a wide range of applications. The pedal base includes additional mounting points for vertical mount tandem master cylinders with a 2.50-inch spacing, utilizing 5/16-18 studs (not included). The clutch master cylinder mount also accommodates most popular single outlet cylinders with a 2.50-inch vertical mount, simplifying installation and ensuring reliable operation. Whether upgrading or building a custom vehicle, this assembly provides the durability and adjustability needed for high-performance brake and clutch systems. Crafted for ease of installation and long-term reliability, the Wilwood tandem pedal assembly is an ideal choice for automotive enthusiasts seeking a professional-grade solution with adjustable features for optimal comfort and performance.

Features:

• Lightweight aluminum frame for durability and reduced weight

• High-strength reinforced I-beam style forged pedal arms with 6.25:1 or 7.00:1 ratios

• Non-skid waffled pedal pads with lateral adjustment for driver preference

• Compatible with most tandem cylinders with 3.25-inch horizontal bolt spacing

• Additional mounting points for 2.50-inch vertical mount tandem master cylinders

• Clutch master cylinder mount suitable for most single outlet cylinders

• Forward swing mount design for easy outside-the-firewall installation

• Black E-coat finish for corrosion resistance and longevity

Air Freight Prohibited: false
Not Carb Approved: false
Ltl Freight Required: false
Prop 65: Unknown
Part Type: automotive
Epa: N/A
Carb Acknowledgement Required: false
Regular Stock: t
Units Per Sku: 1
