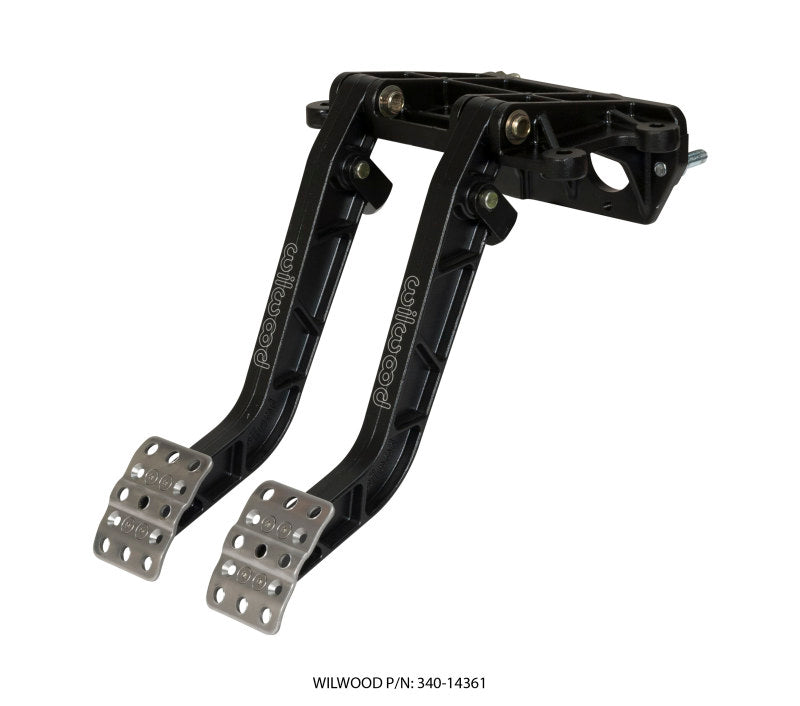

Wilwood Adjustable Tandem Dual Pedal Assembly - Brake and Clutch - Forward Swing Mount - 7.0:1 Ratio - Black E-Coat, Part #340-14361

Wilwood's new Swing Mount Tandem Brake and Clutch Assembly simplifies installing a tandem outlet, single pushrod brake master cylinder in conjunction with a hydraulic clutch master cylinder in a forward position outside the firewall. It features a lightweight aluminum frame, with high strength reinforced I-Beam style forged pedal arms in either 6.25:1 or 7.00:1 ratios. The non-skid waffled pedal pads can be laterally adjusted for driver preference or clearance as necessary. Will fit most tandem cylinders available with 3.25 horizontal bolt spacing. Pedal base has additional mount points for vertical mount 2.50” spacing tandem master cylinders using 5/16-18 studs (not supplied with pedal assembly). Clutch master cylinder mount is also a 2.50” vertical mount and will use most popular single outlet cylinders.

The Wilwood Adjustable Tandem Dual Pedal Assembly offers an efficient solution for installing a tandem outlet, single pushrod brake master cylinder alongside a hydraulic clutch master cylinder in a forward position outside the firewall. Crafted with a lightweight aluminum frame, this assembly combines durability with ease of installation, making it an ideal choice for custom automotive projects. The high-strength reinforced I-Beam style forged pedal arms are available with either a 6.25:1 or 7.0:1 ratio, providing customizable pedal effort to suit driver preferences and vehicle requirements. The non-skid waffled pedal pads are designed for secure foot placement and can be laterally adjusted to optimize clearance and comfort for the operator. This pedal assembly is compatible with most tandem cylinders that feature a 3.25-inch horizontal bolt spacing, ensuring broad applicability across various vehicle configurations. The pedal base includes additional mounting points for vertical mount tandem master cylinders with 2.50-inch spacing, accommodating most popular single outlet cylinders with ease. The clutch master cylinder mount also features a 2.50-inch vertical configuration, allowing for straightforward integration with a wide range of hydraulic clutch systems. With its robust construction and versatile mounting options, this assembly streamlines the installation process and enhances pedal feel and control for both braking and clutch operation. Suitable for performance and custom vehicles, the Wilwood Adjustable Tandem Dual Pedal Assembly is a reliable, high-quality component designed to meet demanding automotive needs.

Features:

• Lightweight aluminum frame for durability and ease of installation

• Reinforced I-Beam style forged pedal arms with 6.25:1 or 7.0:1 ratios for customizable pedal effort

• Non-skid waffled pedal pads with lateral adjustment for driver comfort and clearance

• Compatible with most tandem cylinders featuring 3.25-inch horizontal bolt spacing

• Additional mount points for vertical mount tandem master cylinders using 5/16-18 studs

• Clutch master cylinder mount designed for 2.50-inch vertical spacing, compatible with most single outlet cylinders

• Designed for forward swing mount installation outside the firewall for streamlined setup

• Black E-Coat finish for corrosion resistance and aesthetic appeal

Air Freight Prohibited: false
Not Carb Approved: false
Ltl Freight Required: false
Prop 65: Unknown
Part Type: automotive
Epa: N/A
Carb Acknowledgement Required: false
Regular Stock: t
Units Per Sku: 1
