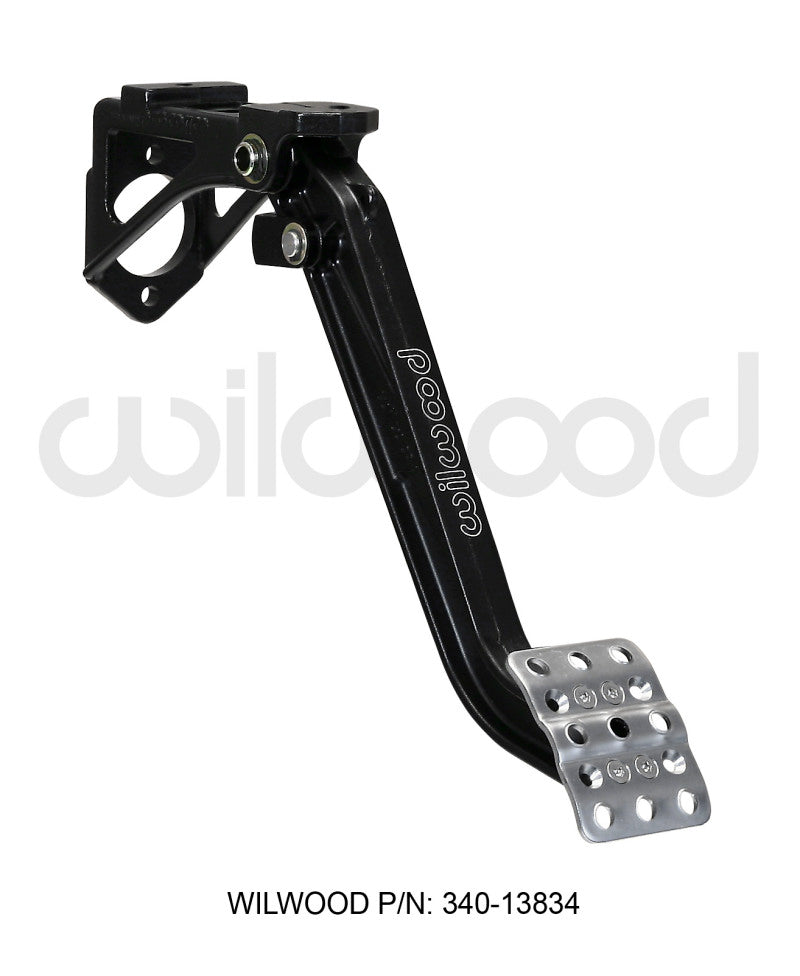

Wilwood Adjustable Single Pedal Swing Mount Assembly Part 340-13834 for Brake or Clutch Applications

This swinging mount pedal assembly mounts a single brake or clutch master cylinder in a forward position outside the firewall. It features a lightweight aluminum frame, with a high strength reinforced I-Beam style forged 7:1 ratio pedal Arm. The non-skid waffled pedal pad can be laterally adjusted for driver preference or clearance as necessary. This pedal accepts any Wilwood vertical mount flange single or tandem outlet master cylinder. Horizontal mount flange master cylinders require an adapter kit. Master cylinders are ordered separately by style and bore size.

The Wilwood adjustable single pedal swing mount assembly (Part No. 340-13834) offers a versatile and reliable solution for mounting a brake or clutch master cylinder in a forward position outside the firewall. Crafted with a lightweight aluminum frame, this pedal assembly ensures durability without adding unnecessary weight to your vehicle. The high-strength reinforced I-beam style forged 7:1 ratio pedal arm provides precise pedal feel and responsiveness, making it suitable for a range of automotive performance applications. The non-skid waffled pedal pad can be laterally adjusted to accommodate driver preferences or clearance requirements, enhancing comfort and control during operation. This assembly is compatible with any Wilwood vertical mount flange single or tandem outlet master cylinder, providing flexibility for various brake and clutch configurations. Please note that horizontal mount flange master cylinders require an adapter kit, which must be ordered separately based on your specific bore size and style. Designed for ease of installation and reliable performance, this assembly is an excellent choice for custom builds, restorations, or upgrades that demand quality components and precise control.

Features:

• Swing mount design allows for exterior firewall mounting in the forward position

• Lightweight aluminum frame reduces overall vehicle weight

• Reinforced I-beam style forged 7:1 ratio pedal arm for strength and responsiveness

• Non-skid waffled pedal pad for secure foot placement

• Lateral adjustment capability to fit driver preference or clearance needs

• Compatible with Wilwood vertical mount flange master cylinders, single or tandem outlet

Air Freight Prohibited: false
Not Carb Approved: false
Ltl Freight Required: false
Prop 65: Unknown
Part Type: automotive
Epa: N/A
Carb Acknowledgement Required: false
Regular Stock: t
Units Per Sku: 1
