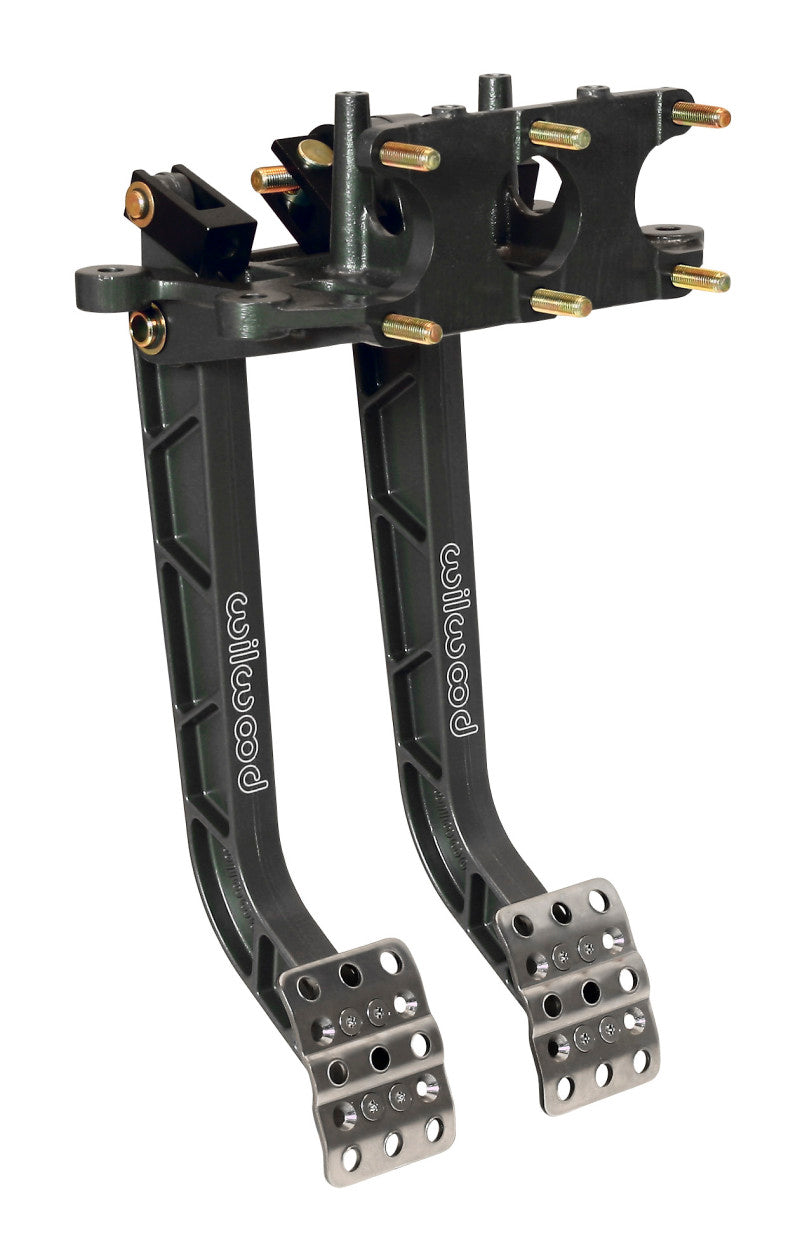

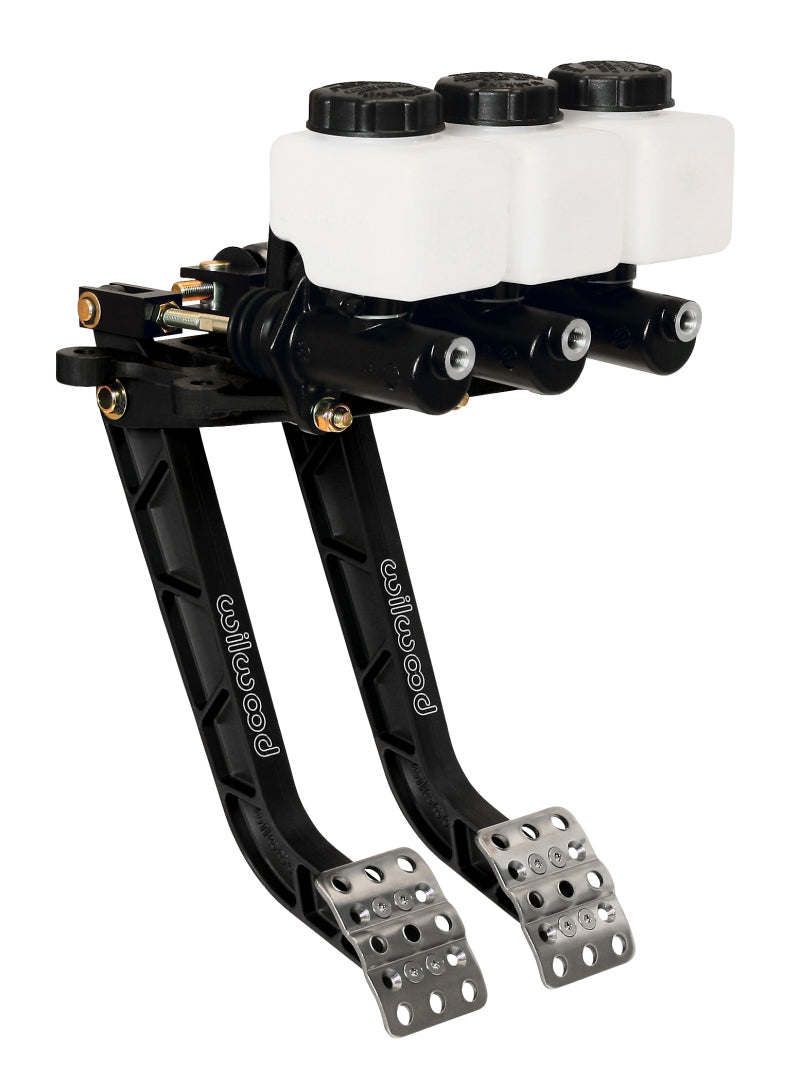

Wilwood Adjustable Dual Pedal Assembly for Brake and Clutch - Rev. Swing Mount with 6.25:1 Ratio, Part #340-11299

This swinging mount pedal assembly combines the brake and clutch pedals in one unit with the master cylinders in a reverse position inside the firewall. It features a lightweight aluminum frame, with high strength reinforced I-Beam style forged 6.25:1 ratio pedal arms. The non-skid waffled pedal pads can be laterally adjusted for driver preference or clearance as necessary. The balance bar incorporates a positive detent stop every full turn to maintain adjustment position and driver awareness. A pin and clevis pushrod attachment system provides highest possible degree of misalignment angle for bind free operation through the entire range of travel. The balance bar can be locked in place with the included jam nut, or used with an optional remote cable for quick on-track adjustments. This pedal accepts any Wilwood vertical mount flange single outlet master cylinders that are ordered separately by style and bore size.

The Wilwood Adjustable Dual Pedal Assembly (Part #340-11299) offers a comprehensive solution for performance vehicles requiring integrated brake and clutch controls. This unit features a lightweight aluminum frame designed for durability and reduced weight, making it ideal for race and high-performance applications. The high-strength reinforced I-Beam style forged pedal arms operate at a 6.25:1 ratio, providing precise pedal feel and efficient power transfer. The non-skid waffled pedal pads are designed for driver comfort and can be laterally adjusted to suit individual preferences or clearance needs, ensuring optimal positioning for every driver. The assembly's innovative design positions the master cylinders inside the firewall in a reverse setup, optimizing space and functionality within the vehicle's cockpit. The included balance bar incorporates a positive detent stop every full turn, maintaining consistent adjustment and enhancing driver awareness during operation. The pushrod attachment system, featuring a pin and clevis design, permits a high degree of misalignment angle, ensuring bind-free operation across the entire range of pedal travel. For quick adjustments during track sessions, the balance bar can be locked with the included jam nut or used with an optional remote cable for on-the-fly tuning. This pedal assembly is compatible with any Wilwood vertical mount flange single outlet master cylinders, which are sold separately based on style and bore size, offering flexibility for various setups and preferences.

Air Freight Prohibited: false
Not Carb Approved: false
Ltl Freight Required: false
Prop 65: Unknown
Part Type: automotive
Epa: N/A
Carb Acknowledgement Required: false
Regular Stock: t
Units Per Sku: 1
