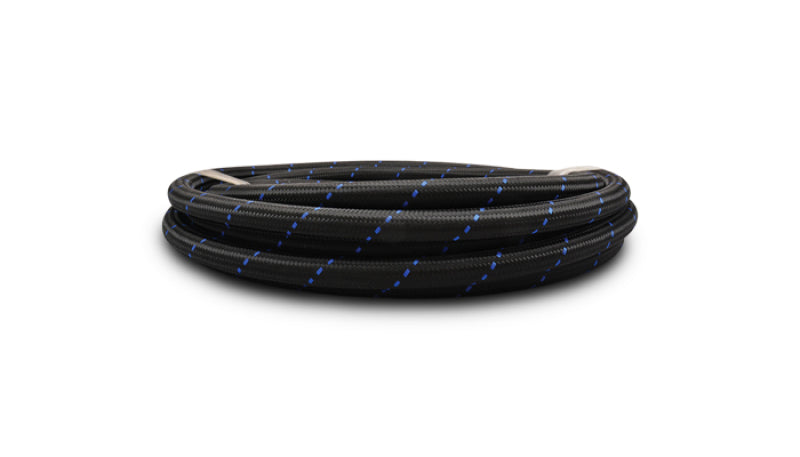

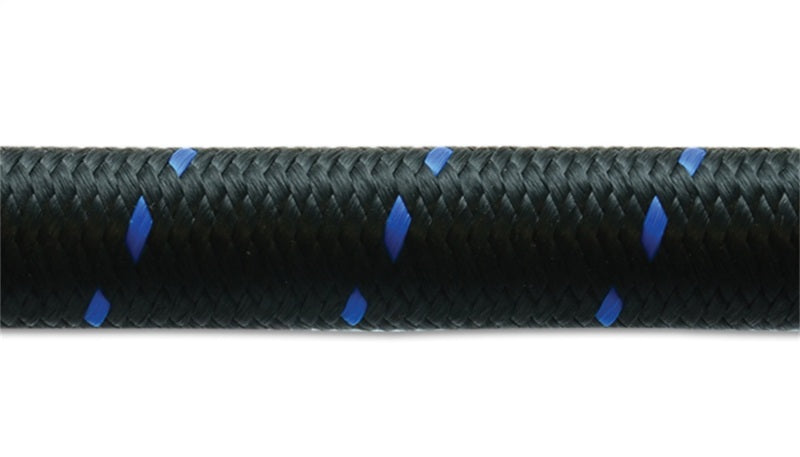

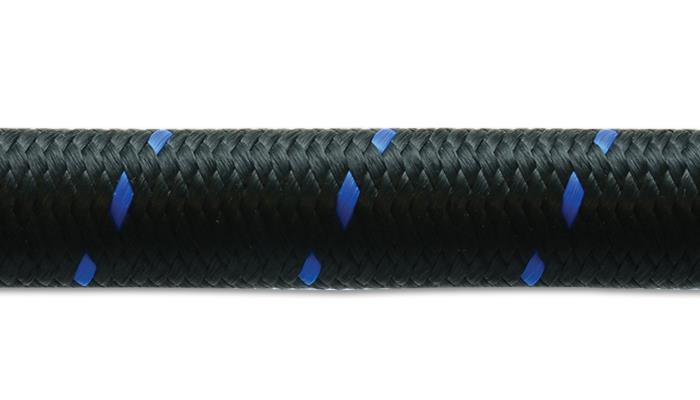

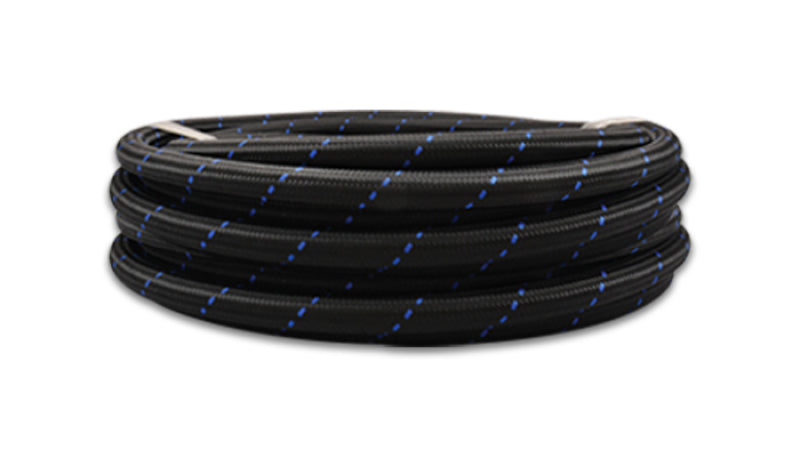

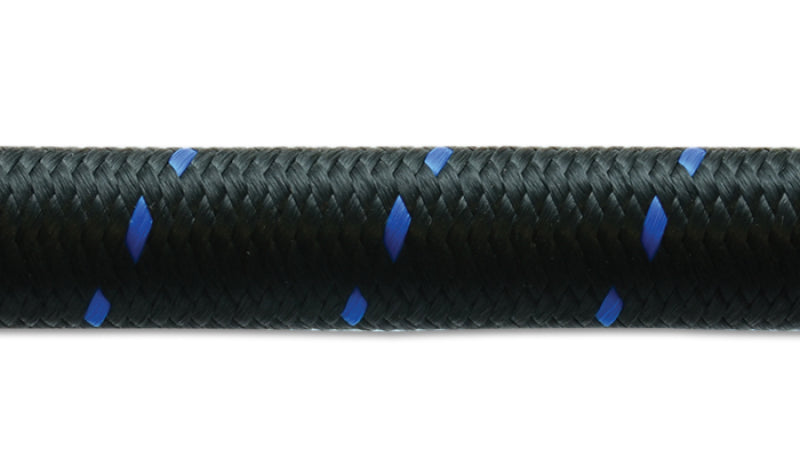

Vibrant -8 AN Two-Tone Black/Blue Nylon Braided Flex Hose (20 Foot Roll)

Vibrant Performance Braided Flex Hoses are available in Stainless Steel and Nylon braided covers which provide excellent abrasion resistance and surrounds a reinforced CPE synthetic rubber inner liner. Our Braided Flex Hoses are suitable for oil, water, fuel, coolant and vacuum service. Also suitable for E85 and methanol use but fumes will permeate through this type of hose when fuel is left stagnant for long periods of time. See our PTFE Flex Hose for extended E85 and methanol use. These hoses are NOT suitable for use as brake lines or other hydraulic pressure lines, nor are they suited for extended submersion in fuel or oil (not recommended for in-tank applications). Operating temperature range: -40 Degrees F to 300 Degrees F (-40 Degrees C to 150 Degrees C). Nylon Braided Flex Hose; -8AN; 0.4375 in. Hose ID; 0.6875 in. Hose OD; 500 PSI Operating Pressure; 2000 PSI BP; 20ft. Roll; Black/Blue; Universal application

• One Year Limited Warranty
• Synthetic Rubber/Nylon

The Vibrant -8 AN Nylon Braided Flex Hose offers a reliable and versatile solution for automotive fluid transfer applications. Constructed with a reinforced CPE synthetic rubber inner liner and encased in durable nylon braiding, this hose provides excellent abrasion resistance and flexibility for a variety of uses. Its black and blue two-tone appearance makes it suitable for both performance and custom vehicle builds. Designed to handle oil, water, fuel, coolant, and vacuum services, this hose is rated for a maximum operating pressure of 500 PSI and a burst pressure of 2000 PSI, ensuring safety and durability during high-performance operations. The hose's operating temperature range spans from -40°F to 300°F (-40°C to 150°C), allowing it to perform reliably under extreme conditions. This 20-foot roll is ideal for custom installations, providing ample length for complex routing and multiple connections. The Vibrant Nylon Braided Flex Hose is not compatible with brake systems or hydraulic pressure lines, nor is it suitable for prolonged submersion in fuel or oil, especially in in-tank applications. It is also compatible with E85 and methanol fuels but may allow fumes to permeate if fuel remains stagnant for extended periods. For extended E85 and methanol use, consider the PTFE Flex Hose option. Each hose features a -8 AN size with a 0.4375-inch inner diameter and a 0.6875-inch outer diameter, making it suitable for many automotive plumbing setups. The product is backed by a one-year limited warranty and is manufactured with high-quality synthetic rubber and nylon materials, ensuring longevity and dependable performance in demanding conditions.

Features:

• Reinforced CPE synthetic rubber inner liner for durability

• Nylon braided cover provides excellent abrasion resistance

• Rated for up to 500 PSI operating pressure and 2000 PSI burst pressure

• Ideal for oil, water, fuel, coolant, and vacuum applications

• Operates within a temperature range of -40°F to 300°F (-40°C to 150°C)

• Black and blue two-tone design for aesthetic appeal

• 20-foot length for flexible installation and routing

• Not suitable for brake or hydraulic pressure lines

• Compatible with E85 and methanol fuels, with limitations

• Covered by a one-year limited warranty

Air Freight Prohibited: false
Not Carb Approved: false
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: N/A
Carb Acknowledgement Required: false
Regular Stock: t
Units Per Sku: 1
