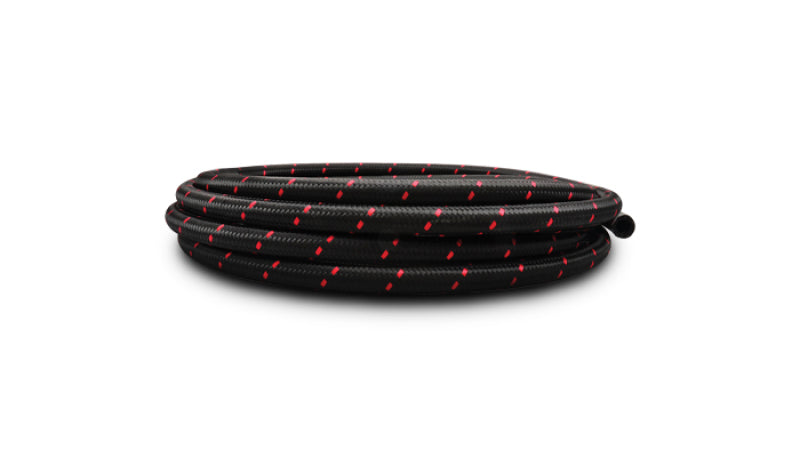

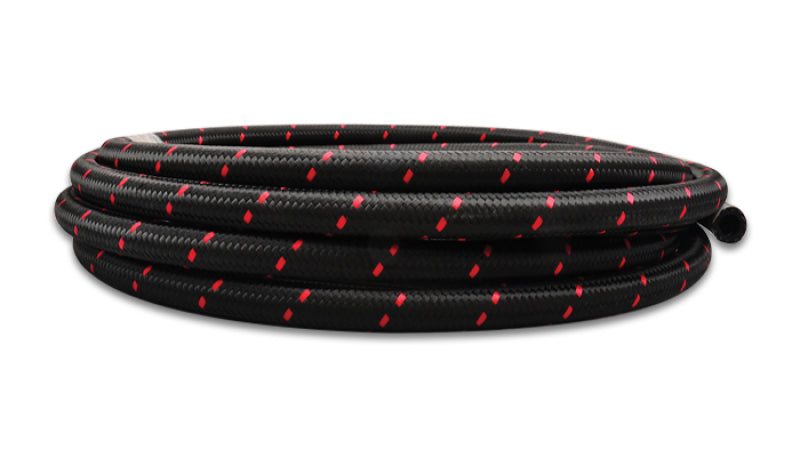

Vibrant -12 AN Nylon Braided Flex Hose (5 Foot Roll) with Reinforced CPE Rubber Inner Liner

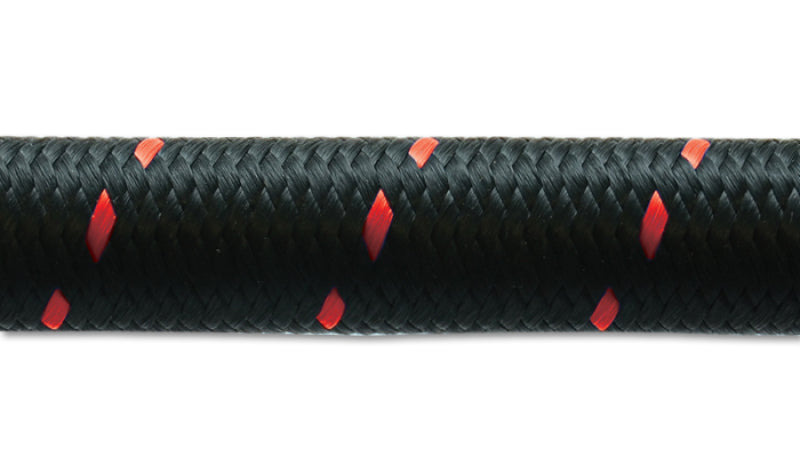

Vibrant Performance Braided Flex Hoses are available in Stainless Steel and Nylon braided covers which provide excellent abrasion resistance and surrounds a reinforced CPE synthetic rubber inner liner. Our Braided Flex Hoses are suitable for oil, water, fuel, coolant and vacuum service. Also suitable for E85 and methanol use but fumes will permeate through this type of hose when fuel is left stagnant for long periods of time. See our PTFE Flex Hose for extended E85 and methanol use. These hoses are NOT suitable for use as brake lines or other hydraulic pressure lines, nor are they suited for extended submersion in fuel or oil (not recommended for in-tank applications). Operating temperature range: -40 Degrees F to 300 Degrees F (-40 Degrees C to 150 Degrees C). Nylon Braided Flex Hose; -12AN; 0.6875 in. Hose ID; 0.9375 in. Hose OD; 350 PSI Operating Pressure; 1400 PSI BP; 5ft. Roll; Black/Red;

• One Year Limited Warranty
• Synthetic Rubber/Nylon

The Vibrant -12 AN Nylon Braided Flex Hose offers reliable performance for automotive fluid transfer applications. Featuring a durable nylon braided cover combined with a reinforced CPE synthetic rubber inner liner, this hose provides excellent abrasion resistance and durability under demanding conditions. Ideal for oil, water, fuel, coolant, and vacuum services, it is suitable for use with E85 and methanol fuels, although prolonged stagnant fuel may cause fumes to permeate. For extended E85 and methanol use, consider our PTFE Flex Hose designed for such environments. This versatile hose is not suitable for brake lines, hydraulic pressure lines, or extended submersion in fuel or oil, making it best suited for above-ground connections. Operating within a temperature range of -40°F to 300°F, it maintains flexibility and integrity across diverse conditions. The hose's specifications include a 0.6875-inch inner diameter, 0.9375-inch outer diameter, a working pressure of 350 PSI, and a burst pressure of 1400 PSI. Each 5-foot roll is designed for ease of installation and reliable performance in automotive applications. Backed by a one-year limited warranty, the Vibrant -12 AN Nylon Braided Flex Hose ensures quality and durability for your vehicle's fluid transfer needs. It is constructed from synthetic rubber and nylon, providing a balance of flexibility and strength. This product is suitable for standard automotive use and is available for immediate purchase to support your vehicle’s maintenance and upgrade projects.

Features:

• Nylon braided cover provides excellent abrasion resistance

• Reinforced CPE synthetic rubber inner liner for durability

• Suitable for oil, water, fuel, coolant, and vacuum service

• Compatible with E85 and methanol fuels, with limitations

• Operating temperature range from -40°F to 300°F

• Inner diameter of 0.6875 inches and outer diameter of 0.9375 inches

• Maximum operating pressure of 350 PSI and burst pressure of 1400 PSI

• 5-foot roll length for versatile installation

• Backed by a one-year limited warranty

• Constructed from synthetic rubber and nylon for flexibility and strength

Air Freight Prohibited: false
Not Carb Approved: false
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: N/A
Carb Acknowledgement Required: false
Regular Stock: t
Units Per Sku: 1
