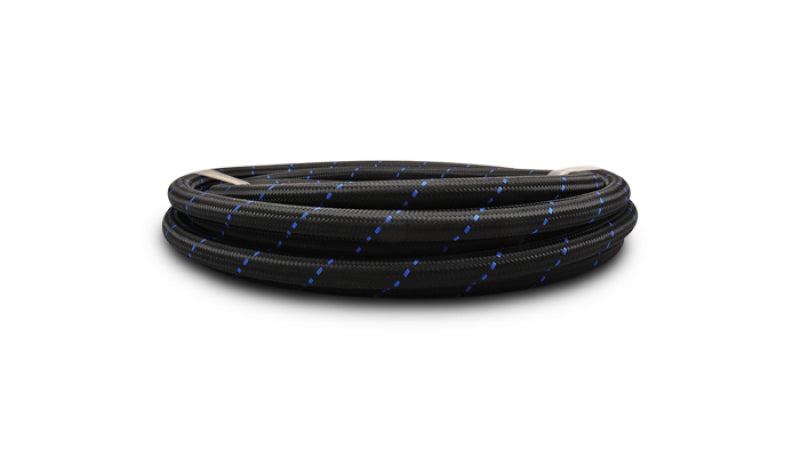

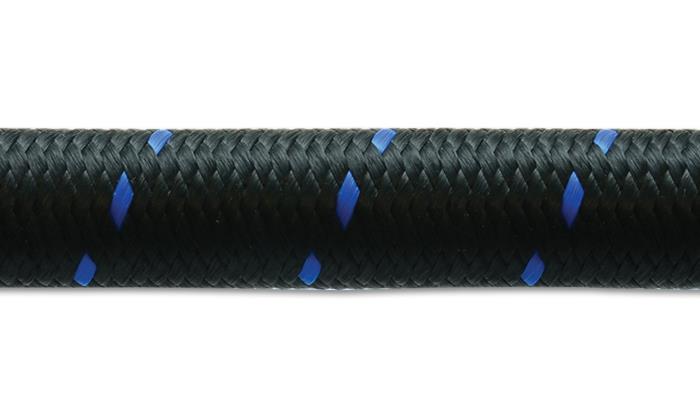

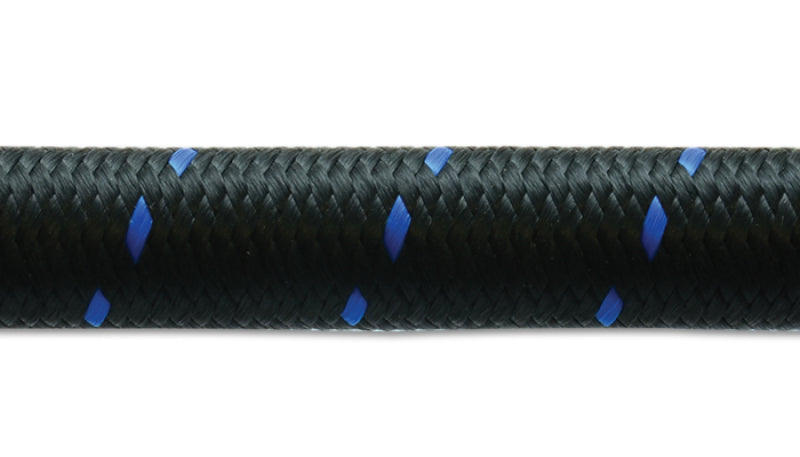

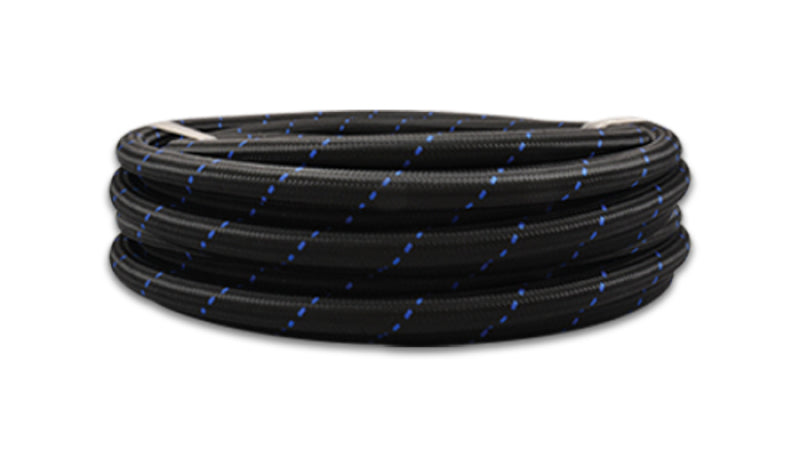

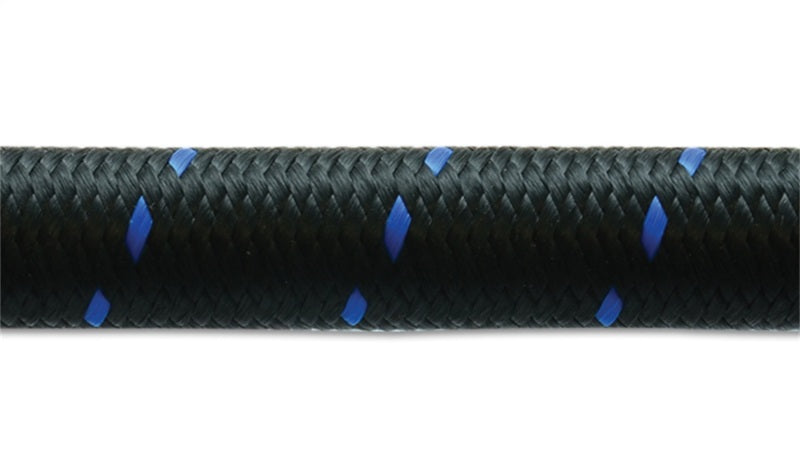

Vibrant -10 AN Nylon Braided Flex Hose (5 ft) with Reinforced CPE Inner Liner

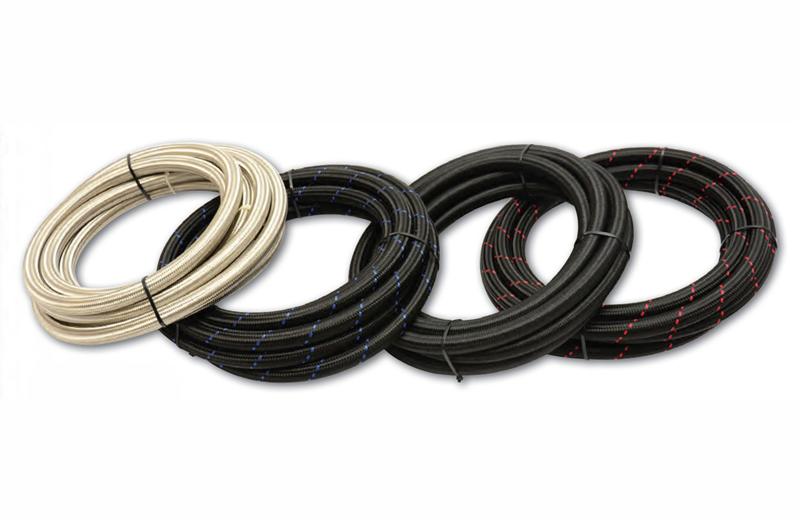

Vibrant Performance Braided Flex Hoses are available in Stainless Steel and Nylon braided covers which provide excellent abrasion resistance and surrounds a reinforced CPE synthetic rubber inner liner. Our Braided Flex Hoses are suitable for oil, water, fuel, coolant and vacuum service. Also suitable for E85 and methanol use but fumes will permeate through this type of hose when fuel is left stagnant for long periods of time. See our PTFE Flex Hose for extended E85 and methanol use. These hoses are NOT suitable for use as brake lines or other hydraulic pressure lines, nor are they suited for extended submersion in fuel or oil (not recommended for in-tank applications). Operating temperature range: -40 Degrees F to 300 Degrees F (-40 Degrees C to 150 Degrees C). Nylon Braided Flex Hose; -10AN; 0.5625 in. Hose ID; 0.828 in. Hose OD; 500 PSI Operating Pressure; 2000 PSI BP; 5ft. Roll; Black/Blue;

• One Year Limited Warranty
• Synthetic Rubber/Nylon

The Vibrant -10 AN Nylon Braided Flex Hose offers a reliable solution for fuel, water, oil, coolant, and vacuum applications in automotive systems. Constructed with a reinforced CPE synthetic rubber inner liner and surrounded by a durable nylon braided cover, this hose provides excellent abrasion resistance and flexibility. Its black and blue two-tone design not only enhances the aesthetic appeal but also ensures high performance in demanding environments. Suitable for use with E85 and methanol fuels, it is engineered to withstand operating temperatures from -40°F to 300°F (-40°C to 150°C), making it ideal for a wide range of automotive and racing applications. It is important to note that these hoses are not intended for use as brake lines or hydraulic pressure lines and are not suitable for extended submersion in fuel or oil, especially in in-tank applications. The hose features a 0.5625-inch inner diameter, 0.828-inch outer diameter, and is rated for 500 PSI operating pressure with a 2000 PSI burst pressure, ensuring durability and safety under pressure. Each 5-foot roll is designed for easy installation and versatility across various automotive systems. Vibrant offers a one-year limited warranty on this product, providing peace of mind with its quality and durability. This hose is compliant with Prop 65 standards, reflecting its adherence to safety regulations. Ideal for custom fuel systems, turbo setups, or high-performance vehicles, this nylon braided flex hose combines strength, flexibility, and aesthetic appeal to meet the demands of professional and enthusiast applications alike.

Features:

• Reinforced CPE synthetic rubber inner liner for durability and chemical resistance

• Nylon braided cover providing excellent abrasion protection and aesthetic appeal

• Rated for fuel, water, oil, coolant, and vacuum service

• Suitable for E85 and methanol fuels with consideration for fumes during stagnation

• Operating temperature range from -40°F to 300°F (-40°C to 150°C)

• 0.5625-inch inner diameter and 0.828-inch outer diameter for versatile installation

• Rated for 500 PSI operating pressure with a 2000 PSI burst strength

• 5-foot length roll for easy handling and installation

• Black and blue two-tone design for a professional look

• Not suitable for brake lines or hydraulic pressure applications

Air Freight Prohibited: false
Not Carb Approved: false
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: N/A
Carb Acknowledgement Required: false
Regular Stock: t
Units Per Sku: 1
