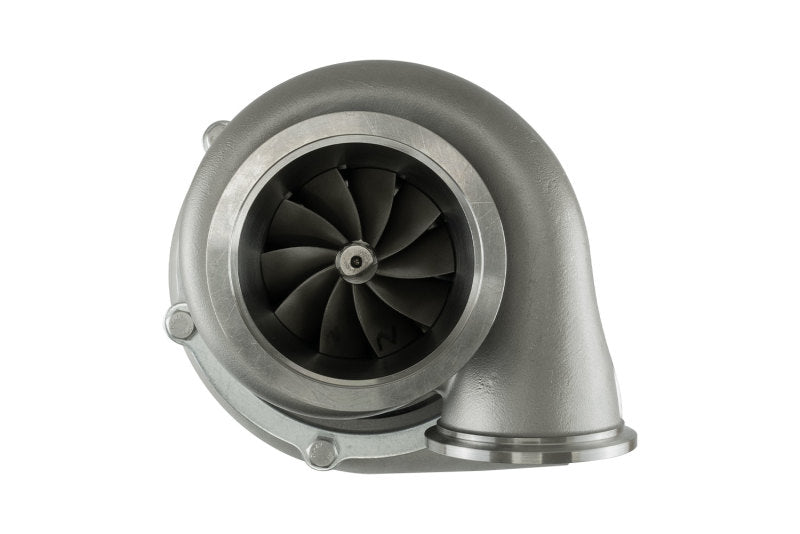

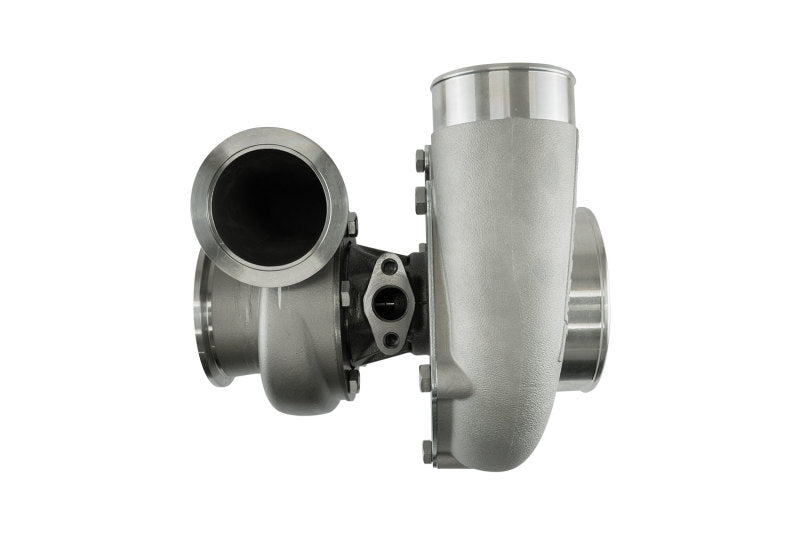

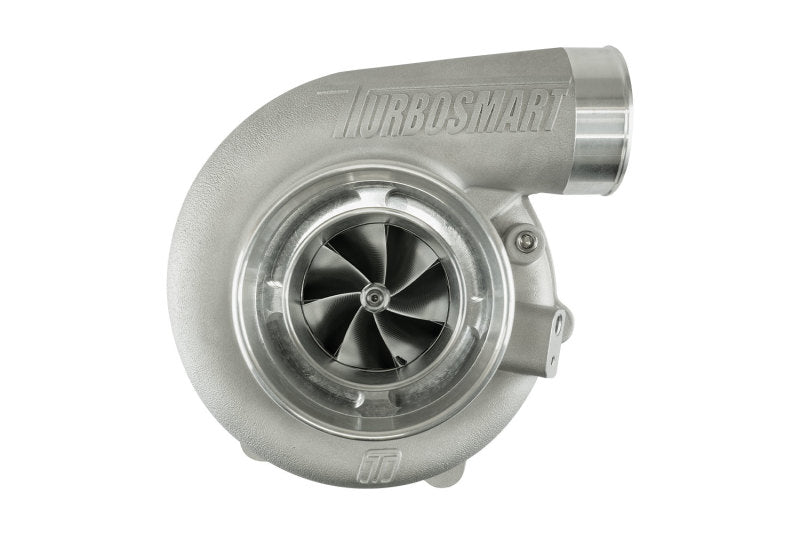

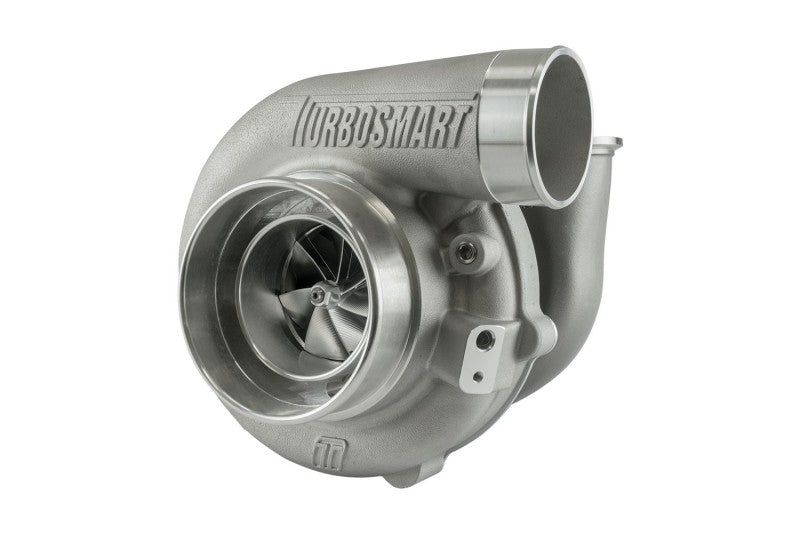

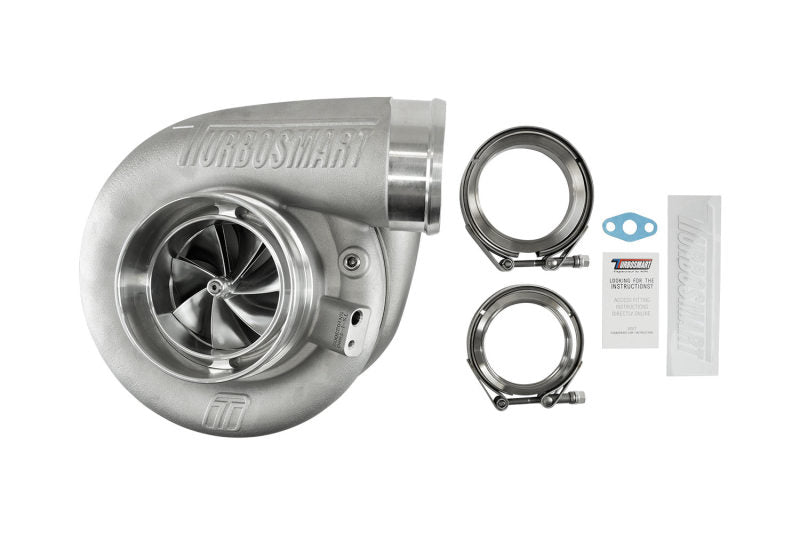

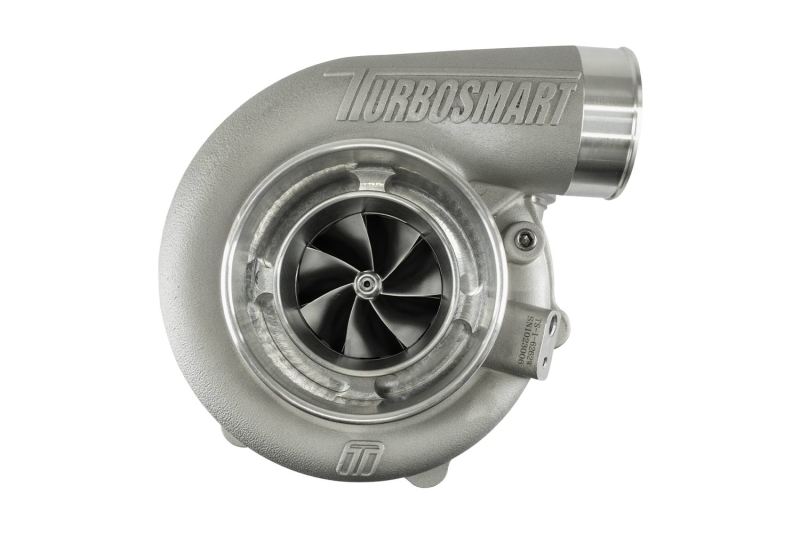

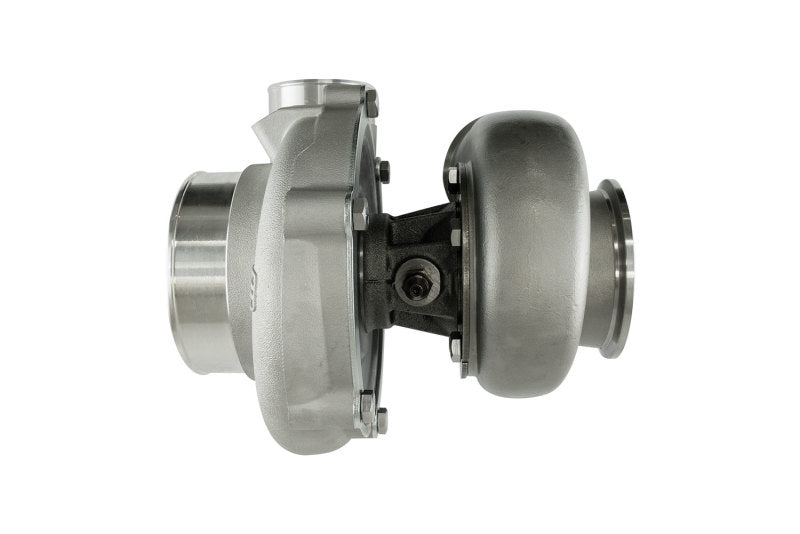

Turbosmart TS-1-6870B-VB096E Oil Cooled Turbocharger with V-Band Inlet/Outlet and External Wastegate

Smaller, Lighter and Faster - The Turbosmart TS-1 turbocharger series has been developed to leverage modern materials, design and manufacturing techniques to create a Turbocharger range that meets the demands of both Motorsport, and performance enthusiasts alike.

• Lightweight 310s stainless steel investment cast turbine housings
• CFD driven designed housings for optimal AR's and flow
• Aggressive aerodynamics with 7+7 splitter wheels
• T14 Inconel turbine wheel for extreme EGT's
• Integrated Iron backplate on center housing
• Lightweight, Aluminum compressor covers
• Proprietary dual ceramic bearing system
• Unparalleled transient response
• VSR speed balanced

The Turbosmart TS-1-6870B-VB096E turbocharger is engineered for high-performance applications, combining advanced materials and innovative design to deliver superior power and responsiveness. Featuring lightweight 310 stainless steel investment cast turbine housings, this turbocharger ensures durability while minimizing weight. The CFD-driven design optimizes air flow and exhaust flow characteristics, resulting in improved efficiency and spool times. Equipped with aggressive 7+7 splitter wheels, the turbine provides exceptional aerodynamics, contributing to rapid spool and high boost capabilities. The T14 Inconel turbine wheel withstands extreme exhaust gas temperatures, making it suitable for demanding motorsport environments. An integrated iron backplate on the center housing enhances structural integrity, while lightweight aluminum compressor covers reduce overall mass for faster response. The proprietary dual ceramic bearing system ensures smooth operation and reduces friction, leading to unparalleled transient response and quick throttle response. The VSR speed-balanced design guarantees consistent performance under varying operating conditions. This turbocharger is ideal for performance enthusiasts looking to maximize their vehicle's power output, offering a combination of durability, efficiency, and rapid response. Note that this product is not CARB approved and requires acknowledgment of compliance considerations during installation. The Turbosmart TS-1 series is suitable for a range of high-performance automotive applications, providing reliable, race-ready boosting performance with a focus on durability and efficiency.

Features:

• Lightweight 310 stainless steel investment cast turbine housings for durability and reduced weight

• CFD-driven designed housings optimize airflow and exhaust flow for improved efficiency

• Aggressive 7+7 splitter wheels enhance aerodynamics and boost response

• T14 Inconel turbine wheel withstands extreme exhaust gas temperatures for demanding environments

• Integrated iron backplate on center housing adds structural strength

• Lightweight aluminum compressor covers reduce overall turbo weight

• Proprietary dual ceramic bearing system ensures smooth and reliable operation

• Unparalleled transient response for quick throttle reaction

• VSR speed balanced for consistent high-performance output

Air Freight Prohibited: false
Not Carb Approved: true
Carb Acknowledgement Required: true
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: N/A
Regular Stock: false
Units Per Sku: 1
