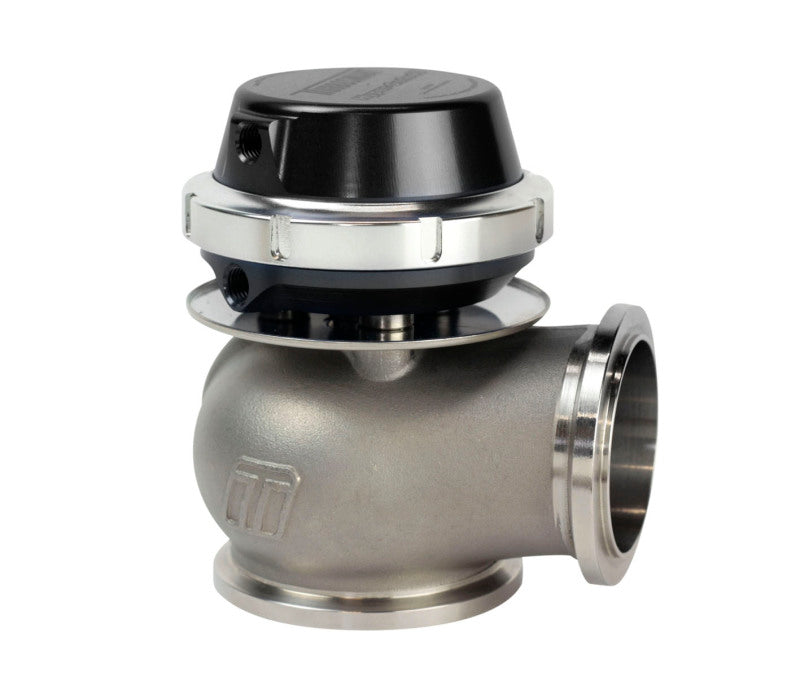

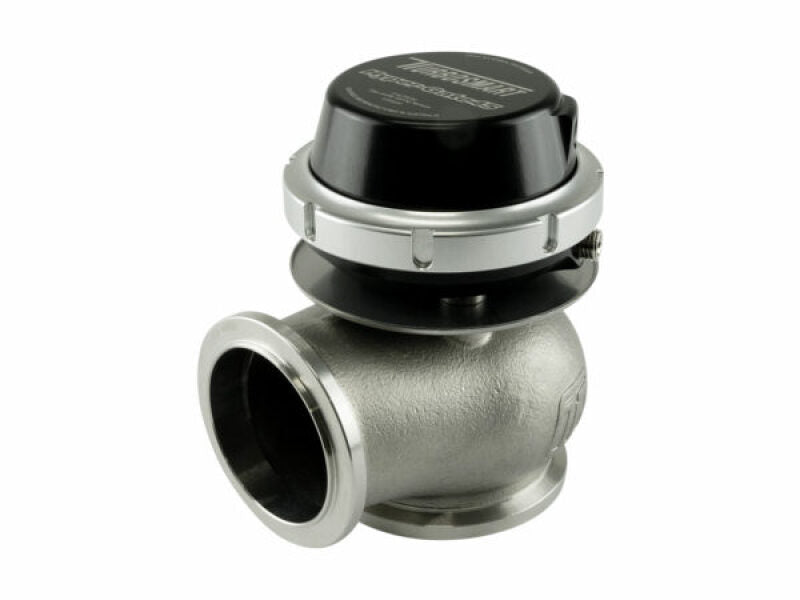

Turbosmart Hyper-Gate45 45mm External Wastegate with Stainless Steel Valve and V-Band Inlet/Outlet

IT'S BACK. The Gen4 CompGate40 and HyperGate45 have been approved for continuation and re-introduction at an all-new price! The Turbosmart Hyper-Gate45 is a 45mm external wastegate designed with minimum size and maximum flow in mind.

• Stainless Steel cast body & Aluminum actuator housing
• V-Band inlet & outlet to suit 44/46mm peer fitment
• It can be fitted with springs from 3 to 26psi
• Proprietary high-temp silicon Nomex diaphragm
• Solid piece Stainless Steel valve
• Twin 1/16" NPT reference ports
• Unique locking collar design

The Turbosmart Hyper-Gate45 is a high-performance 45mm external wastegate engineered to deliver maximum flow with minimal size. Constructed with a stainless steel cast body and aluminum actuator housing, this wastegate offers durability and resistance to high temperatures. The V-band inlet and outlet are designed to fit 44/46mm peer connections, ensuring a secure and efficient connection for your turbocharging setup. The Hyper-Gate45 can be fitted with springs ranging from 3 to 26 psi, allowing for versatile boost control tailored to your specific application. Its proprietary high-temperature silicon Nomex diaphragm maintains reliable operation under extreme conditions, while the solid stainless steel valve ensures longevity and consistent performance. Twin 1/16" NPT reference ports facilitate precise pressure monitoring and adjustment, and the unique locking collar design provides secure and easy installation for a variety of setups. Suitable for professional and enthusiast applications, this wastegate is an excellent choice for those seeking reliable boost control without compromising size or flow capacity.

Features:

• Stainless Steel cast body and aluminum actuator housing for durability

• V-band inlet and outlet compatible with 44/46mm peer fitment

• Spring range from 3 to 26 psi for customizable boost control

• High-temperature silicon Nomex diaphragm for extreme conditions

• Solid stainless steel valve for longevity and reliability

• Twin 1/16" NPT reference ports for precise pressure monitoring

• Unique locking collar design for secure installation

Air Freight Prohibited: false
Not Carb Approved: true
Carb Acknowledgement Required: true
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: N/A
Regular Stock: t
Units Per Sku: 1
